Trim And Tilt

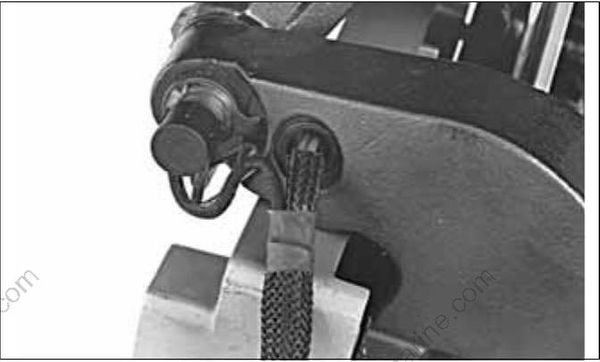

Place trim/tilt wires in braided tube and install through hole in the stern bracket.
Release the tilt support and lower the outboard. Tighten the manual release valve to a torque of 45 to 55 in. lbs. (5.1 to 6.2 N•m).
Install connector on trim/tilt cable and reconnect trim connectors to engine wire harness.
Install lower engine cover. Refer to LOWER COVER SERVICE on p. 82.
ADJUSTMENTS
Refer to Trim Sending Unit Adjustment on p. 61.
Refer to Tilt Limit Switch Adjustment on p. 60.
