SHIFT ROD ADJUSTMENT

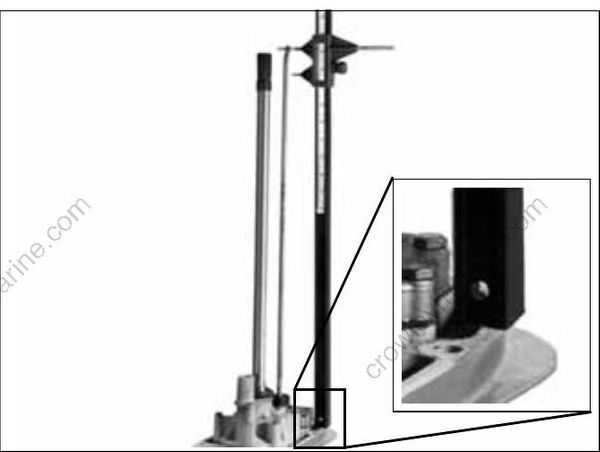

Check the shift rod height from the shift rod hole to the surface of the gearcase using Universal Shift Rod Height Gauge, P/N 389997.
COA6166
With the gearcase in NEUTRAL, rotate the shift rod up or down as necessary for correct adjustment. Once correct height is achieved, rotate rod one half turn or less to direct offset forward.
IMPORTANT: The NEUTRAL detent is a two step design. Make sure the NEUTRAL detent ball is in the center step before checking shift rod height.
Shift Rod Heights
| Model | Type | Height |
|---|---|---|
| 20 in. (L) | “S” | 21.25 in. ± One-Half Turn |
| 25 in. (X) | “O” | 26.25 in. ± One-Half Turn |
