Service Manual 75-90 HP E-TEC Fuel System [Fuel System Hose Routing]

Related Products:
added updated
Service Manual 75-90 HP E-TEC Fuel System [Fuel System Hose Routing]
5007527
BRP Marine

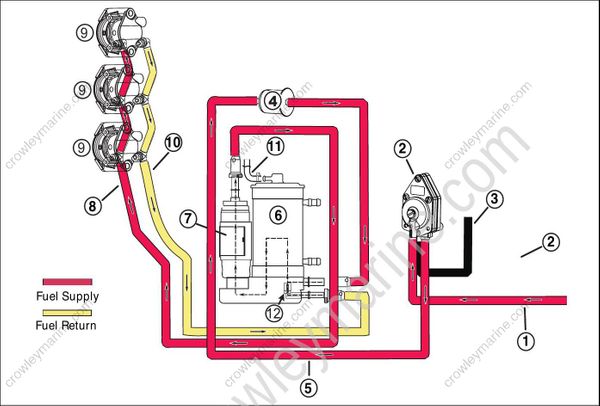

FUEL SYSTEM HOSE ROUTING

  1. Fuel supply from boat fuel system
  2. Fuel lift pump (2 to 8 psi)
  3. Pulse hose from cylinder/crankcase
  4. Fuel filter
  5. Fuel supply to vapor separator
  6. Vapor separator
  7. Electric fuel circulation pump (20 to 30 psi)
  8. Fuel supply manifold
  9. Fuel injector(s)
  10. Fuel return manifold
  11. Vent hose to intake manifold
  12. Pressure regulator (high pressure)
