Service Manual 75-90 HP E-TEC Electrical And Ignition [Ignition System Circuit Diagram, 75-90 Hp]

Related Products:
added updated
Service Manual 75-90 HP E-TEC Electrical And Ignition [Ignition System Circuit Diagram, 75-90 Hp]
5008148
BRP Marine

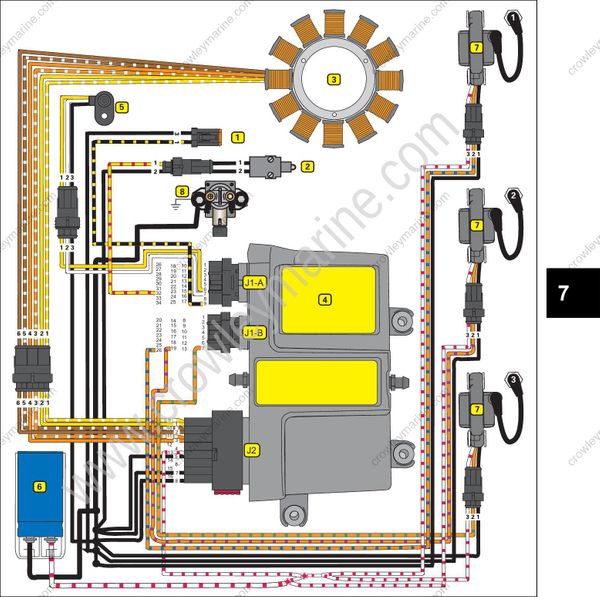

IGNITION SYSTEM CIRCUIT DIAGRAM, 75 – 90 HP

  1. Key switch (stop circuit)
  2. Neutral switch
  3. Stator
  4. EMM
  5. Crankshaft position sensor
  6. Capacitor
  7. Ignition coil
  8. Main harness ground
