Clamp Identification
Use Oetiker clamps for making hose connections. These clamps provide corrosion resistance, minimize the potential for abrasion of rigging components, and provide solid, permanent connections.
The selection and installation of an Oetiker clamp is essential in the proper sealing of hose connections. The clamp identification numbers appear on the side of the clamp, near the top of the ear. Refer to Clamp Selection chart for dimensions.
DO NOT re-use Oetiker clamps. Fuel leakage could contribute to a fire or explosion.

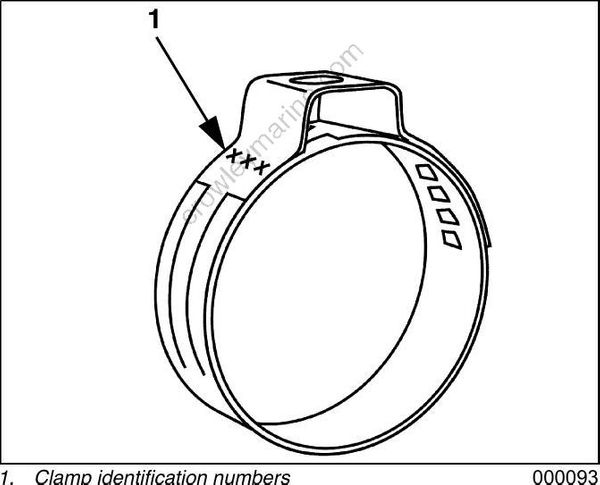

- Clamp identification numbers 000093

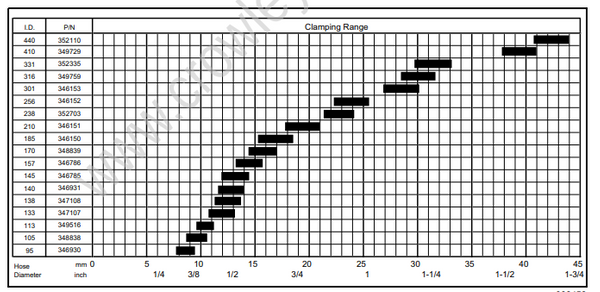

Clamp Selection
To select the correct size Oetiker clamp, measure the outside diameter of the hose when installed on the fitting.
Chose a clamp so that the outside diameter of the hose is approximately in the middle of the clamping range of the clamp.
008458
Clamp Installation
A constant stress should be applied to close the ear clamps. This method ensures a positive stress on the hose and does not result in excessive compression or expansion of the band material.
IMPORTANT: Use only Oetiker recommended tools to close Oetiker stepless clamps. Oetiker pincers are available in the Evinrude/ Johnson Genuine Parts and Accessories Catalog
DP0886
Position correct size clamp over hose.
• Install hose on fitting.

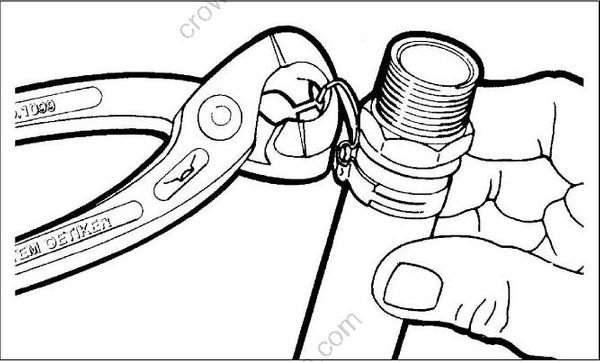

• Close clamp ear fully with Oetiker pincers (pliers).
- Open clamp
- Closed clamp
000092
Clamp Removal

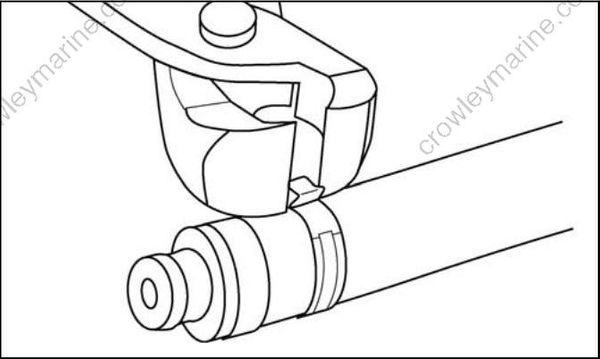

Method 1: Position Oetiker pincers across clamp ear and cut clamp.
|000108

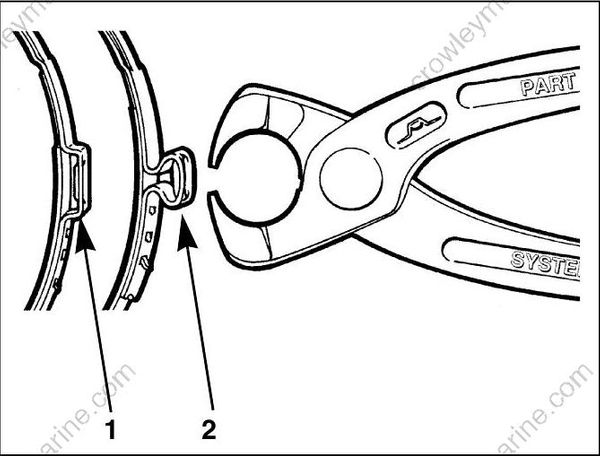

Method 2: Lift end of stepless clamp with screwdriver.
000090

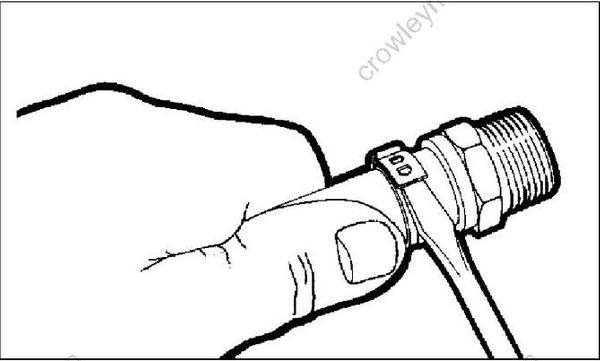

Method 3: Use Oetiker pincers (pliers) to grip clamp. Pull clamp off of connection and discard
000091
