COMPRESSION TESTING
Start and run outboard until it achieves operating temperature, then shut OFF.
Disconnect crankshaft position sensor (CPS) connector. Remove all spark plugs. Advance throttle linkage to WOT.
Install compression tester’s hose attachment into spark plug hole (14 mm threads).
While cranking outboard with starter, note maxi mum pressure reading on gauge. Repeat proce dure for each cylinder.
If engine shows a variation greater than 15 psi (100 kPa) between cylinders, check for:
• damaged cylinder head
• damaged pistons
• broken or stuck piston rings
• scored cylinder walls
Return throttle to idle position and reconnect CPS connector. Replace spark plugs. Refer to Spark Plug Indexing on p. 46.
POWERHEAD REMOVAL
2-Cylinder Models
Protect against hazardous fuel spray. Before starting any fuel system service, carefully relieve fuel system pressure. Refer to Relieving Fuel System Pressure on p. 146. To prevent accidental starting while servicing, twist and remove spark plug leads.
Remove lower motor covers. Refer to Lower Cover Removal on p. 54.
Disconnect power trim connectors and exhaust water valve electrical connector (60, 65).
- Connectors 008429

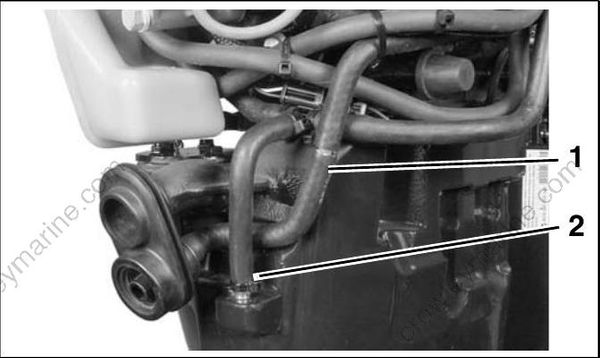

Disconnect cooling water hoses from exhaust housing.
- Overboard indicator hose
- Drain hose
004298
