Service Manual 5009005_40-60 AA-AF - 75-90 AA-AE Engine Managment Module [Emm Inputs And Outputs Diagram]
5009005
BRP Marine

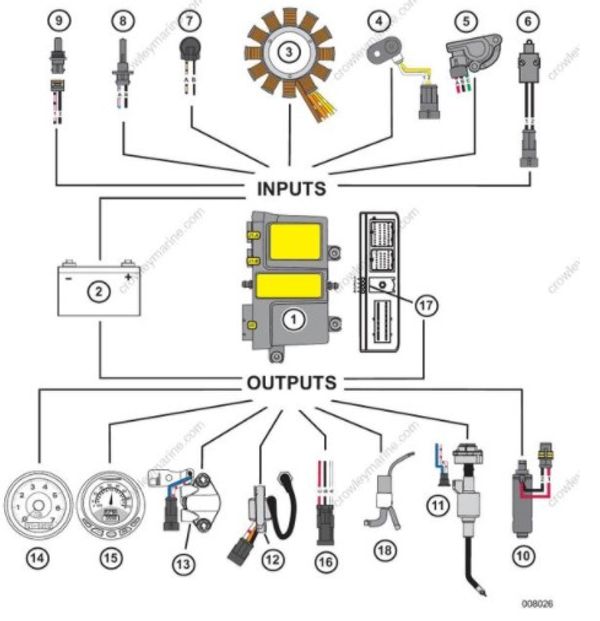

Step 1: EMM INPUTS AND OUTPUTS DIAGRAM

  1. Engine Management Module (EMM)
  2. Battery (12 volt)
  3. Stator
  4. Crankshaft Position Sensor (CPS)
  5. Throttle Position Sensor (TPS)
  6. Neutral Switch
  7. Low Oil Switch
  8. Air Temperature Sensor (AT)
  9. Engine Temperature Sensor
  10. Fuel Pump (high pressure)
  11. Oil Injection Pump and Manifold
  12. Ignition Coil
  13. Fuel Injector
  14. Tachometer/SystemCheck Gauge
  15. I-Command (CANbus) Display
  16. Diagnostic Connector
  17. LED Indicators
  18. Exhaust Water Valve (60–65 HP)
