Service Manual
(11) When applying liquid sealant, take care to use sparingly.
Excessive application may be oozed out, adversely affecting interior of the crankcase. Use adhesive after thoroughly reading the instructions.
(12) When servicing power unit, use of wooden work board makes the work easier.
Tools and Instruments
1) Measuring Instruments
For the following measuring instruments, use commercially available ones.
Circuit tester ----( Resistance : 1Ω, 10Ω, 10 kΩ, AC voltage : 30 to 300V, DC voltage : 30V, Internal voltage 3V or less )
Vernier calipers---( M1 type, 300 mm )
Micrometer --------( minimum graduation of 0.01, outer, 0 to 25 mm, 25 to 50 mm, 50 to 75 mm )
Cylinder gauge ----( 4 to 6 mm, 10 to 25 mm, 25 to 30 mm, 50 to 75 mm )
Ring gauge --------( ø5.5, ø16, ø25, ø30, ø61)
Dial gauge --------( minimum graduation of 0.01 )
Thickness gauge ---( 0.03 to 0.3 mm )
V block
Surface plate -----( 500 mm x 500 mm )
Dial gauge magnet base or dial gauge stand

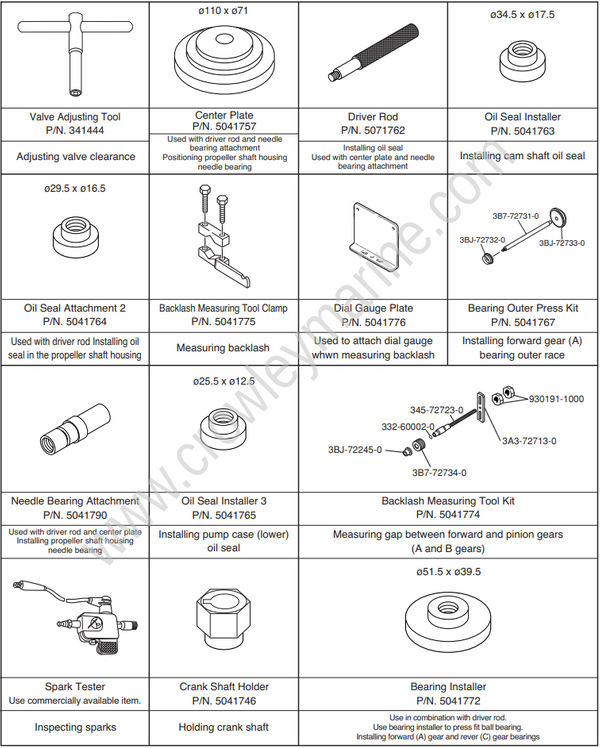

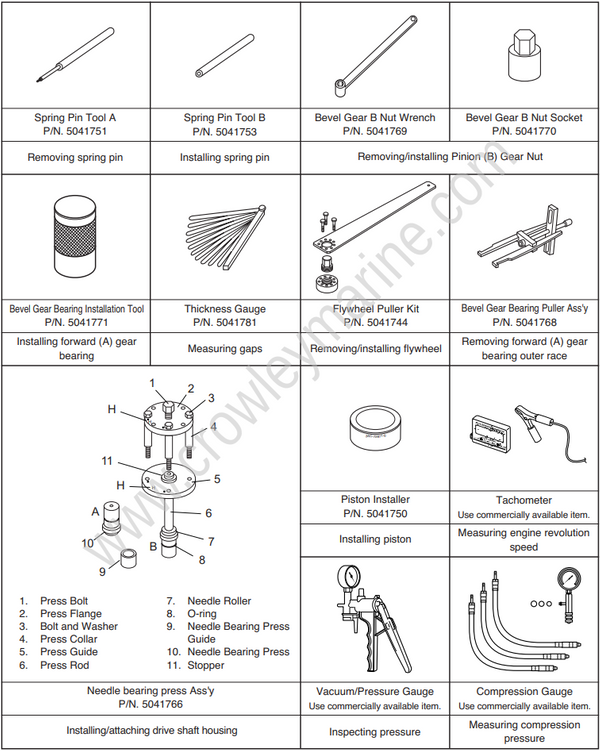

2) Special Tools
