DIAGNOSTIC SOFTWARE FUNCTIONS
The EMM saves valuable information about the outboard and its running history. This information can be used for troubleshooting, for checking parts information, and for making adjustments to the system.
Use Evinrude Diagnostics software, version 5.1 or higher, and a laptop computer to access program information.
IMPORTANT: For software help, refer to the “Help” menu in the software.
Communication

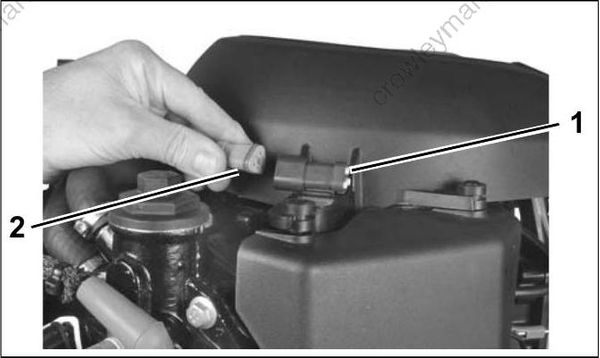

Locate the diagnostic connector on the engine. Remove the cover and install the Diagnostic Inter face Cable (P/N 437955).
- Cover
- Engine harness diagnostic connector
Connect the 9-pin connector of the interface cable directly to the computer’s serial port.
The EMM must turn ON before it will communicate with the computer.
Power is normally supplied to the EMM when the key switch is ON. Switched B+ (12 V) enters the EMM at pin 21 (purple) of the EMM J1-B connector.
The EMM is also turned ON when it begins to receive AC voltage from the stator while the out board is being cranked.
Static Information
Refers to information viewed when the outboard is NOT running. This includes manufacturing information.
The outboard model and serial numbers displayed on the Identity screen must match the identification label on the outboard swivel bracket.

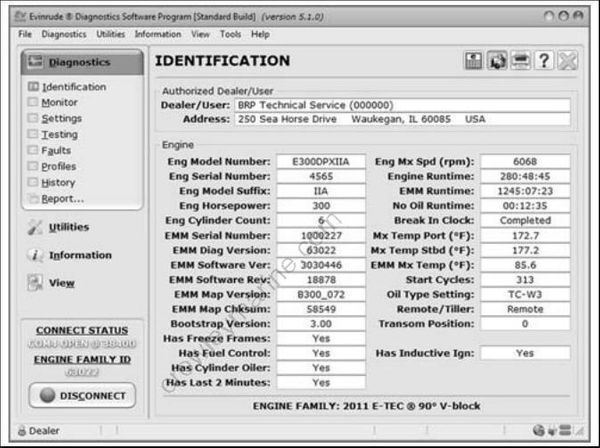

Identity Screen

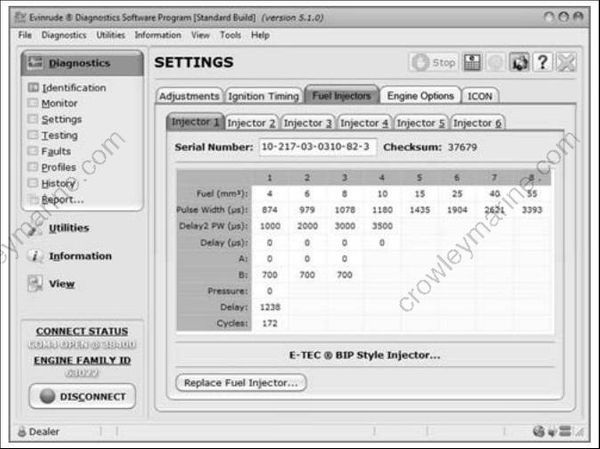

The serial number and cylinder location displayed on the Injector Coefficients screen must match the actual cylinder placement for each injector.
Injector Coefficients Screen
Dynamic Information
Dynamic information is viewed while the outboard is running. Changes in data, such as voltages or temperatures, are shown as they happen.

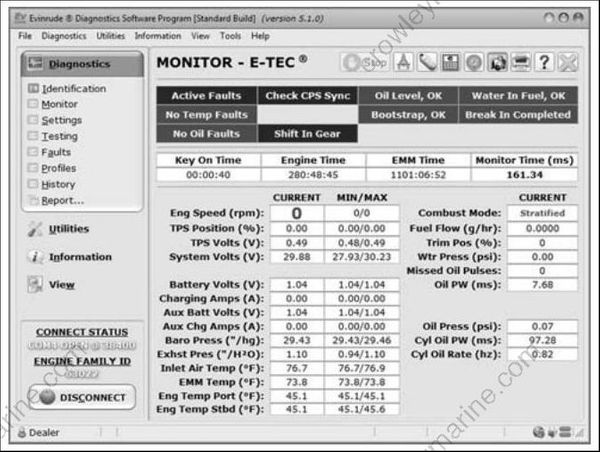

Engine Monitor Screen
Occurred Service Codes (Faults)
Service codes are saved if an abnormal condition occurs while the outboard is running.
The Occurred Faults screen of the diagnostics software shows the code number, the number of times the event occurred, and operating hours of first and last occurrences.

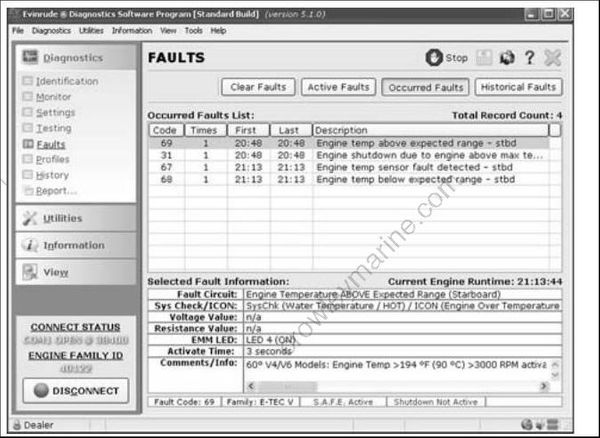

Occurred Faults Review Screen
Active Faults
An active fault is a service code that currently exists. Active faults become occurred faults only if the outboard is running.
Active Faults Review Screen
Historical Faults
The Historical Faults screen keeps a history of all previous occurred codes, including code number, the number of times the event occurred, and operating hours of the last occurrence.
Historical faults cannot be erased.

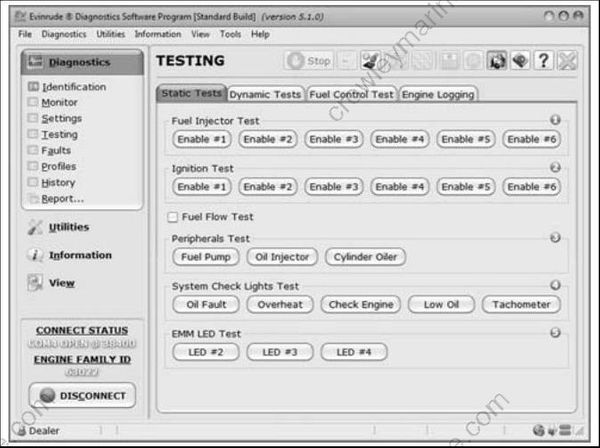

Static Tests
Static Tests allow diagnostic testing of system components while the outboard is NOT running.
Static Tests Screen
Ignition Test
Use the diagnostics software to test each ignition circuit. Refer to Static Ignition Test on p. 82.
Fuel Test
Use the diagnostics software to test each fuel injector circuit. Refer to Fuel Injector Static Test on p. 85.
Oil Injector
Use the diagnostics software to test the oil injection pump circuit. Refer to OILING SYSTEM TESTS on p. 173.
Fuel Pump
Use the diagnostics software to test the fuel pump circuit. Refer to Fuel Pump Static Test on p. 85.
Overheat
This test is used to check the “ENG TEMP” or “HOT” circuit of the Engine Monitoring system.
Oil Fault
This test is used to check the “NO OIL” circuit of the Engine Monitoring system.
Check Engine
This test is used to check the “CHECK ENGINE” circuit of the Engine Monitoring system.
Tachometer
This test is used to check operation of the tachometer circuit.
Dynamic Tests
Dynamic test s are performed with the outboard running.

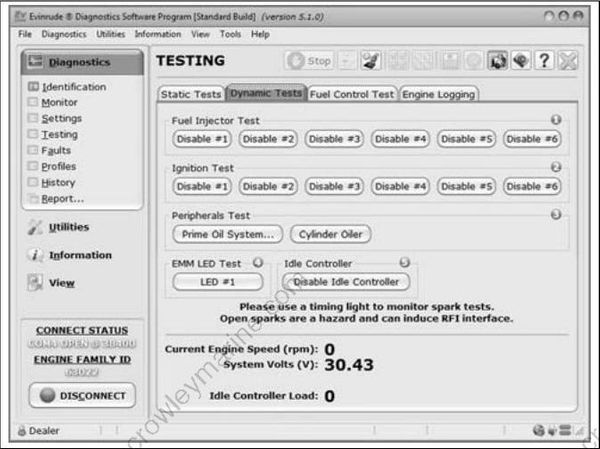

Dynamic Tests Screen
Ignition Test
This test momentarily disables the ignition and fuel injection circuits to o ne cylinder. By dropping one cylinder, RPM and running quality changes can be observed . Refer to DYNAMIC TESTS on p. 77.
Fuel Test
This test momentarily disables one fuel injector circuit. By dropping on e cylinder, RPM and running quality change s can be observe d. Refer to DYNAMIC TESTS on p. 77.
Prime Oil
This test is used to cycle the oil injection pump for priming the oiling system. Per form this test with outboard running to activate oil injection pump.

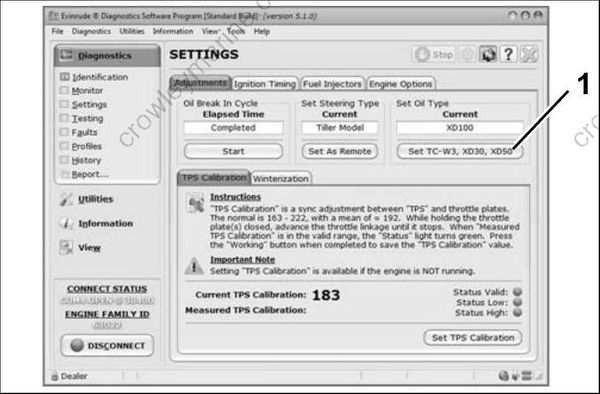

Oil Control Settings
Set Oil Type
The TC-W3 oil type setting is the standard setting for all outboards. Set TC-W3 for:
Operation with all TC-W 3 outboard oils including XD30, XD50, or XD100
Applications requiring maximum lubrication
Extreme applications (racing or harsh conditions)
The XD100 setting provides an option to run the outboard at a reduced oil injection rate. This set ting REQUIRES the use of Evinrude XD100 out board lubricant and is not re commended for all applications.
Use the XD100 setting for:
Conventional use (runabouts, cruisers)
Moderate applications
- Oil control setting
Running an Evinrude E-TEC outboard on other grades of oil while set to the XD100
oil ratio will result in increased engine wear and shortened outboard life.

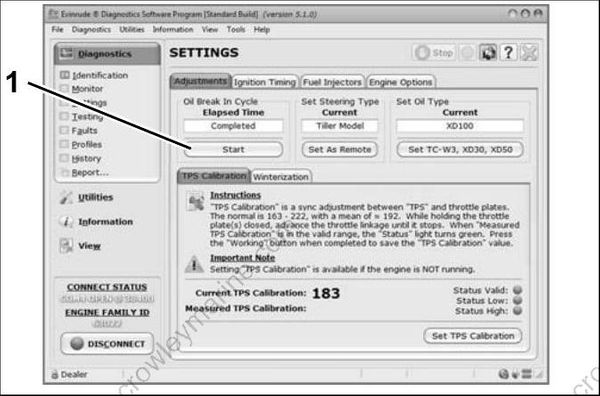

Powerhead Break-In
Use the diagnostic software to initiate break-in oiling. Break-in is a predetermined oiling program that runs for two hours of outboard operation, above 2000 RPM.
- Break-in oil setting

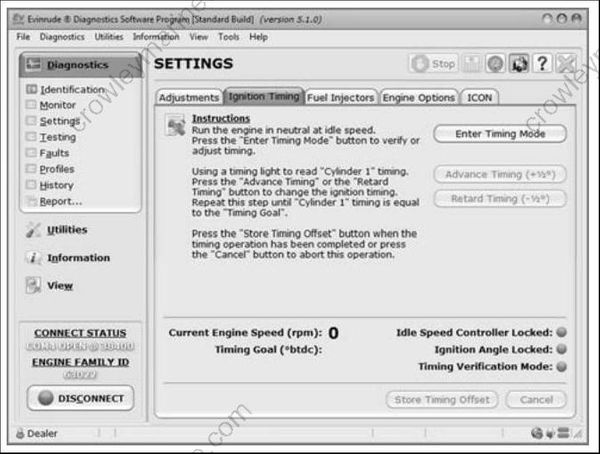

Ignition Timing
Use the Ignition Timing screen to check and adjust EMM timing. EMM timing must be synchronized to crankshaft position.
Refer to TIMING ADJUSTMENTS on p. 112.
Check timing after any of the following procedures:
Powerhead replacement
Crankshaft replacement
Flywheel removal or replacement
CPS replacement
EMM replacement
EMM software replacement
IMPORTANT: Make sure the timing pointer is set and the outboard reaches operating temperature before making adjustments.

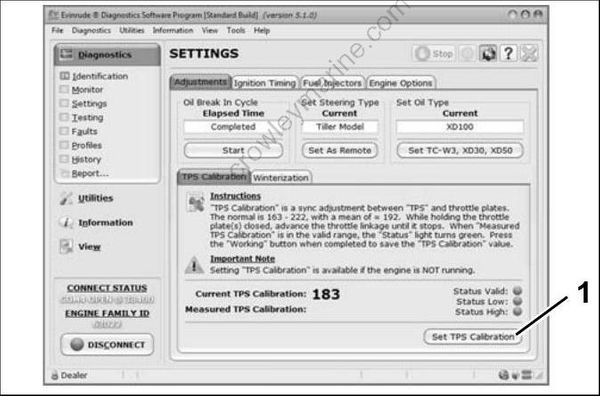

TPS Calibration
TPS Calibration synchronizes throttle plate opening with throttle position sensor voltage.
Refer to TPS CALIBRATION on p. 113.
- TPS Calibration button
Perform TPS Calibration after replacing or adjusting any throttle body or throttle linkage parts.
Fuel Injector Servicing
All E-TEC fuel injectors use software programming to compensate for variations in fuel flow . Each injector a nd its location on the outboard is identified by the EMM. DO NOT install an injector without updating the compensation software.
To install a service injector, click the “ Replace” Injector Coefficients screen and button on the select the file for the replacement injector. Refer to Fuel Injector Service on p. 147.
Reports
Engine rep orts provide service records and can be used to document the running history of an out board. Reviewing this information can help identify or resolve some service issues.

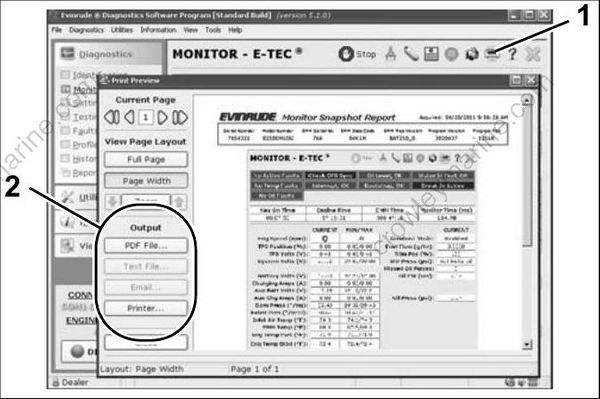

Click the print button in a window of the diagnostics software to print engine data, or to export the information to a computer file.
- Print button
- Print/Export options

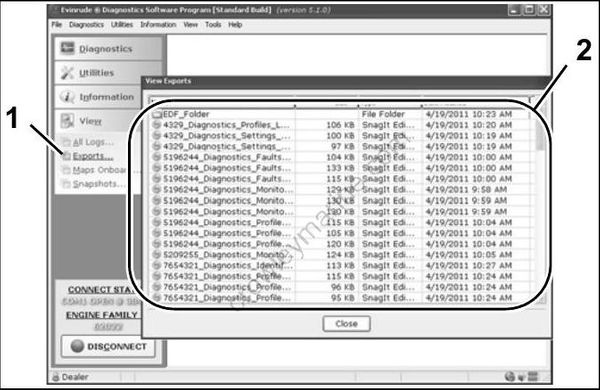

Engine Report data files
- Exports button
- Data files

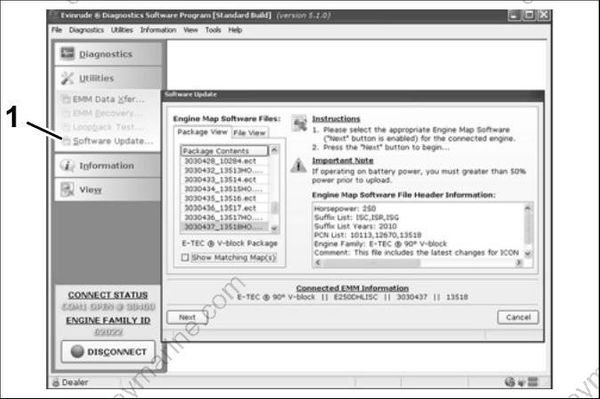

Software Replacement
Engine Management Software is loaded into the EMM at the factory. Periodically, a new program may be available to enhance the operation of an outboard. Select Engine Software Update from the Utilities menu and refer to the instructions provided with the program.
- Software Update button

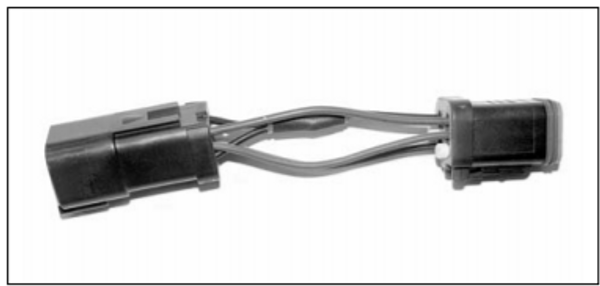

IMPORTANT: Software replacement requires the use of Bootstrap Tool, P/N 586551. Install tool between engine and boat harness key/stop switch

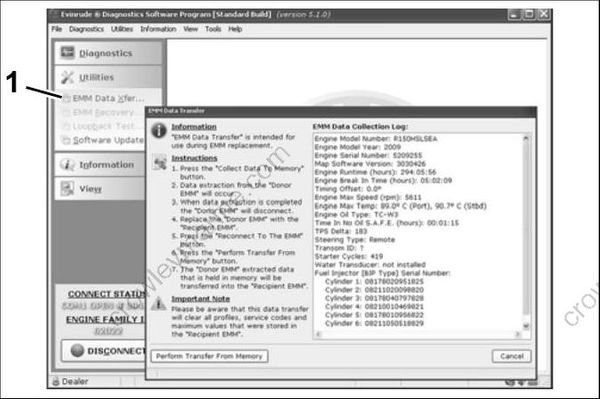

EMM Transfer
EMM Transfer is used to save engine history data when the EMM must be replaced.
Select EMM Data Transfer from the Utilities menu. Select Perform Transfer From Memory and follow the instructions provided with the program.
- Select EMM Data Transfer
- Select Perform Transfer From Memory
IMPORTANT: Whenever the EMM is replaced, EMM timing must be synchronized to crankshaft position. Refer to TIMING ADJUSTMENTS on p. 112.
EMM SERVICING
IMPORTANT: If a new EMM is being installed, refer to EMM Transfer on p. 70.
Removal

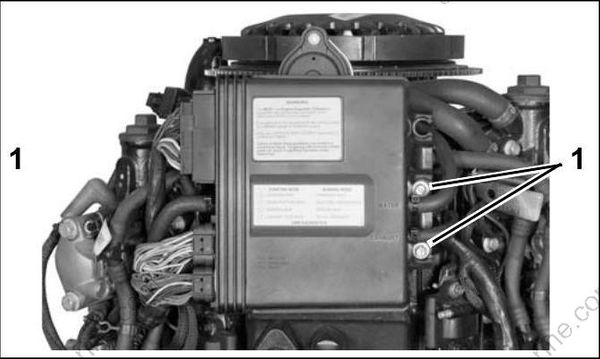

Disconnect exhaust pressure hose and cooling hoses from EMM.
Disconnect J1-A, J1-B, and J2 connectors. Remove two EMM retaining screws.
- EMM mounting screws
Lift EMM away and to the starboard side.
