Service Manual

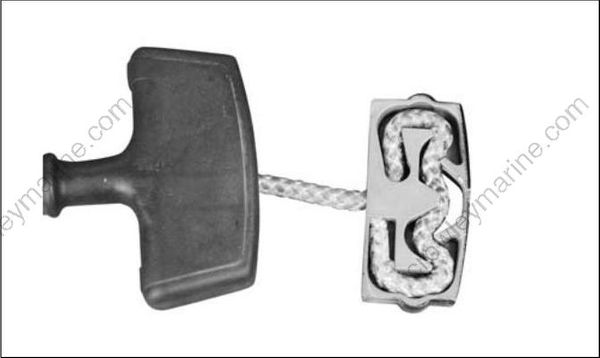

Press the starter rope into the channel of the rope anchor, with end of starter rope firmly against end of channel. Press the anchor into the handle.
007858
Check operation of the starter pawl when the starter rope is pulled out. The starter pawl should extend when the starter rope is pulled and retract when the starter rope recoils.
RECOIL STARTER INSTALLATION

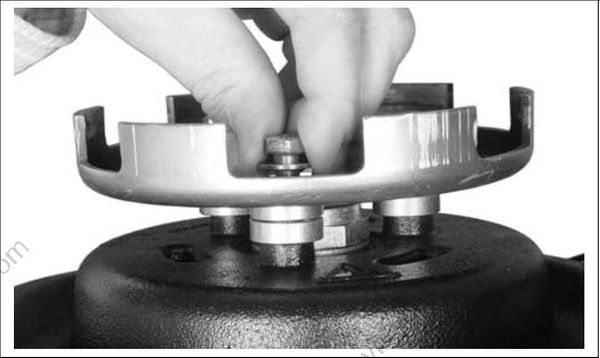

Apply Nut Lock to the threads of starter ratchet screws. Inst all washers and ratchet on flywheel.
Tighten screws to a torque of 120 to 14 4 in. lbs. (13.5 to 16 N·m).
006654

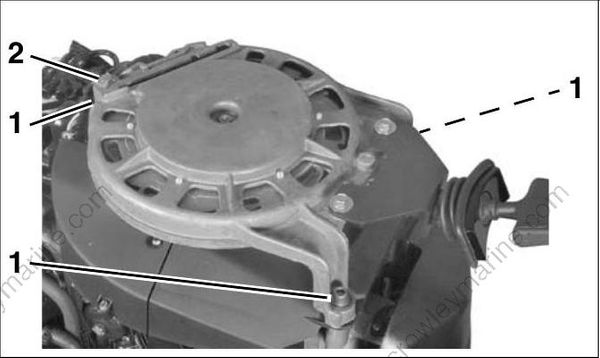

Place t he starter assembly onto the outboard.
Install the starter housing retaining screws, washers, and bushings. Be sure to place washers between the starter housing and the flywheel cover. Apply Ultra Lock to threads and tighten the three starter housing screws to a torque of 120 to 144 in. lbs. (14 to 16 N·m).
Install clamp for oiling system wiring harness.
002515
