Latch Hook Installation

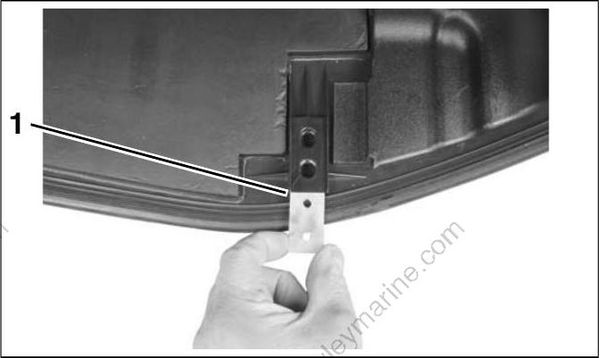

Insert threaded bracket into pocket.
- Bracket
006468

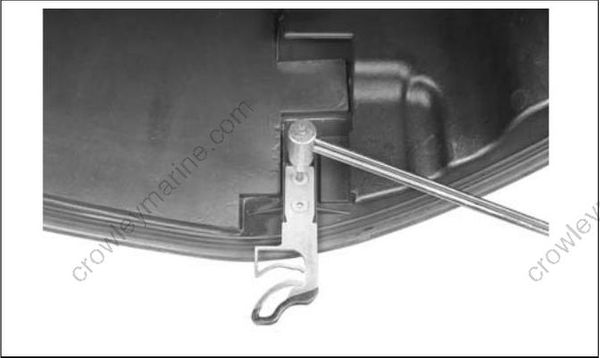

Apply Ultra-Lock t o screw threads. Place hook into position with opening toward the front. Tighten screws to a torque of 60 to 84 in. lbs. (7 to 9.5 N·m).
Tilt Assist Strap

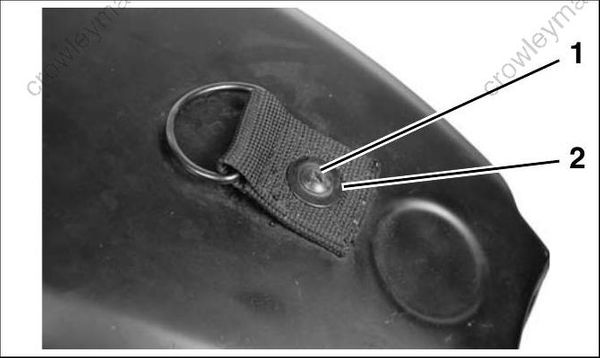

Insert screw, with washer, through strap assembly and into upper motor cover. Strap buckle should be toward the rear.
007844
- Screw
- Washer

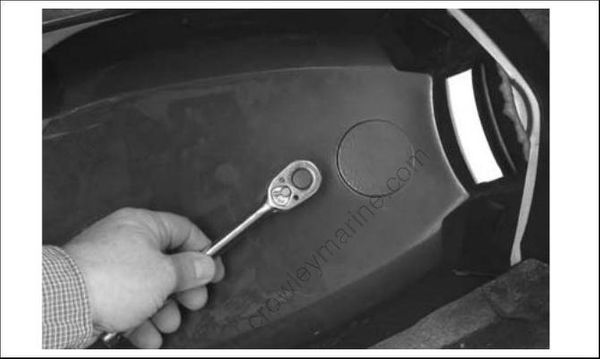

Install washer and lock nut and tighten to a torque of 60 to 84 in. lbs. (7 to 9.5 N·m).
