Service Manual 5008736_55 MFE Electrical And Ignition [Ignition System Circuit Diagram]

Related Products:
added updated
Service Manual 5008736_55 MFE Electrical And Ignition [Ignition System Circuit Diagram]
5008736
BRP Marine

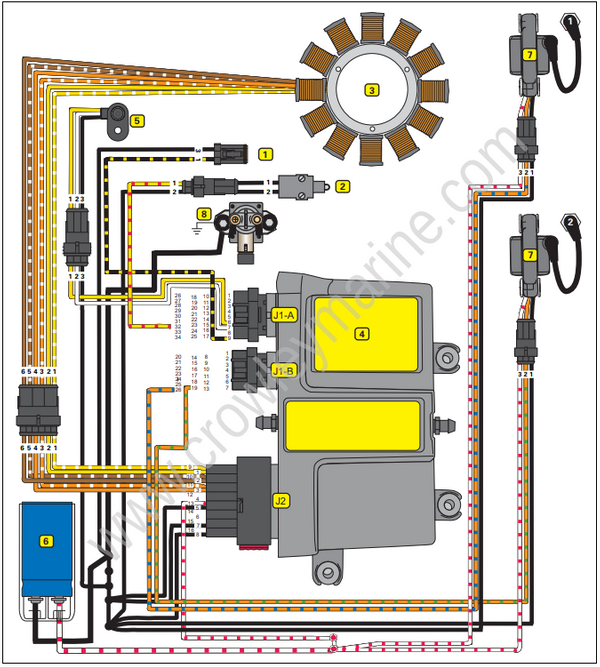

Ignition System Circuit Diagram

1.Key switch (stop circuit)
2.Neutral switch
3.Stator
4.EMM
5.Crankshaft position sensor
6.Capacitor
7.Ignition coil
8.Main harness ground
