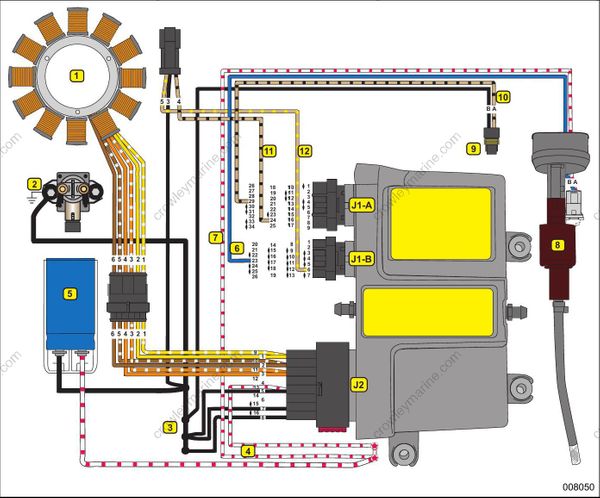

OILING SYSTEM CIRCUIT DIAGRAM
1.Stator
2.Main harness ground (BLACK)
3.Alternator grounds (BLACK)
4.Alternator output, WHITE / RED wires (55 V)
5.Capacitor (55 V)
6.EMM injector control (BLUE)
7.55 V to injection pump (WHITE / RED)
8.Oil injection pump
9.Low oil switch
10.Low oil switch to EMM (TAN/BLACK)
11.Low oil signal to SystemCheck gauge (TAN/BLACK)
12.No oil signal to SystemCheck gauge (TAN/YELLOW)
