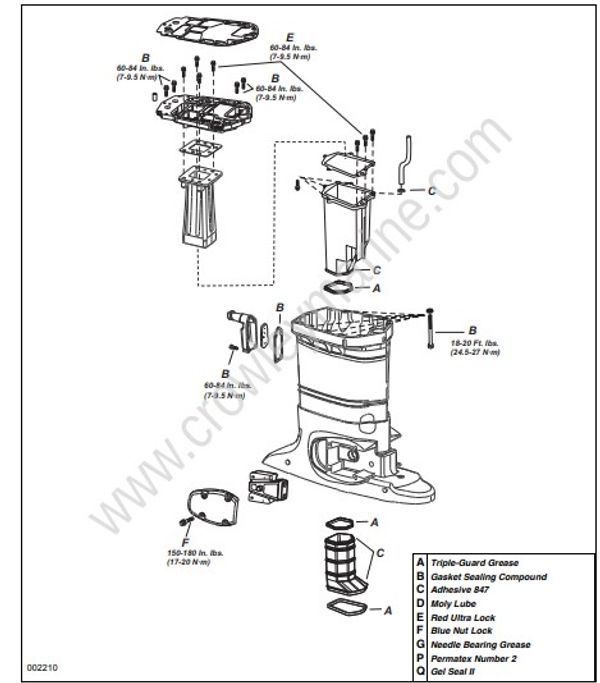

EXHAUST HOUSING, 40 – 65 HP
A Triple-Guard Grease
B Gasket Sealing Compound
C Adhesive 847
D Moly Lube
E Red Ultra Lock
F Blue Nut Lock
G Needle Bearing Grease
P Permatex No. 2
Q Gel Seal II

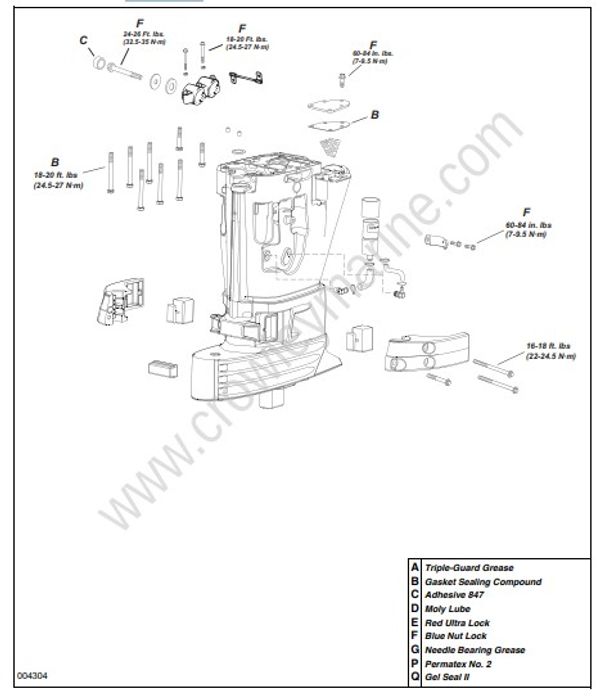

EXHAUST HOUSING, 75 – 90 HP
A Triple-Guard Grease
B Gasket Sealing Compound
C Adhesive 847
D Moly Lube
E Red Ultra Lock
F Blue Nut Lock
G Needle Bearing Grease
P Permatex Number 2
Q Gel Seal II

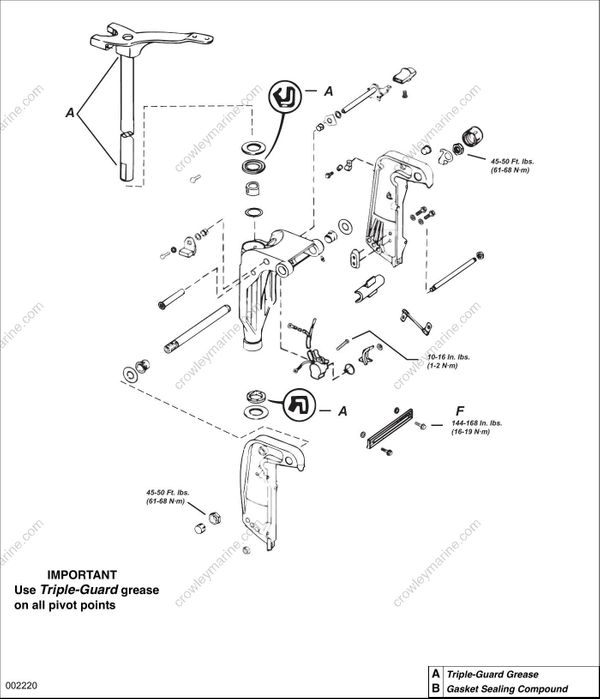

STERN BRACKET, 40 – 60 HP POWER TILT
IMPORTANT Use Triple-Guard grease on all pivot points
A Triple-Guard Grease
B Gasket Sealing Compound

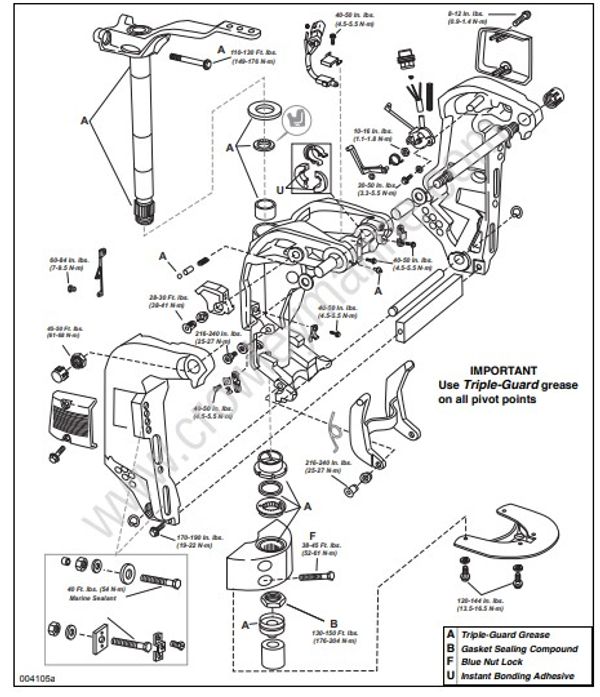

STERN BRACKET, 75 – 90 HP POWER TILT
IMPORTANT Use Triple-Guard grease on all pivot points
A Triple-Guard Grease
B Gasket Sealing Compound
F Blue Nut Lock
U Instant Bonding Adhesive

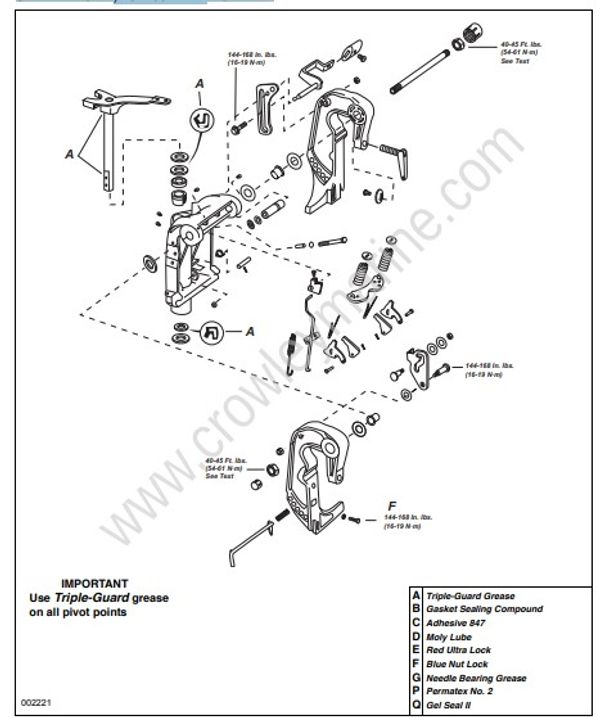

STERN BRACKET, 40 – 65 HP MANUAL TILT
IMPORTANT Use Triple-Guard grease on all pivot points
A Triple-Guard Grease
B Gasket Sealing Compound
C Adhesive 847
D Moly Lube
E Red Ultra Lock
F Blue Nut Lock
G Needle Bearing Grease
P Permatex No. 2
Q Gel Seal II

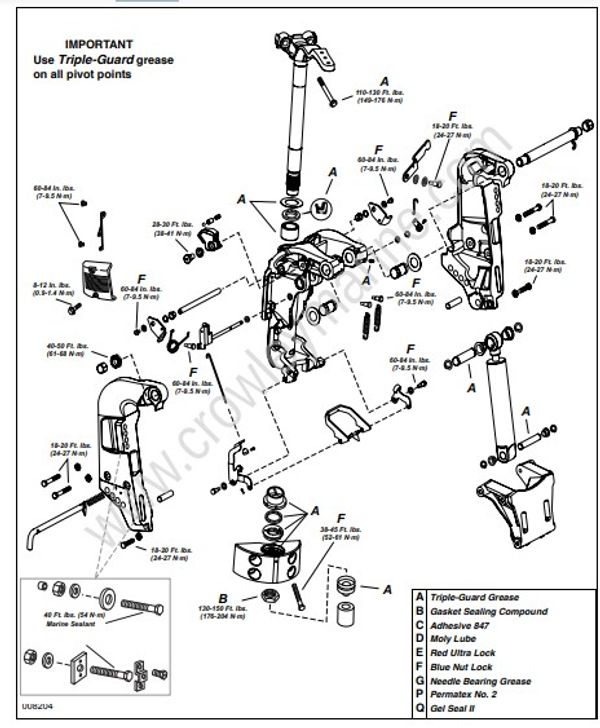

STERN BRACKET, 90 HP MANUAL TILT
A Triple-Guard Grease
B Gasket Sealing Compound
C Adhesive 847
D Moly Lube
E Red Ultra Lock
F Blue Nut Lock
G Needle Bearing Grease
P Permatex No. 2
Q Gel Seal II

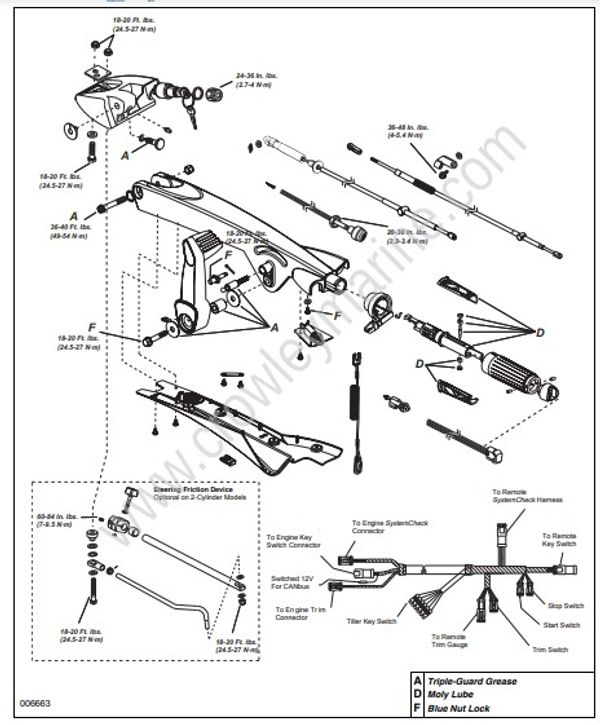

TILLER HANDLE (LONG)
A Triple-Guard Grease
D Moly Lube
F Blue Nut Lock
