Service Manual 5008734_40-90 HP Fuel System [Service Chart]

Related Products:
added updated
Service Manual 5008734_40-90 HP Fuel System [Service Chart]
5008734
BRP Marine

Steps:

  1. 2-CYLINDER MODELS: INJECTORS, VAPOR SEPARATOR, FUEL PUMP
  2. 2-CYLINDER MODELS: REED PLATE ASSEMBLY AND THROTTLE BODY
  3. 3-CYLINDER MODELS: INJECTORS, VAPOR SEPARATOR, FUEL PUMP
  4. 3-CYLINDER MODELS: REED PLATE ASSEMBLY AND THROTTLE BODY

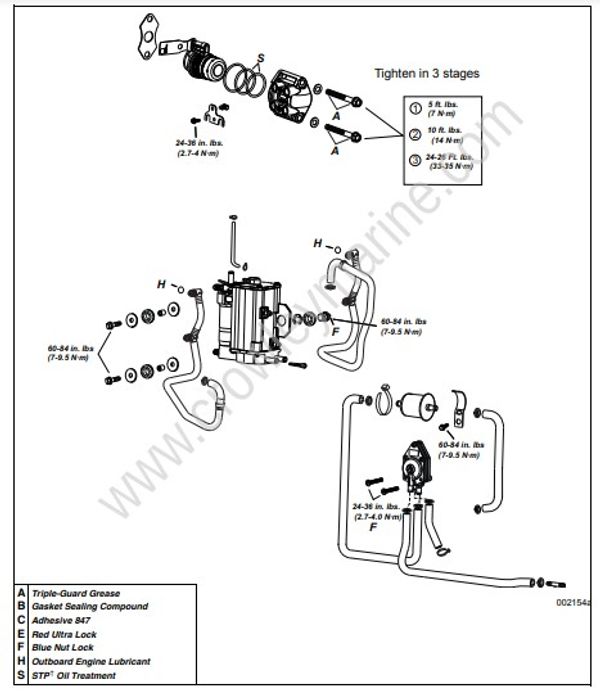

Step 1: 2-CYLINDER MODELS: INJECTORS, VAPOR SEPARATOR, FUEL PUMP

A Triple-Guard Grease
B Gasket Sealing Compound
C Adhesive 847
E Red Ultra Lock
F Blue Nut Lock
H Outboard Engine Lubricant
S STP† Oil Treatment

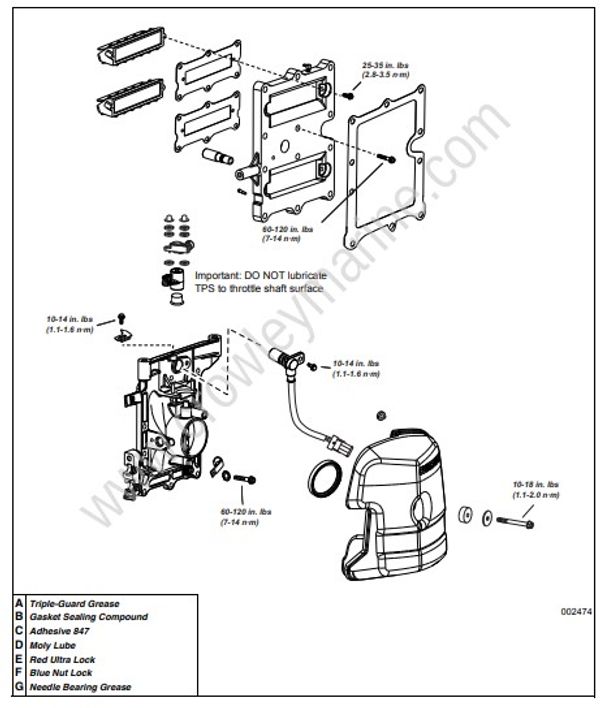

Step 2: 2-CYLINDER MODELS: REED PLATE ASSEMBLY AND THROTTLE BODY

A Triple-Guard Grease
B Gasket Sealing Compound
C Adhesive 847
D Moly Lube
E Red Ultra Lock
F Blue Nut Lock
G Needle Bearing Grease

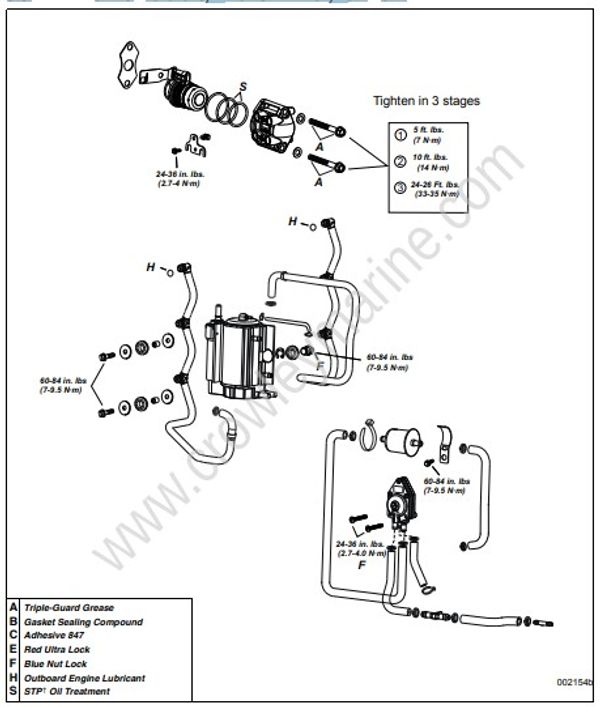

Step 3: 3-CYLINDER MODELS: INJECTORS, VAPOR SEPARATOR, FUEL PUMP

A Triple-Guard Grease
B Gasket Sealing Compound
C Adhesive 847
E Red Ultra Lock
F Blue Nut Lock
H Outboard Engine Lubricant
S STP† Oil Treatment

Step 4: 3-CYLINDER MODELS: REED PLATE ASSEMBLY AND THROTTLE BODY

A Triple-Guard Grease
B Gasket Sealing Compound
C Adhesive 847
D Moly Lube
E Red Ultra Lock
F Blue Nut Lock
G Needle Bearing Grease
