Removal

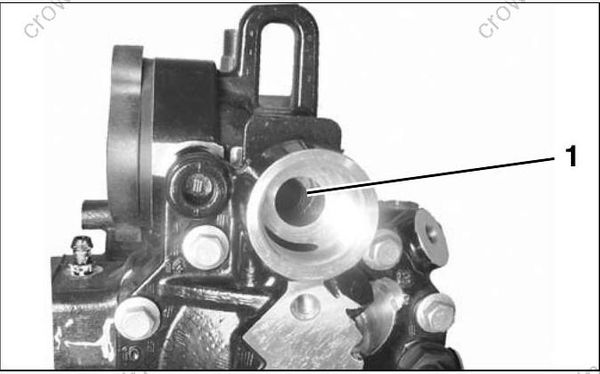

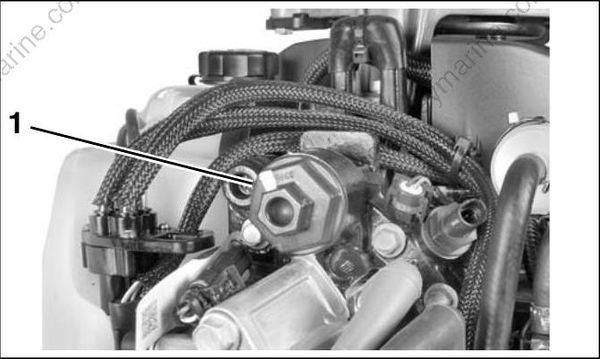

Loosen sensor and remove by hand. Use care to avoid breaking threads.
008346
Clean sensor threads, sensor, and sensor cavity.
Installation

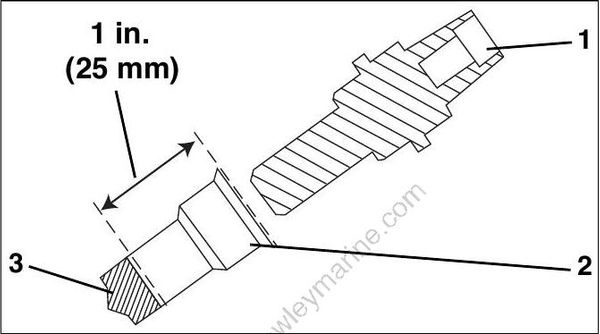

Fill bottom of sensor cavity with 0.7 cc of Thermal Joint Compound, P/N 322170. Sensor cavity
should be filled to 1 inch (25 mm) below the top edge of the cavity.

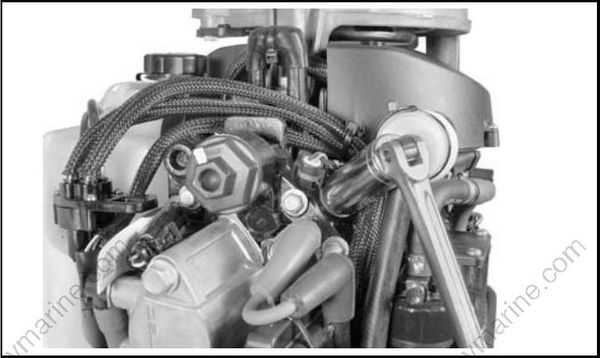

Install sensor. DO NOT use gasket sealing com pound. SLOWLY tighten temperature sensor to a torque of 50 to 70 in. lbs. (5.6 to 8.0 N•m).
007049
Wait 10 minutes for trapped air to bleed from cavity. Thermal compo und may seep past threads. Retighten sensor.
THERMOSTAT SERVICING
Disassembly

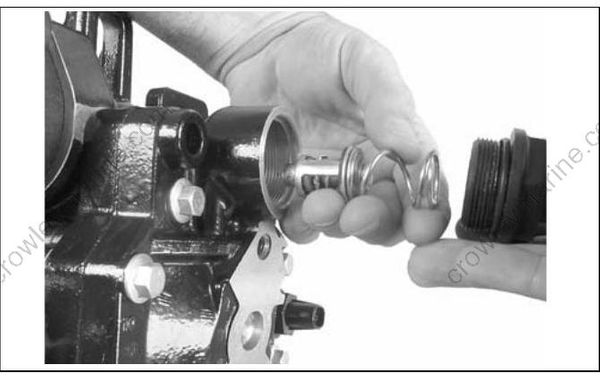

Remove the thermostat cover and O-ring from cylinder head.
008347

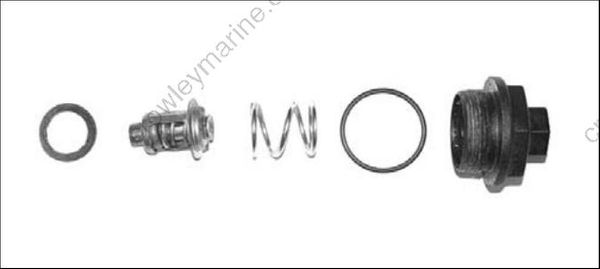

Remove spring, thermostat, and gasket.
002444
Remove the cylinder head if cylinder head thermostat seal requires replacement. Place new seal in the cylinder head with side marked “T O CYL
HEAD” facing thermostat. Refer to Cylinder Head Installation on p. 207.
002445
- Cylinder head seal
Inspection
Inspect all parts for cracks, heat damage, or signs of corrosion. Re place damaged p arts. Clean debris from housing and parts.
Assembly
Assembly is the reverse of disassembly. Pa y close attention when performing the following additional tasks. Coat threads of thermostat cover with Gasket Sealing Compound and install new O-ring. Install and tighten cover to a torque of 120 to 144 in. lbs. (13.5 to 16 N•m).
PRESSURE RELIEF VALVE SERVICING
The pressure relief valve assembly should be serviced at the same time as the thermostat.
Disassembly

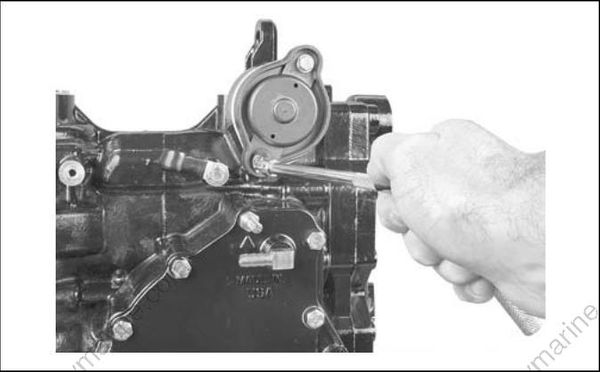

Remove screws and cove r from pressure valve assembly.
002443

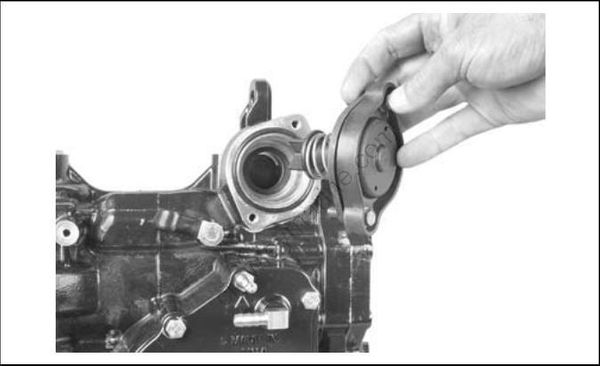

Remove the pressure relief valve assembly.
002459
