Service Manual 5008734_40-90 HP Add Ons

Related Products:
added updated
Service Manual 5008734_40-90 HP Add Ons
5008734
BRP Marine

Sections:

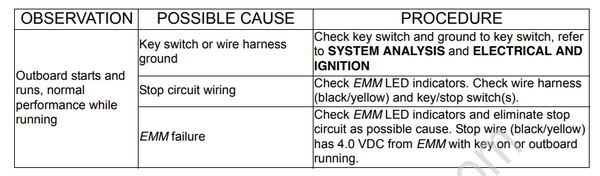

  1. TROUBLE CHECK CHART

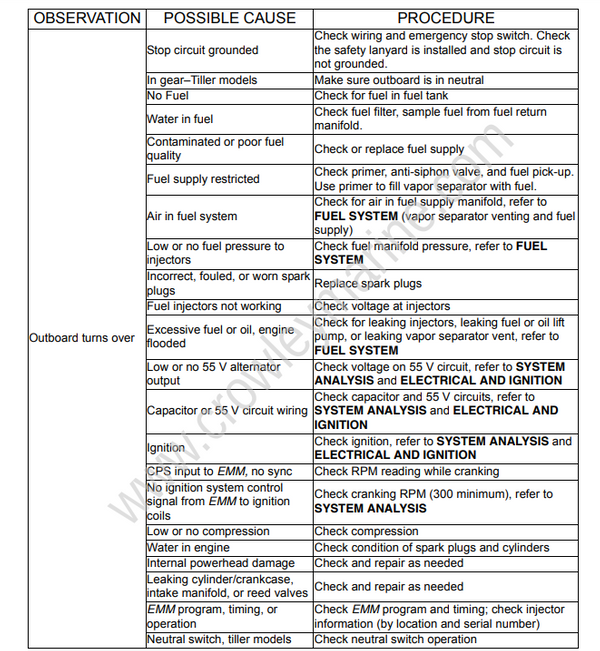

  2. OUTBOARD WILL NOT START

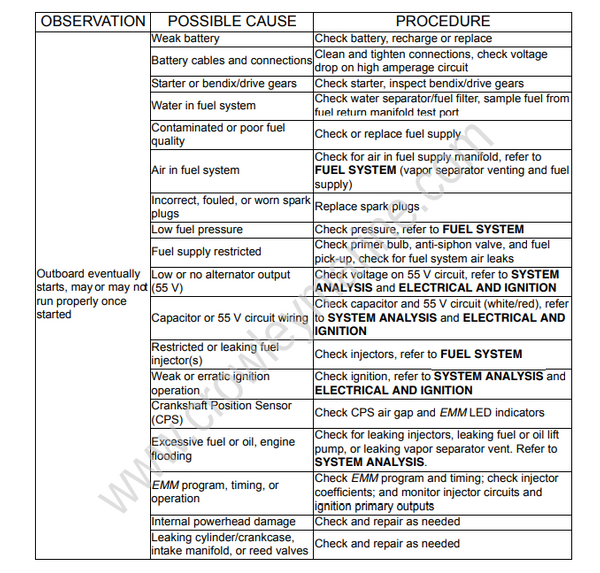

  3. OUTBOARD HARD TO START
  4. OUTBOARD WILL NOT SHUT OFF
  5. OUTBOARD STARTS AND STALLS
  6. OUTBOARD STARTS, LOW MAXIMUM RPM

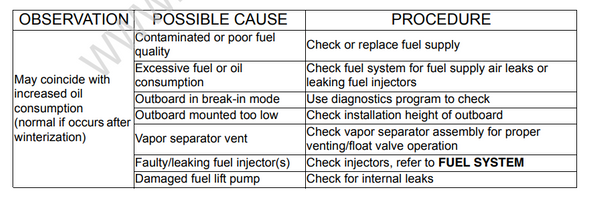

  7. EXCESSIVE SMOKING

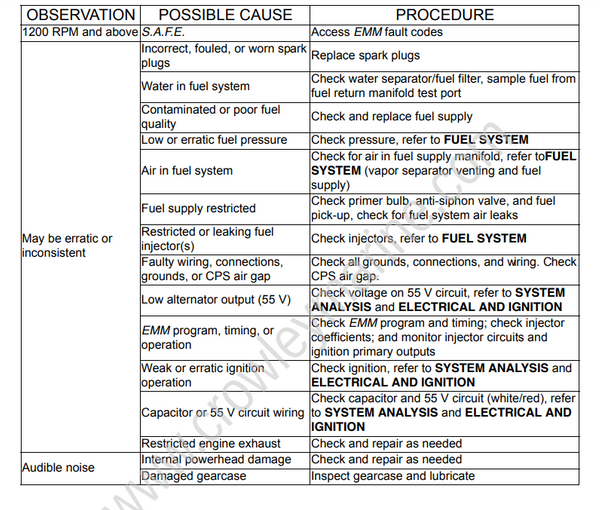

  8. OUTBOARD SURGES, RUNS ROUGH
  1. Hose Routing and Water Flow Diagram 40 – 65 E-TEC Inline 2 Cylinder
  2. Hose Routing and Water Flow Diagram 75-90 HP EVINRUDE ETEC
  3. MWS Instrument Wiring Harness
  4. I-Command Keyswitch/TNT Wiring Harness
  5. Lanyard Switch / Emergency Stop Circuits
  6. MWS Keys Switch and Neutral Safety Switch
  7. MWS DASHBOARD
  8. Evinrude E-TEC EMM LED Diagnostic Indicators

TROUBLE CHECK CHART

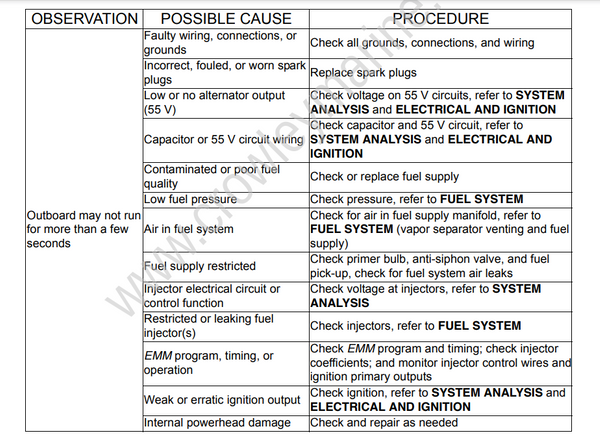

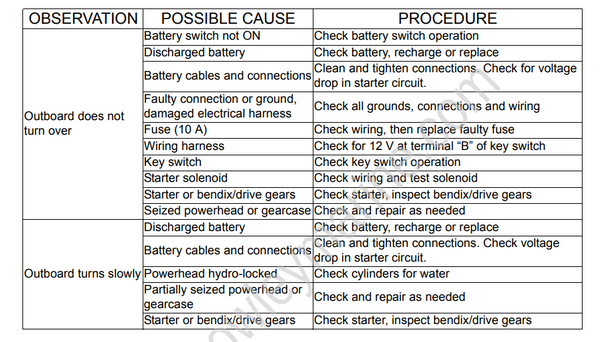

OUTBOARD WILL NOT START

OUTBOARD WILL NOT START

OUTBOARD HARD TO START

OUTBOARD WILL NOT SHUT OFF

OUTBOARD STARTS AND STALLS

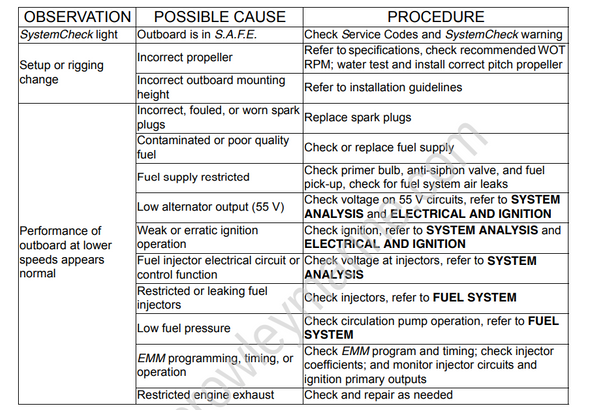

OUTBOARD STARTS, LOW MAXIMUM RPM

EXCESSIVE SMOKING

OUTBOARD SURGES, RUNS ROUGH

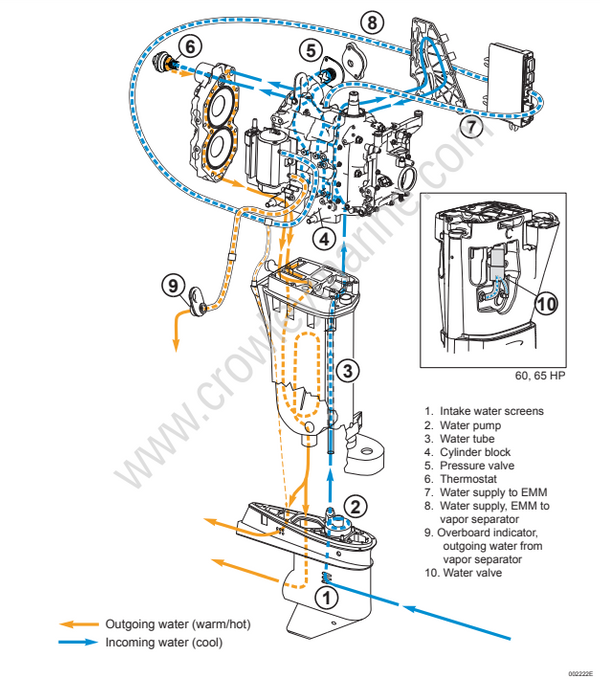

Hose Routing and Water Flow Diagram 40 – 65 E-TEC Inline 2 Cylinder

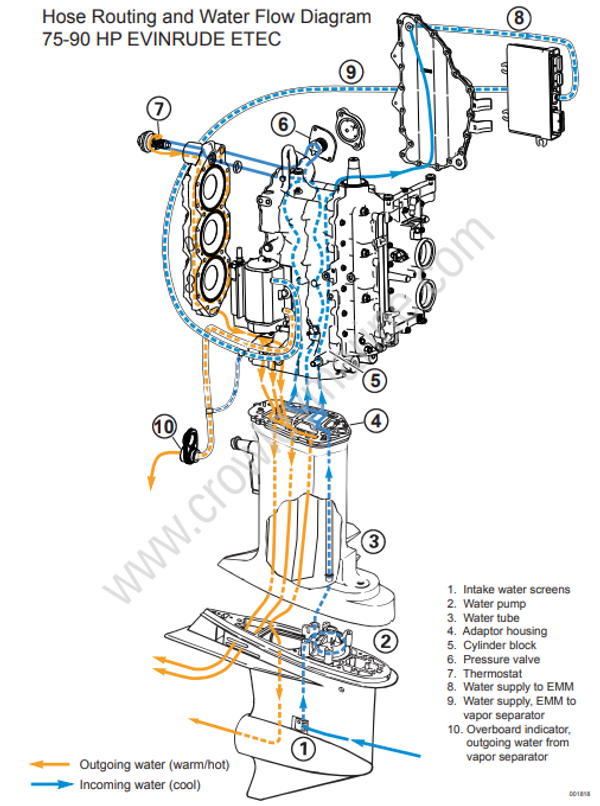

Hose Routing and Water Flow Diagram 75-90 HP EVINRUDE ETEC

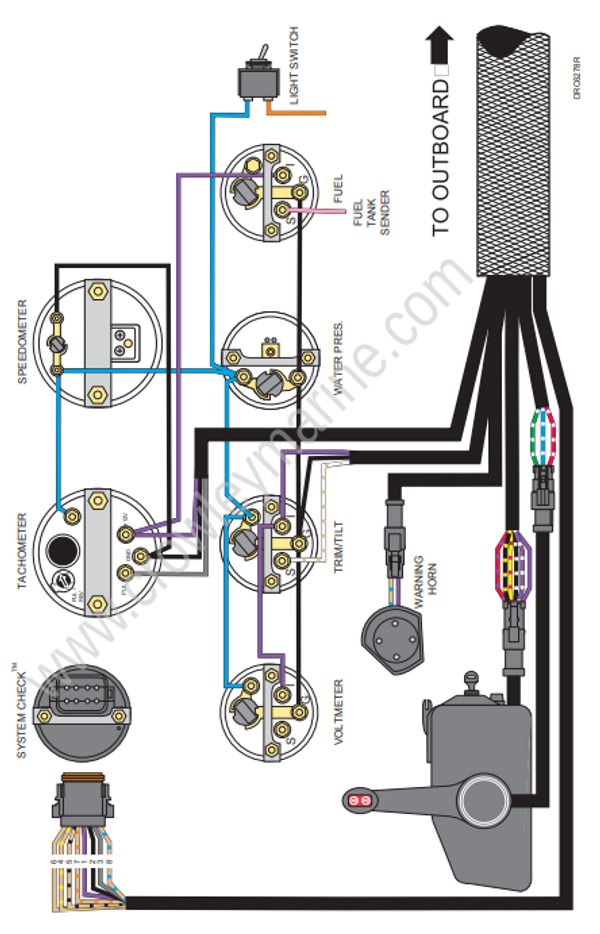

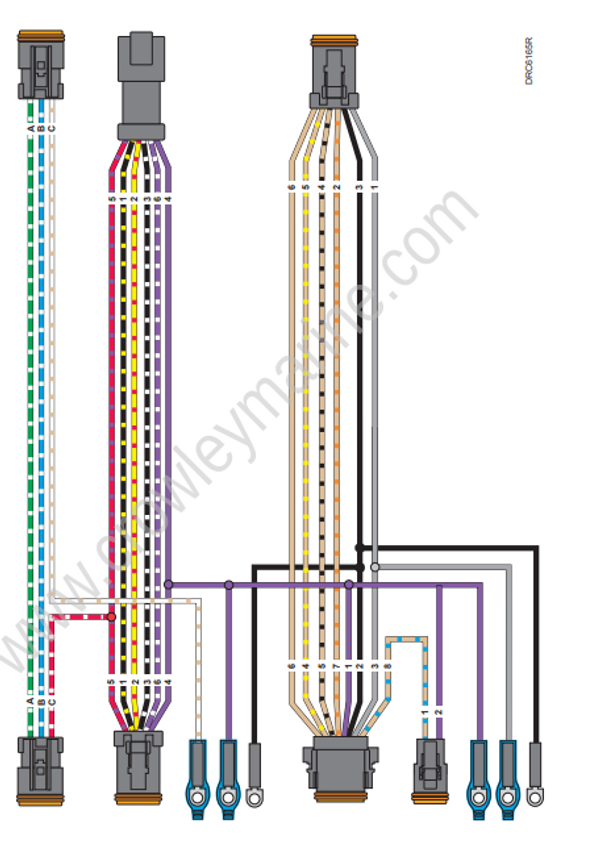

MWS Instrument Wiring Harness

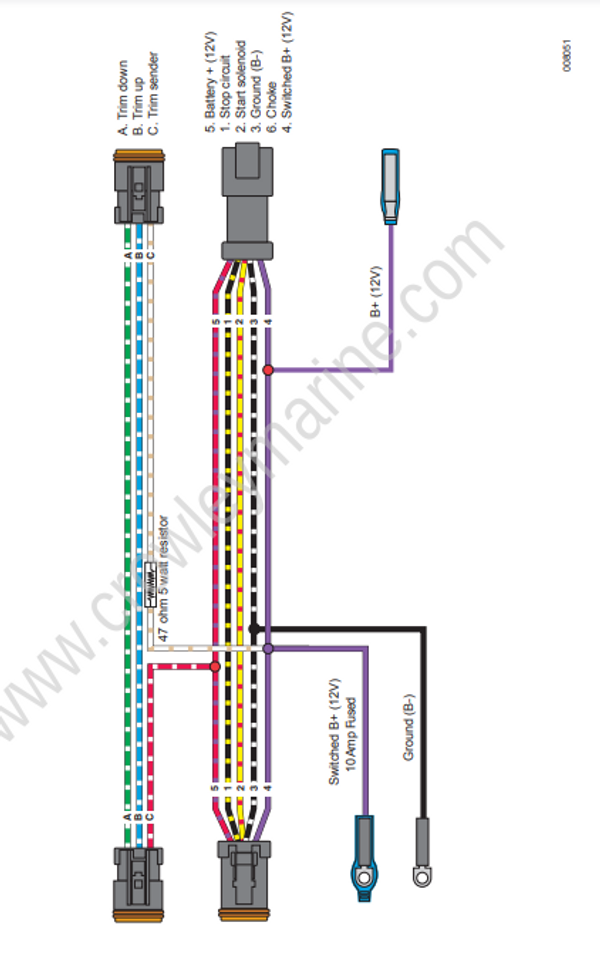

I-Command Keyswitch/TNT Wiring Harness

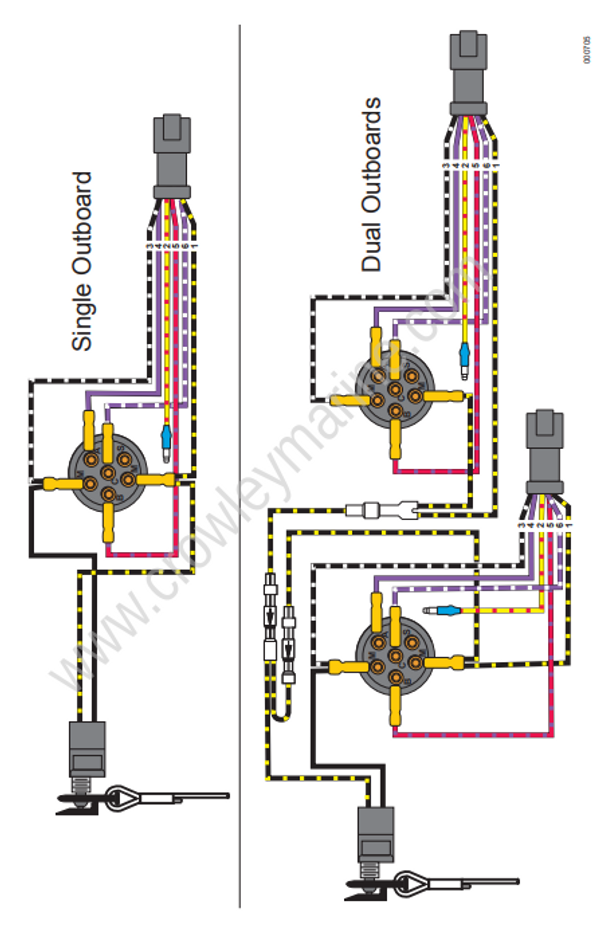

Lanyard Switch / Emergency Stop Circuits

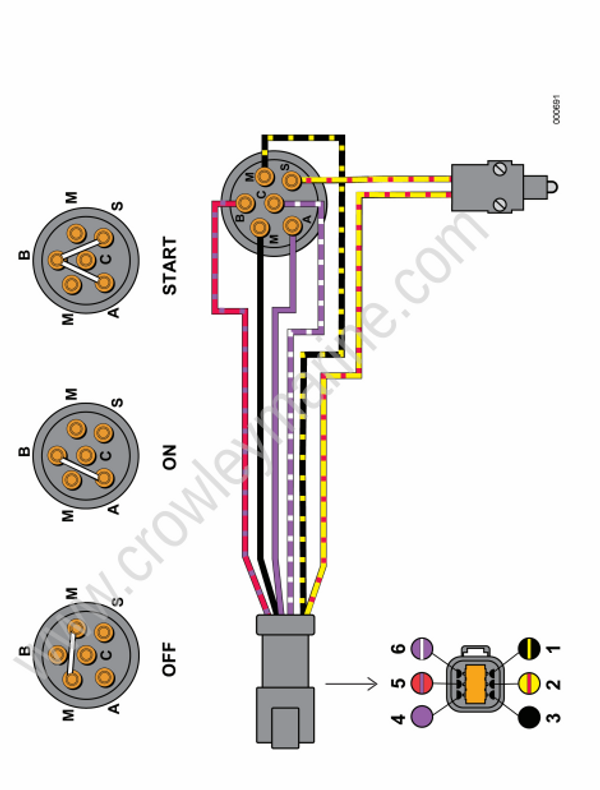

MWS Keys Switch and Neutral Safety Switch

MWS DASHBOARD

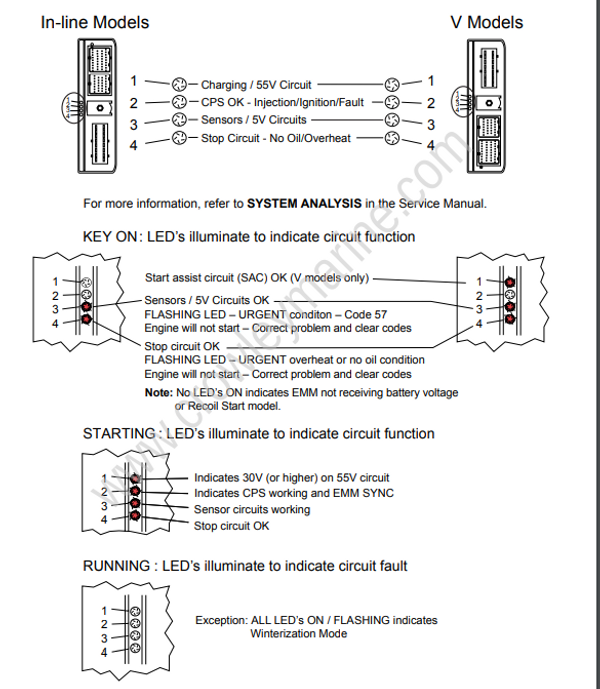

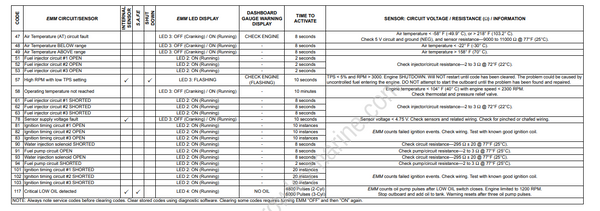

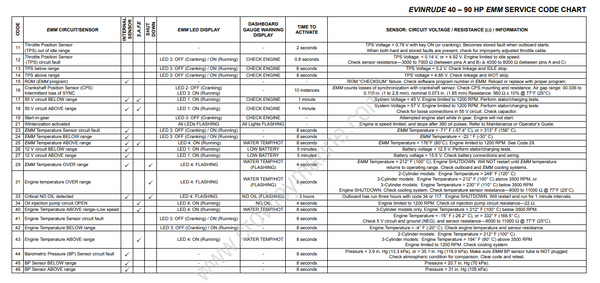

Evinrude E-TEC EMM LED Diagnostic Indicators

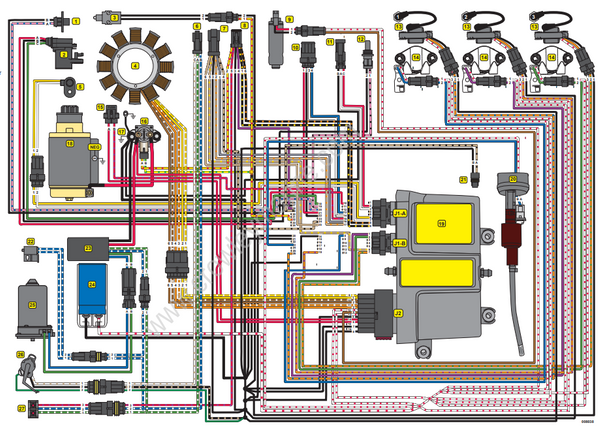

  1. Air Temperature Sensor
  2. Throttle Position Sensor
  3. Neutral Switch
  4. Stator
  5. Crankshaft Position Sensor
  6. Trim/Tilt Connector
  7. SystemCheck Connector
  8. Key Switch Connector
  9. High Pressure Fuel Pump
    1. CANbus Connector
    2. Diagnostic Connector
    3. Temperature Sensor
    4. Ignition Coil
    5. Fuel Injector
    6. Fuse (10 Amp)
    7. Starter Solenoid
    8. Main Harness Ground
    9. Electric Starter
    10. EMM
    11. Oil Injector
    12. Low Oil Switch
    13. Trim/Tilt Relay Module
    14. Capacitor
    15. Trim/Tilt Motor
    16. Water Valve Connector
    17. Trim Sending Unit
    18. Trim/Tilt Switch
