Service Manual 5008334_200-300 HP 90° V6 System Analysis [Diagnostic Procedures]

Inspect wiring and electrical connections. Disassemble and clean all corroded connections. Replace damaged wiring, connectors, or terminals. Repair any shorted electrical circuits.
• Refer to ELECTRICAL HARNESS CONNECTIONS on p. 91.
• Refer to WIRING DIAGRAM at the back of this manual.
• Refer to CONNECTOR SERVICING on p. 122

Make sure all ground connections are clean and tight. Refer to GROUND CIRCUITS on p. 93.

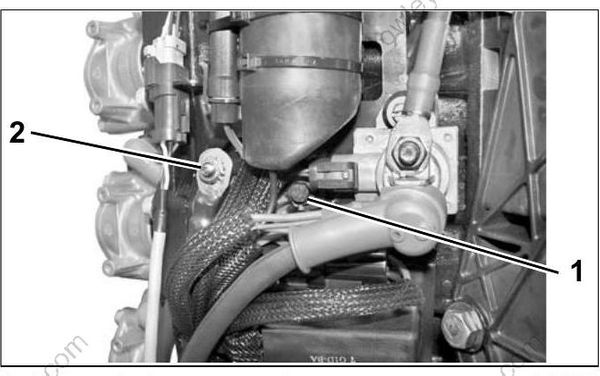

1. Main engine harness ground
2. Ground stud (battery)

Inspect spark plugs for wear, oil fowling, or dam age. A rich or lean running condition or evidence of internal engine damage could be identified by the appearance of the spark plugs.

Check the fuse and the emergency stop switch lanyard.

Before running the outboard, use Evinrude Diagnostics software to review historical information stored in the EMM.

Check the Hard Faults and Stored Faults screens for current service codes. Correct any problems and clear the codes before further troubleshooting. Refer to Stored Service Codes (Faults) on p. 65.

The stored code screen displays detailed information about the operating conditions of the engine at the time the code was set.

Stored Faults Review Screen

1. Detailed information

Review information about how the outboard has been operated using the Profiles screens.

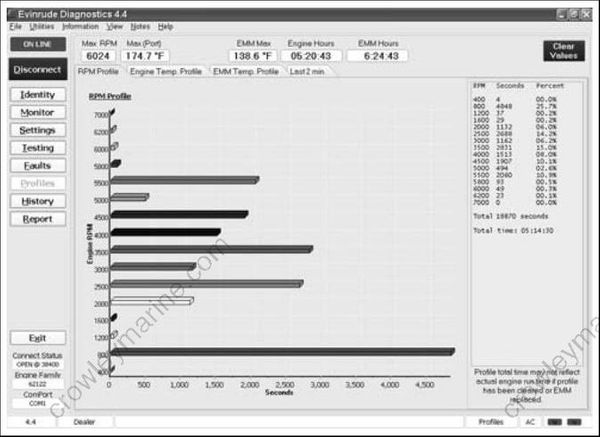

RPM Profile

• Check the RPM Profile for long periods of low speed operation or periods of over-revving rpm.
• Check the Engine Temperature Profile for evidence of cold running or overheating.

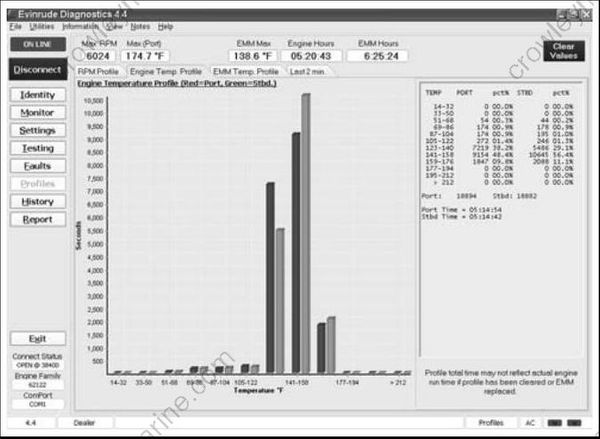

Engine Temperature Profile

• Check the Knock Profile for high knock levels. High knock levels may be due to high operating temperatures, incorrect ignition timing, poor quality fuel, or a loose knock sensor.

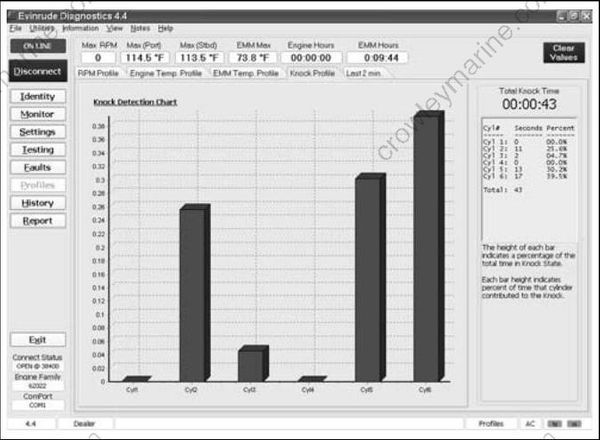

Knock Profile

• The Last Two Minutes profile reports engine run-time values during the last two minutes of operation above 1500 rpm. Information is collected once per second. The newest record is first on the list. As each new record is added, the oldest record is removed.

Last Two Minutes Profile

The Engine Identity Report provides a snap-shot of current engine and sensor conditions. From the Identity screen, press the Print button. Next, press Print to Printer to print, or Print to PDF to save the report.

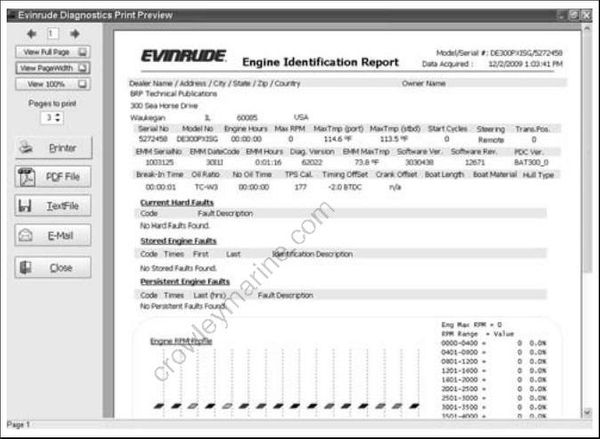

Engine Identity Report

Run the outboard to confirm actual symptoms before performing any unnecessary procedures. Inspection should include the following:

• Make sure the outboard can be cranked easily, with no mechanical binding.
• Check the EMM LED Indicators for system status information. Refer to EMM LED INDICATORS on p. 78.

Outboard will not crank, starter does not operate:

• Check condition of battery and cables (main battery switch and cables). Make sure battery cables are not reversed.
• Confirm that switched B+ is present at “A” terminal (purple wire) of starter solenoid with key switch in the ON position.
• Refer to ELECTRIC START TESTS on p. 101. Repair starter or start circuit as needed.

Outboard cranks, will not start:

• Check emergency stop switch and lanyard
• Check the EMM LED Indicators for system status information. Refer to EMM LED INDICATORS on p. 78.
• Use the Evinrude Diagnostics software Stored Faults screen to check for current service codes. If there are multiple stored sensor codes, inspect all 5 V sensor circuits for broken or grounded wiring.
• Perform a Static Ignition test using Evinrude Diagnostics software and an inductive timing light. Refer to Static Ignition Test on p. 82.
• If ignition test indicates steady spark, refer to FUEL DELIVERY TESTS on p. 85.

Outboard runs, low on power, misfires:

• Check the EMM LED Indicators for system status information. Refer to EMM LED INDICATORS on p. 78.
• Use the Evinrude Diagnostics software Monitor screen to check system (55 V) and TPS volt ages. System voltage should be steady, and TPS voltage should be between 0.2 and 4.85 V.

IMPORTANT: Use a digital multimeter to check voltage on external circuits only when necessary. All EMM output currents are DC current.

• Use the diagnostics software Dynamic Tests to isolate a faulty cylinder. See DYNAMIC TESTS on p. 77.
• Use an inductive timing light to check ignition and fuel injector circuits. Refer to Running Ignition Tests on p. 83 and Running Fuel System Tests on p. 86.
• Use the diagnostics software Fuel Control Adjustment test to help identify a cylinder that may be too rich or too lean. Refer to Fuel Control Adjustment on p. 77.
• Use an inductive amp meter to monitor injector circuit current. Compare readings of all circuits to identify possible failure.
• Check fuel quality and that fuel is present at injectors.
• Use the diagnostics software Logging function to record engine data as a problem is occurring.

Logging Screen

• AFTER all the above inspections, if the cause of a running quality problem still cannot be identified, perform a compression test to check for internal powerhead damage.

IMPORTANT: Remove a cylinder head or disassemble the engine only as a last resort.
