TEMPERATURE SENDER SERVICING
Removal
Loosen sensor and remove by hand. Use care to avoid breaking threads.
Clean sensor threads, sensor, and sensor cavity.
Installation

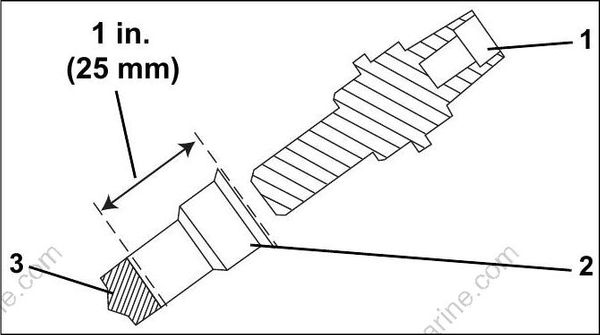

Fill bottom of sensor cavity with 0.7 cc of Thermal Joint Compound, P/N 322170. Sensor cavity should be filled to 1 inch (25 mm) below the top edge of the cavity.

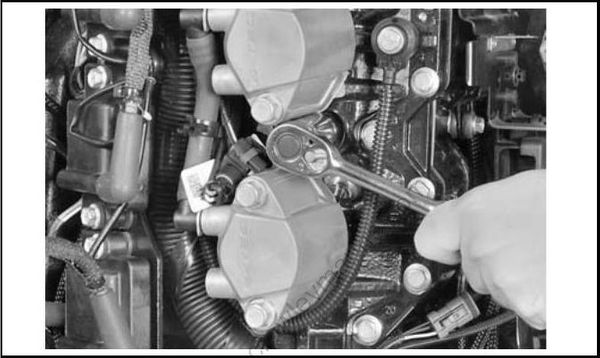

Install sensor. DO NOT use gasket sealing com pound. SLOWLY tighten temperature sensor to a torque of 50 to 70 in. lbs. (5.6 to 8.0 N·m).
- Temperature sensor
- Sensor cavity
- Thermal joint compound
Wait 10 minutes for trapped air to bleed from cavity. Thermal compound may seep past threads. Retighten sensor.
THERMOSTAT SERVICING
Disassembly

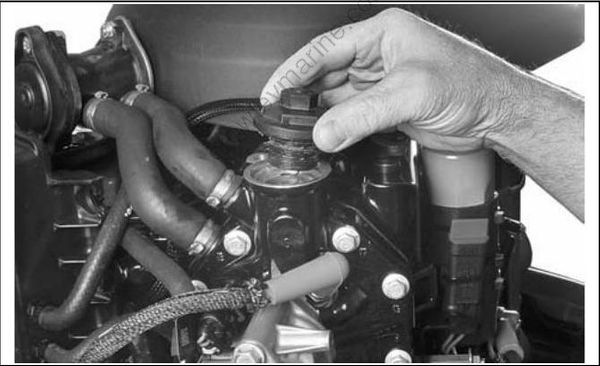

Remove the thermostat cover and O-ring from cylinder head.

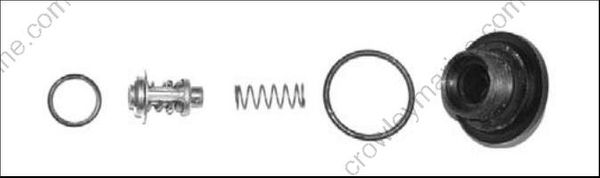

Remove spring, thermostat, and gasket.
Inspection
Inspect all parts for cracks, heat damage, or signs of corrosion. Replace damaged parts. Clean debris from housing and parts.
Assembly
Assembly is the reverse of disassembly. Pay close attention when performing the following additional tasks.
Coat threads of each cylinder head thermostat cover with Gasket Sealing Compound. Install and tighten the cover to a torque of 120 to 144 in. lbs. (13.5 to 16.5 N·m).
