Compression Testing
Start and run outboard until it achieves operating temperature, then shut OFF.
Disconnect crankshaft position sensor (CPS) connector. Remove all spark plugs.
Advance throttle linkage to WOT.
Install compression tester’s hose attachment into spark plug hole (14 mm threads).
While cranking outboard with starter, note maximum pressure reading on gauge. Repeat procedure for each cylinder.
If engine shows a variation greater than 15 psi (100 kPa) between cylinders, check for:
damaged cylinder head
damaged pistons
broken or stuck piston rings
scored cylinder walls
Return throttle to idle position and reconnect CPS connector. Replace spark plugs. Refer to Spark Plug Indexing on p. 38.
Powerhead Removal
Protect against hazardous fuel spray. Before starting any fuel system service, carefully relieve fuel system pressure. Refer to Relieving Fuel System Pressure on p. 146.
To prevent accidental starting while servicing, twist and remove spark plug leads.
Remove lower motor covers. Refer to Lower Cover Removal on p. 49.
Remove flywheel cover and rear shroud.
005248

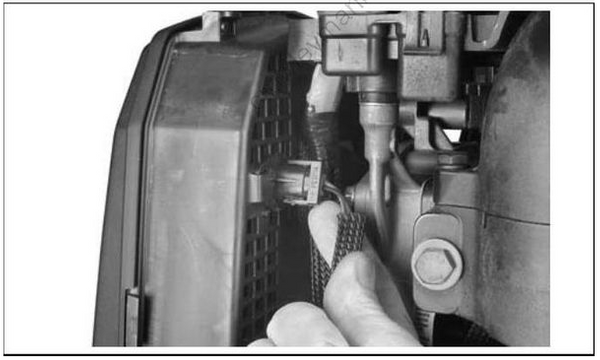

Remove air temperature sensor from air silencer. Remove the air silencer.
005272
