Service Manual 5008330_55 HP MFE Routine Service [Storage]

Connect ohmmeter leads between engine ground and anode surface.

1. Meter lead to anode

The meter should show little or no resistance. If resistance is high, check the following:

• Remove the anode and clean the area where the anode is installed.
• Clean the mounting screws.
• Install the anode and test again.

Protect metal components on outboards from corrosion. Use the following products to minimize corrosion.

• Anti-Corrosion Spray provides a heavy, waxy coating to protect components.
• “6 in 1” Multi-Purpose Lubricant provides a thin film of anti-corrosion protection..

Maintain the outboard’s exterior finish to prevent corrosion and reduce oxidation.

• Clean regularly using clean water and mild detergent soap.
• Touch-up damage to painted surfaces promptly.

IMPORTANT:DO NOT start outboard without a water supply to the outboard’s cooling system. Cooling system and/or powerhead damage could occur..

Stabilize the boat’s fuel supply with Evinrude/ Johnson 2+4 Fuel Conditioner following the instructions on the container.

IMPORANT:If outboard has been run with alternative fuels, it must be run with gasoline for a minimum of 20 minutes before being placed in storage..

Remove the propeller (MRL), attach garden hose to flushing port and turn on water.

Evinrude MFE models are designed to be self winterizing using either of the following methods:

IMPORTANT: Engine MUST be in NEUTRAL throughout these procedures.

Throttle Control Method

• Advance throttle control to 1/2 throttle (50%) position and then start the outboard. EMM LEDs will turn on and the outboard will run at idle speed.
• After approximately 15 seconds, the LEDs will go off. Move throttle to IDLE position. LEDs will light again.
• Wait another 15 seconds. LEDs will go off. At this point, advance throttle to FULL (in neutral). LEDs will flash, indicating that outboard is in winterize mode.
• Outboard will automatically go to fast idle and fog itself. Allow outboard to run until it shuts itself off (about one minute).

IMPORTANT: If outboard runs above fast idle, immediately turn off outboard and start the procedure again.

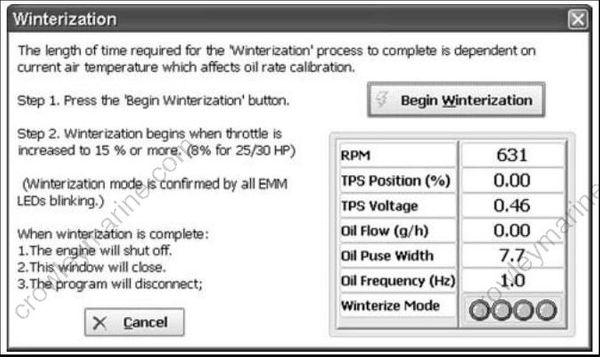

Software Control Method

Winterization can also be run using Evinrude Diagnostics software. With the outboard running, start the process at the Settings/Adjustments screen and follow the instructions.

1. Winterization start button

After the outboard shuts itself off, detach garden hose.

IMPORTANT: When finished, leave the out board in a vertical position long enough to completely drain the cooling system.

• Lubricate throttle plate before placing outboard in storage. Refer to Throttle Plate on p. 61.
• Fill oil reservoir.
• Inspect the fuel filter. If there is debris in the fuel filter, it must be replaced.
• Replace gearcase lubricant.
• Remove and inspect propeller (MRL).
• Clean and grease propeller shaft.
• Lubricate all grease fittings and linkages.
• Inspect outboard, steering system, and con trols. Replace all damaged and worn components.
• Touch up painted surfaces as needed.
• Store outboard in upright (vertical) position.
• Check for fuel leakage.

Failure to check for fuel leakage could allow a leak to go undetected, resulting in fire or explosion.
