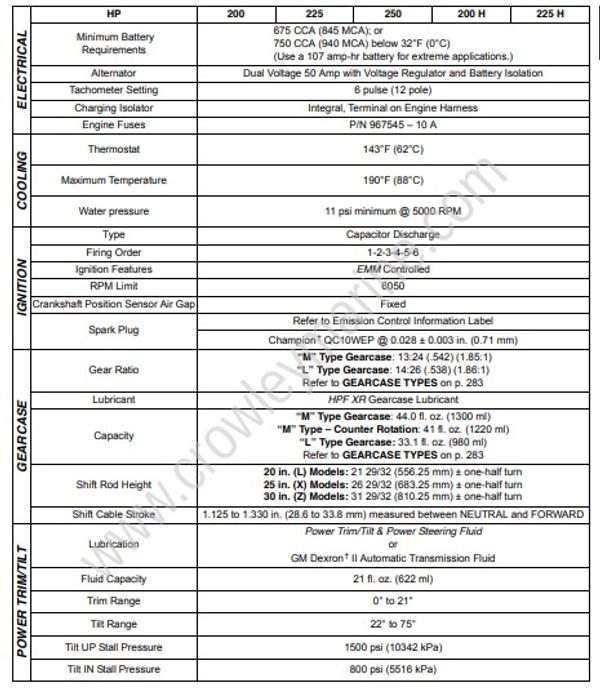

Service Manual 5007215_Evinrude E-TEC 200-250 HP Service Specifications And Special Tools

Standard Torque Chart

IMPORTANT: These values apply only when a specific torque for a specific fastener is not listed in the appropriate section. When tightening two or more screws on the same part, DO NOT tighten screws completely, one at a time.

Torque wrench tightening specifications must be strictly adhered to. Replace any locking fastener (locknut or patch screw) if its locking feature becomes weak. Definite resistance to turning must be felt when reusing a locking fastener.
If replacement is specified or required because the locking fastener has become weak, use only authorized Evinrude/Johnson Genuine Parts.

Diagnostics

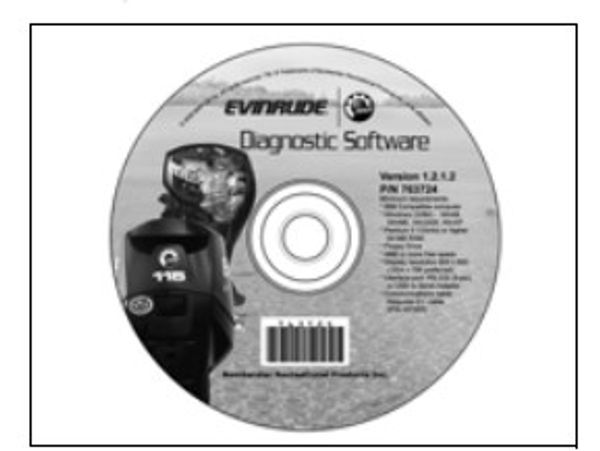

Diagnostic Software for Windows based PC P/N 763724

Bootstrap tool P/N 586551

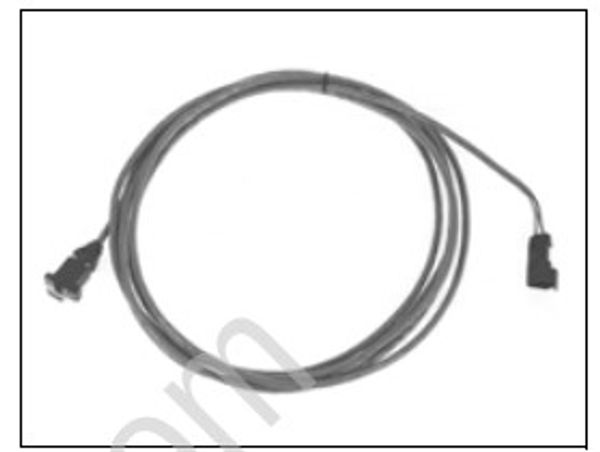

Interface cable P/N 437955

Universal

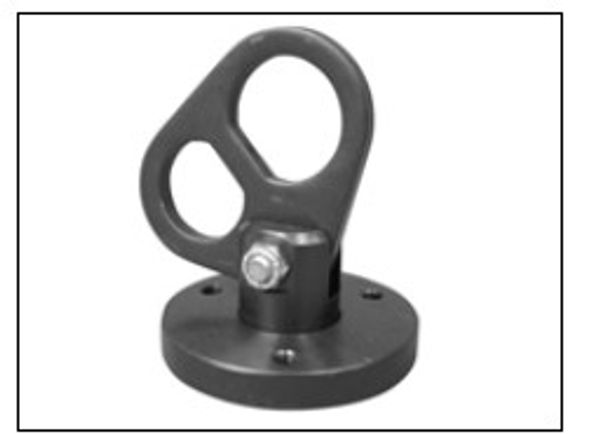

Lifting ring assembly P/N 396748

Flywheel holder P/N 771311

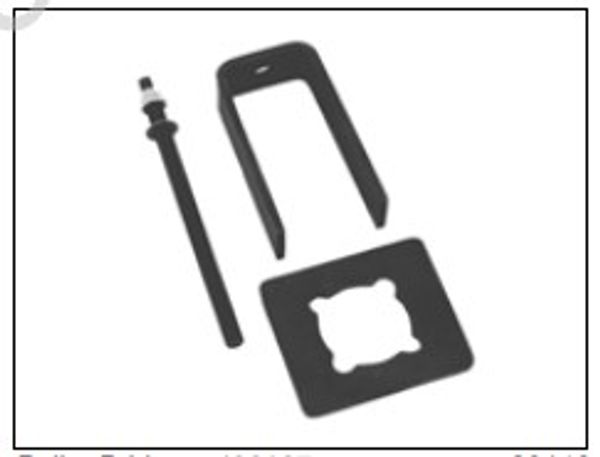

Puller Bridge – 432127

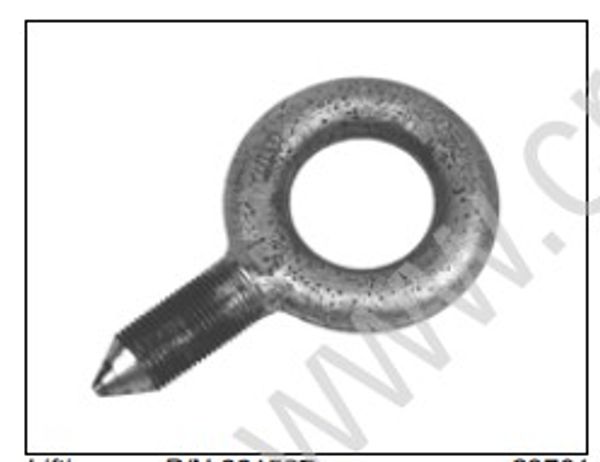

Lifting eye P/N 321537

Large puller jaws P/N 432129

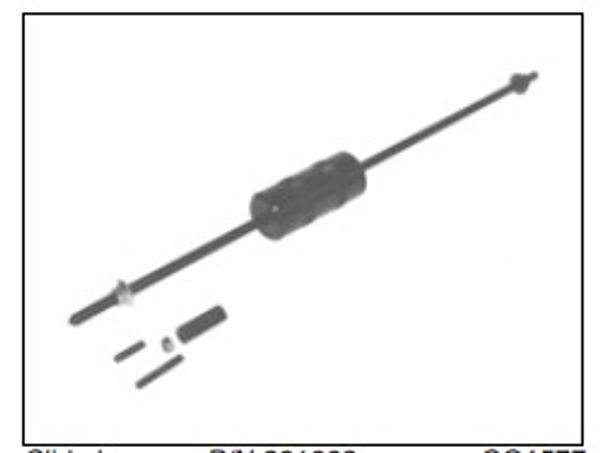

Slide hammer P/N 391008

Universal Puller Set P/N 378103

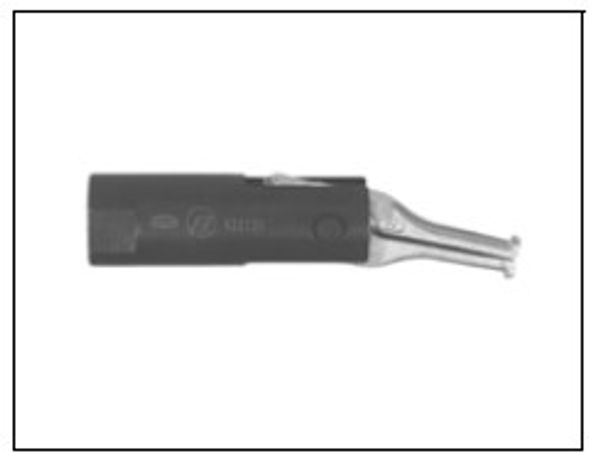

Small puller jaws P/N 432131

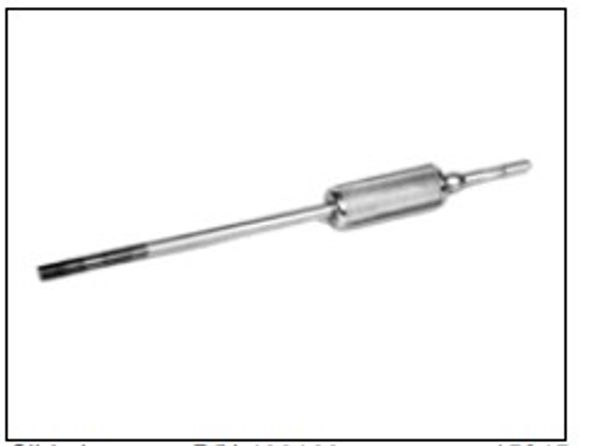

Slide hammer P/N 432128

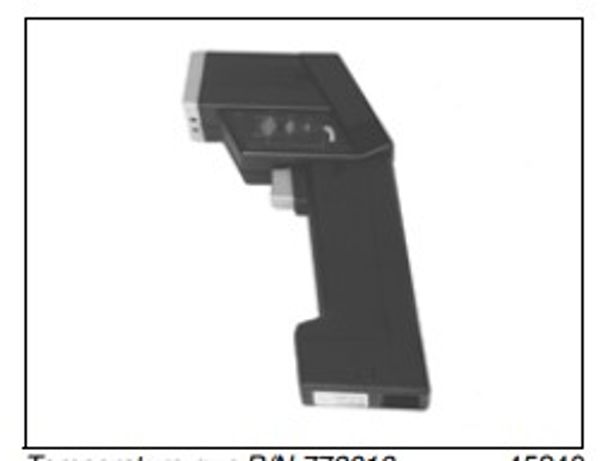

Temperature gun P/N 772018

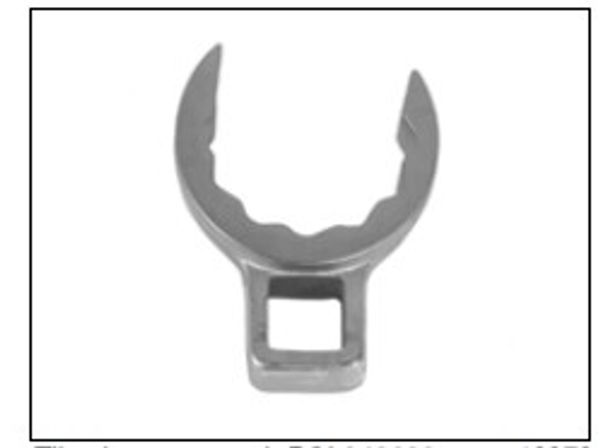

Tilt tube nut wrench P/N 342680

Tilt tube service kit P/N 434523

Electrical / Ignition

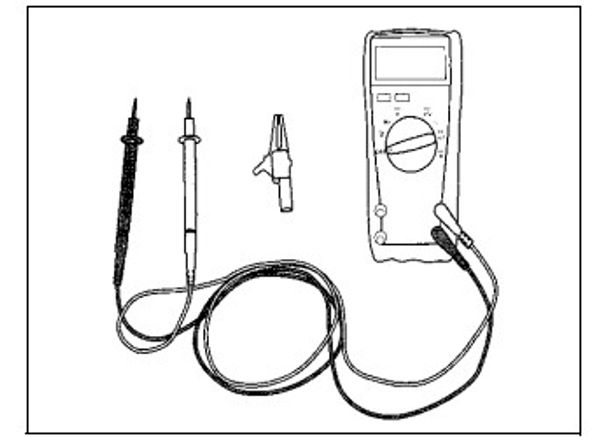

Digital multimeter Ohms resolution 0.01 Purchase through local supplier DRC7265

Peak reading voltmeter P/N 507972

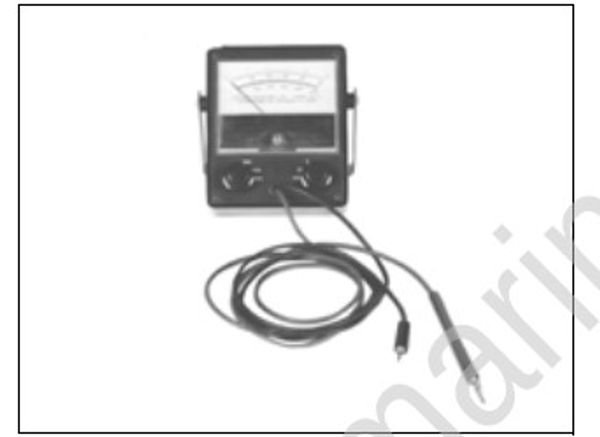

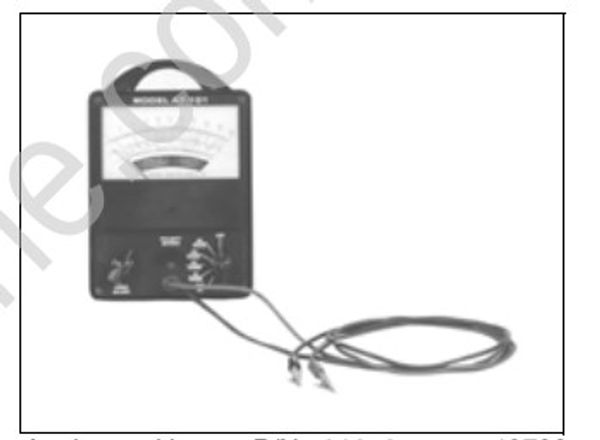

Analog multimeter P/N 501873

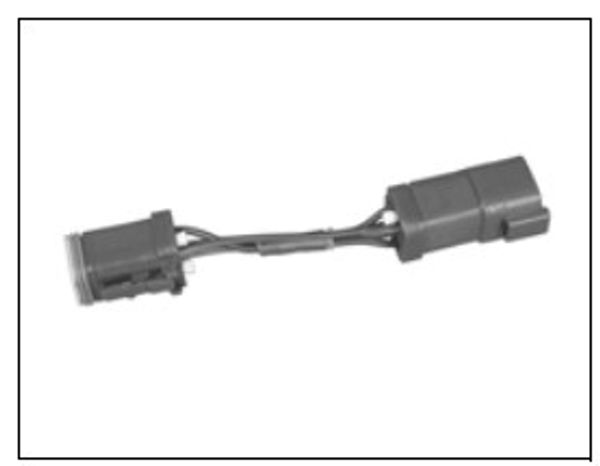

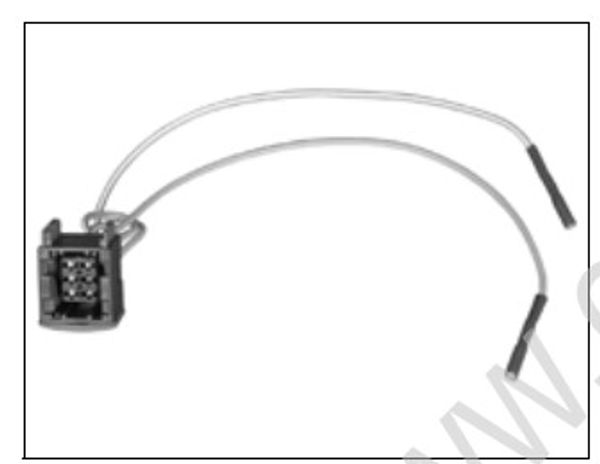

Stator Test Adapter P/N 5006211

Connector tool P/N 342667

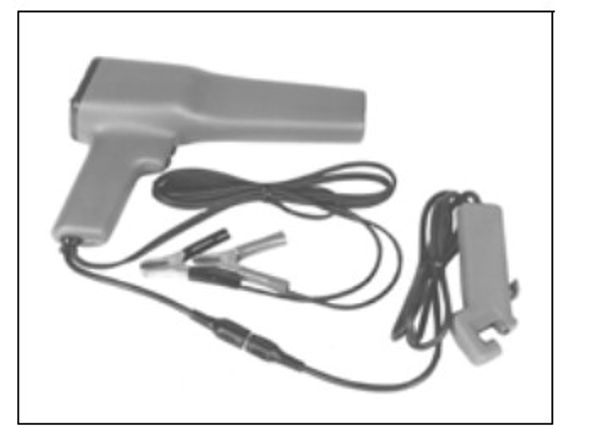

Tachometer/timing light P/N 507980

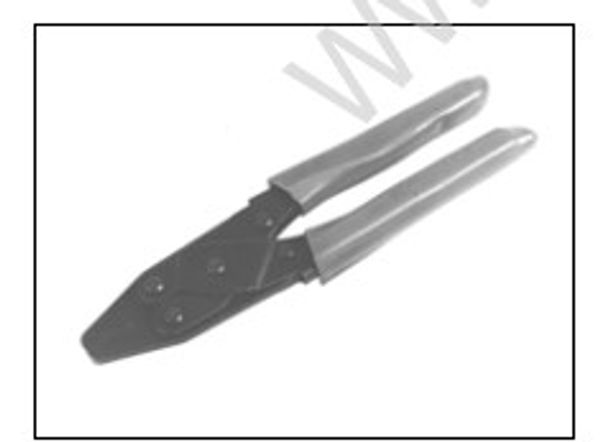

Crimping pliers P/N 322696

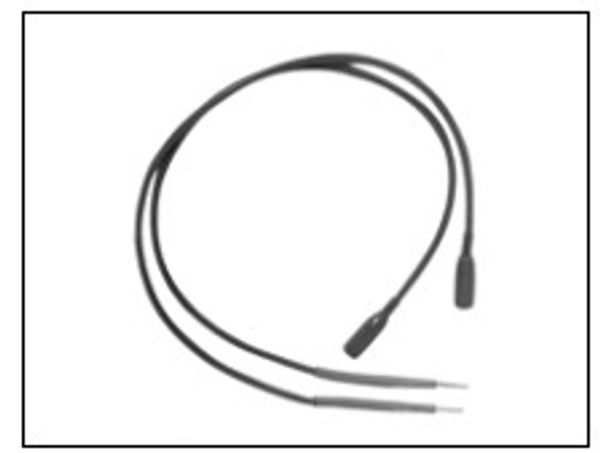

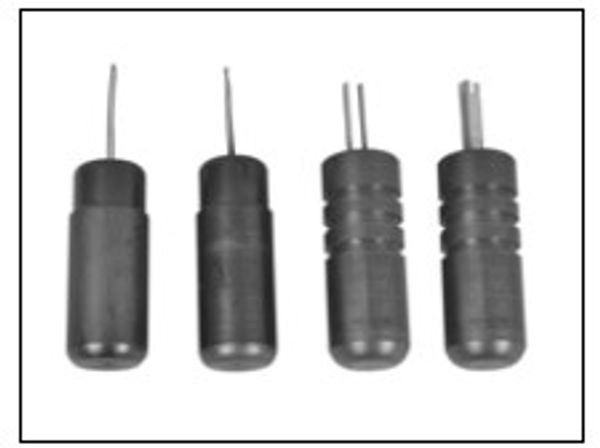

Test probe kit P/N 342677

AMP† connector tools

Primary Lock Tool P/N 777077

Secondary Lock Tool P/N 777078

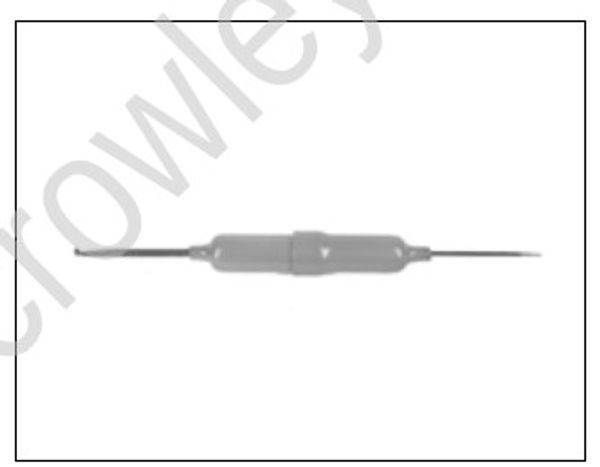

Release Tool P/N 351413

Lock Installer P/N 777079

Fuel/Oil Systems

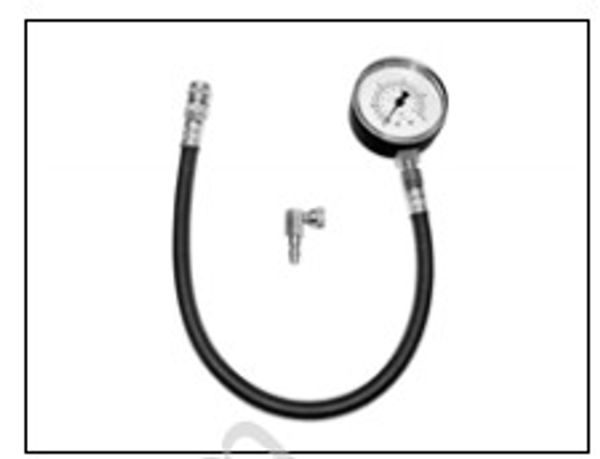

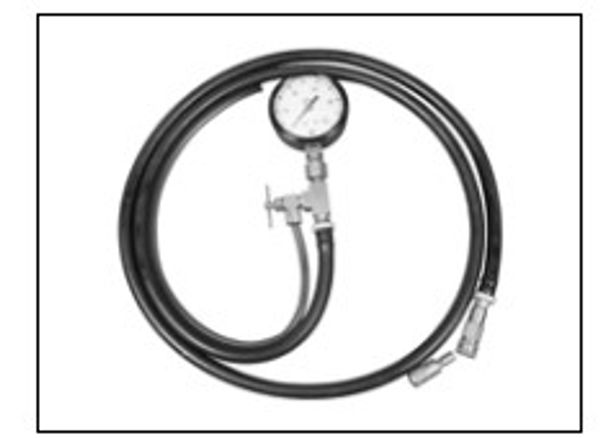

Fuel pressure gauge (100 PSI) P/N 5000902

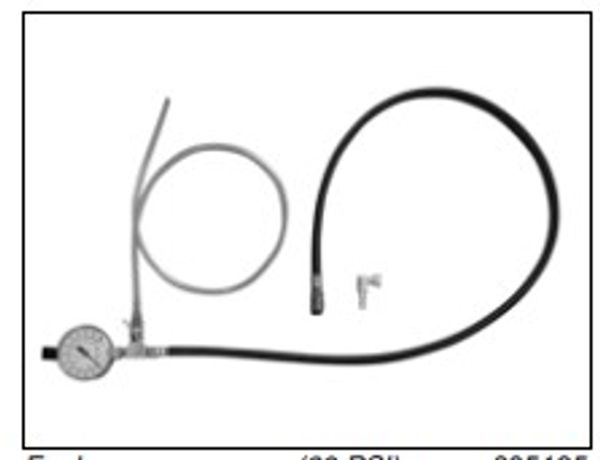

Fuel pressure gauge (60 PSI) P/N 5007100

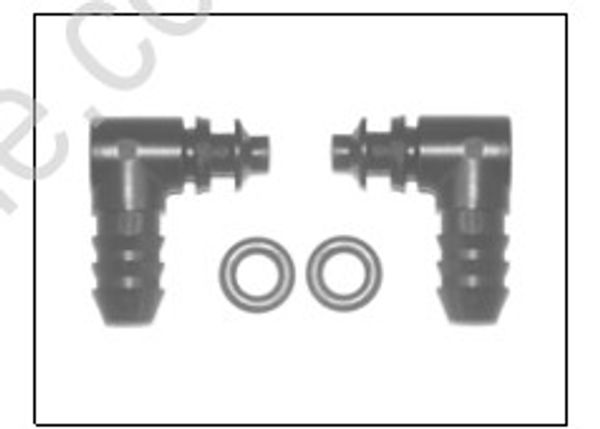

90° fitting, P/N 353322

Fuel pressure gauge (15 PSI)
P/N 5006397
90° fitting, P/N 353322

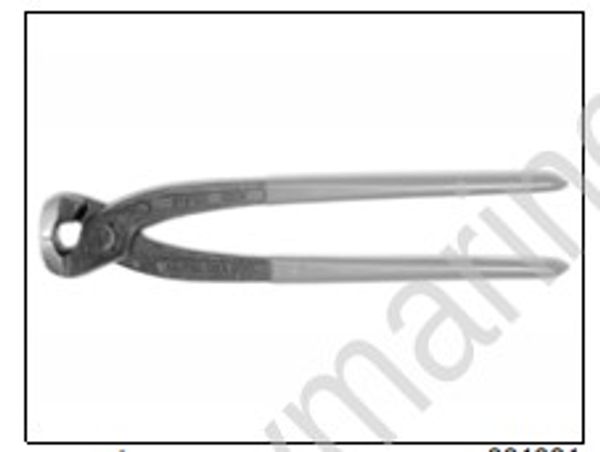

Oetiker† pincers P/N 787145

Injector test fitting kit, P/N 5005844

Powerhead

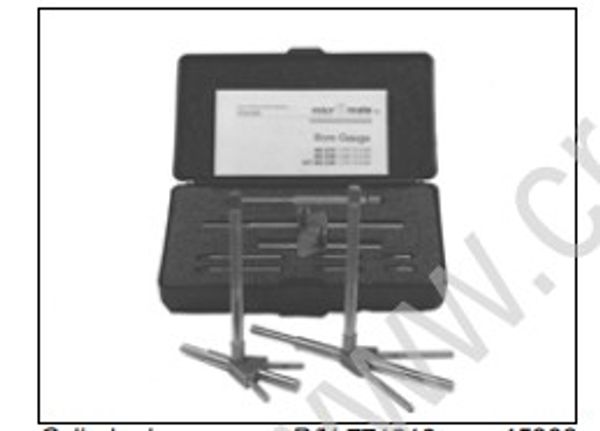

Cylinder bore gauge P/N 771310

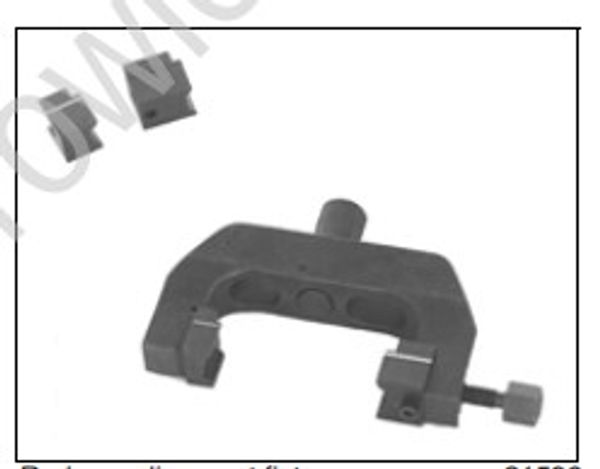

Rod cap alignment fixture P/N 396749

Crankshaft bearing and sleeve installer P/N 338649

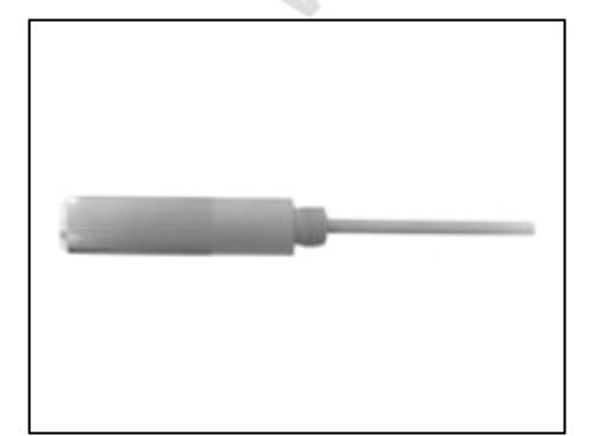

Piston stop tool P/N 342679

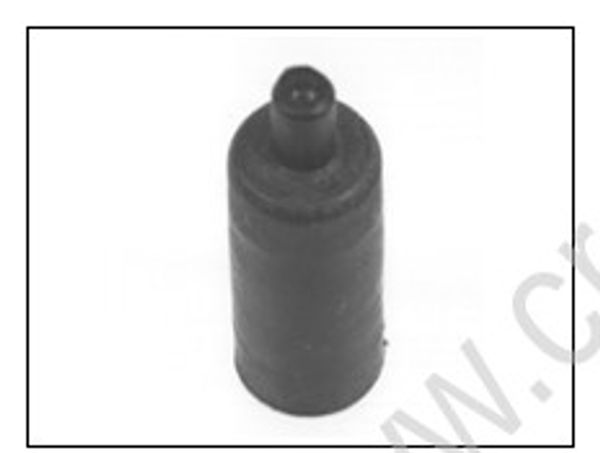

Replacement tip P/N 5006098

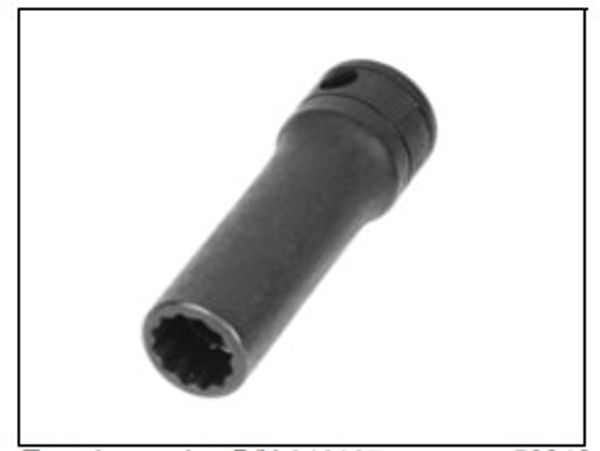

Torquing socket P/N 346187

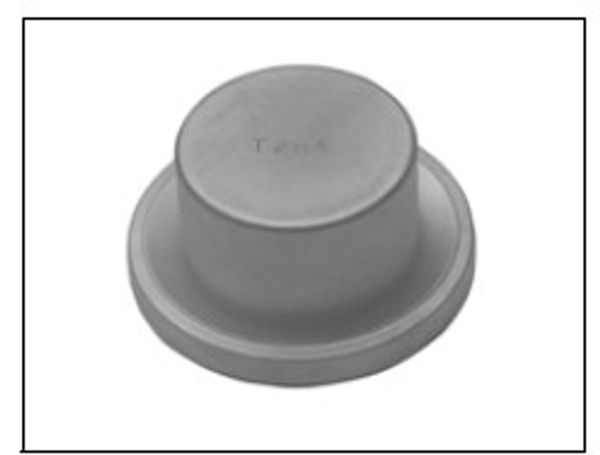

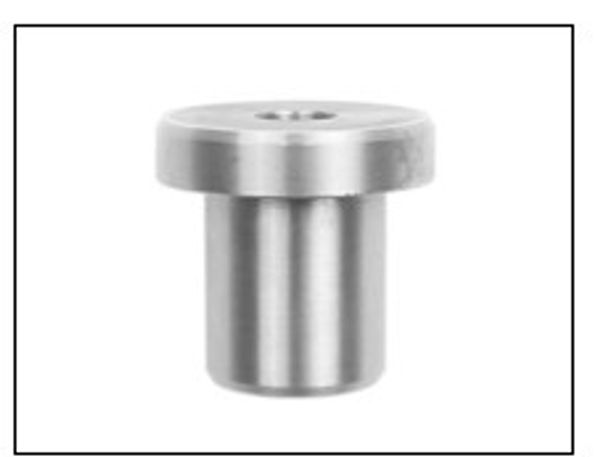

Seal installation tool P/N 325453

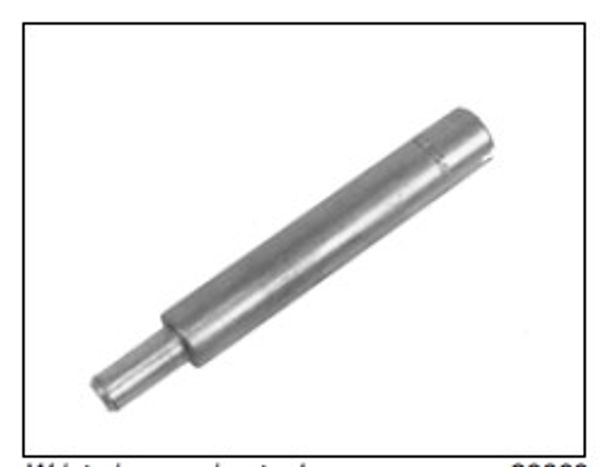

Wrist pin bearing installer P/N 338646

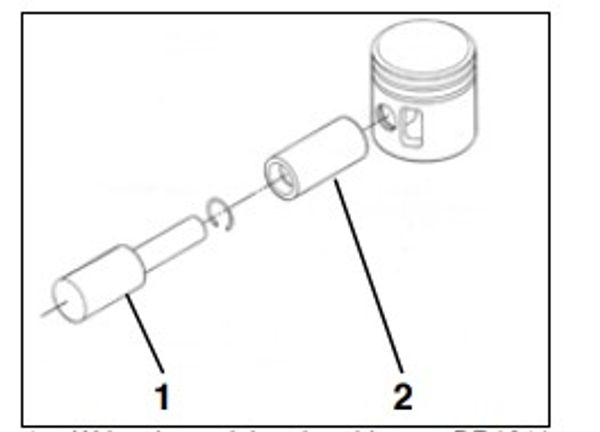

Wrist pin pressing tool P/N 396747

1. Wrist pin retaining ring driver P/N 396747
2. Wrist pin cone P/N 331913

Gearcase

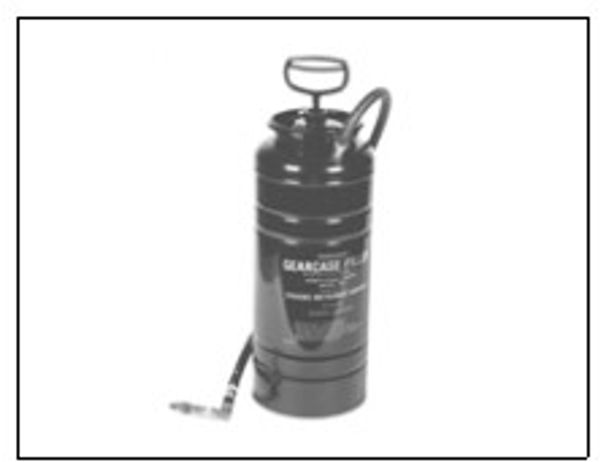

Gearcase filler P/N 501882

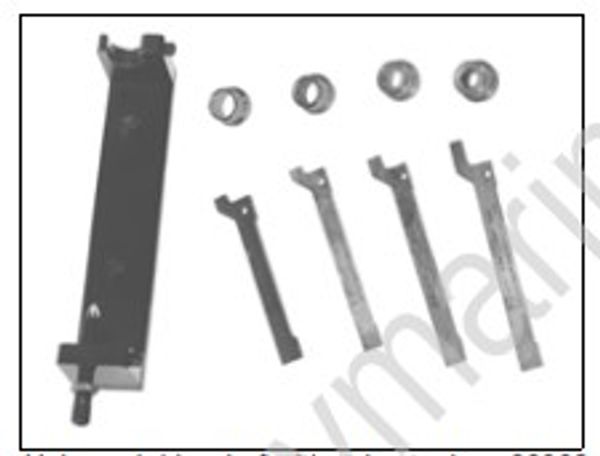

Universal driveshaft shimming tool P/N 393185

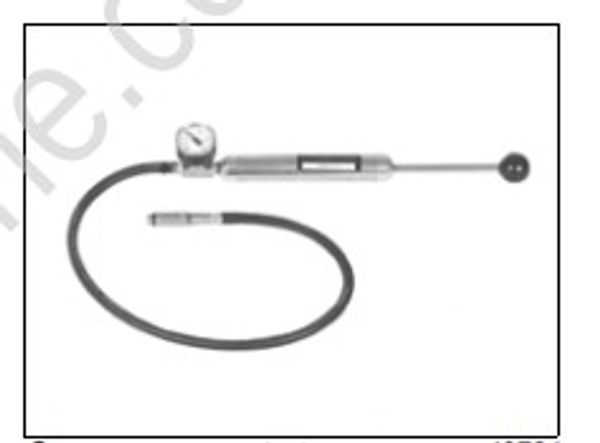

Gearcase pressure tester P/N 507977 (Stevens P/N S-34)
Gearcase vacuum tester P/N 507982 (Stevens P/N V-34)

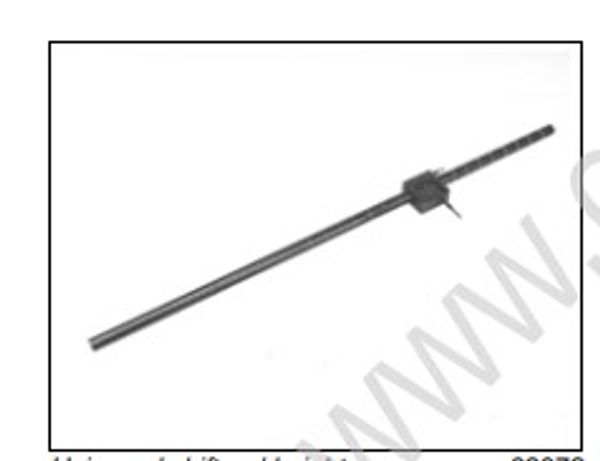

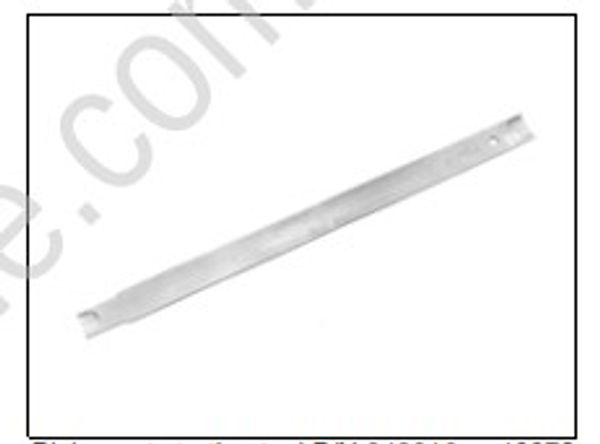

Universal shift rod height gauge P/N 389997

1. Collar P/N 341440
2. Gauge bar M-type gearcases P/N 349957

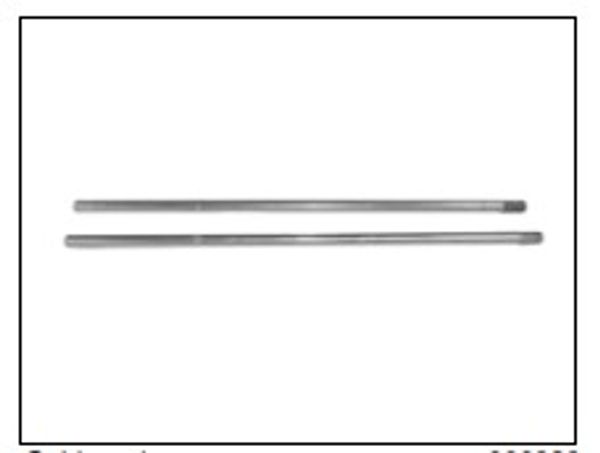

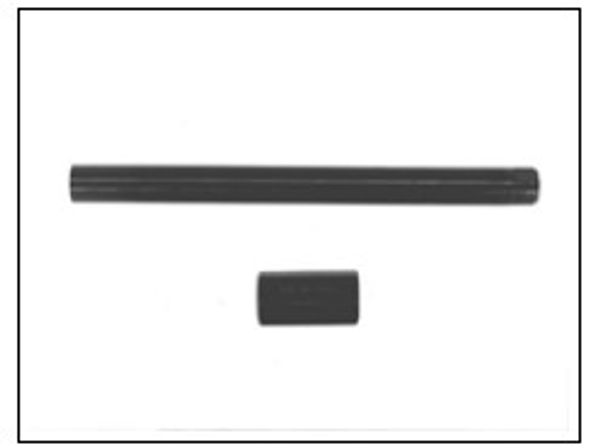

Guide rods P/N 383175

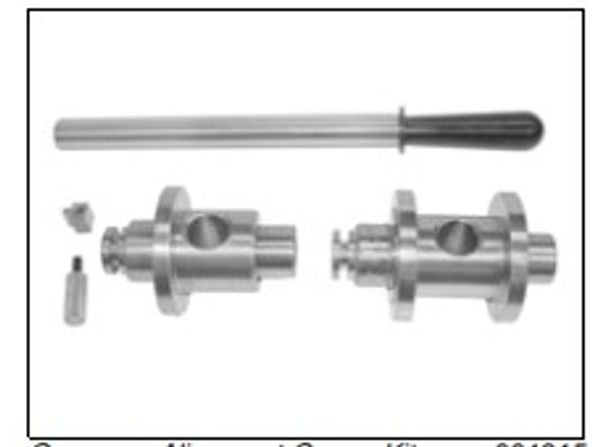

Gearcase Alignment Gauge Kit P/N 5006349

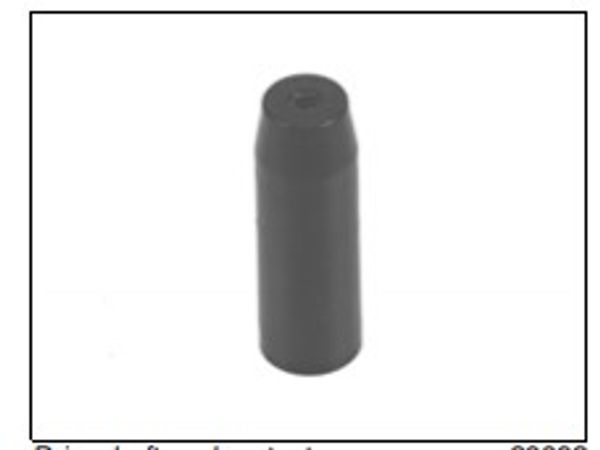

Driveshaft seal protector P/N 31867

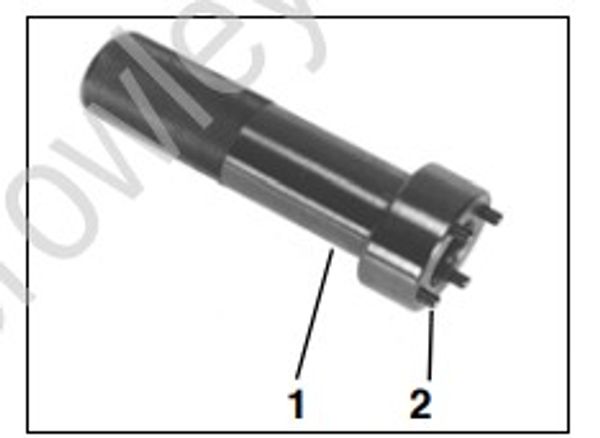

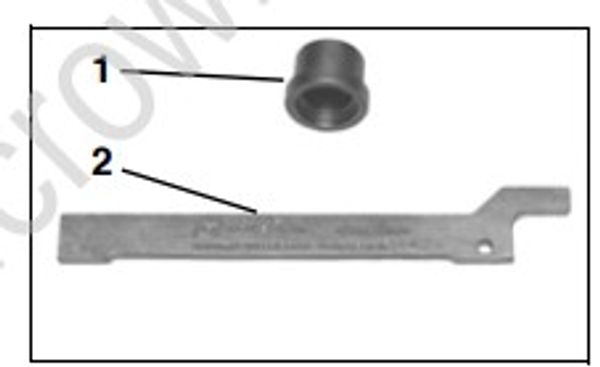

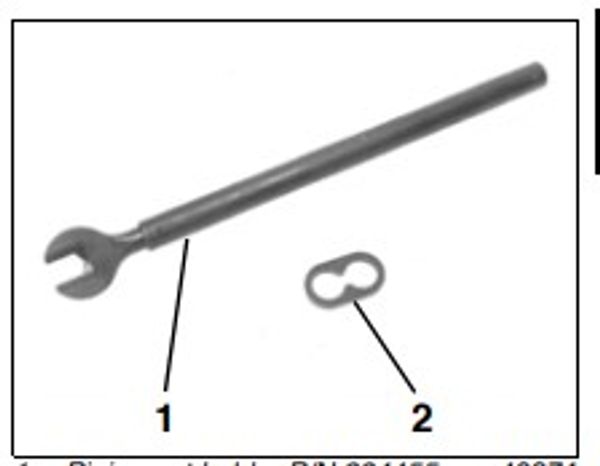

1. Pinion nut holder P/N 334455
2. Wrench retainer P/N 341438

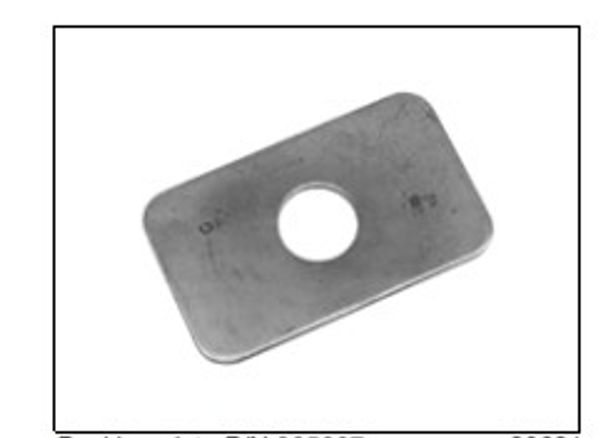

Backing plate P/N 325867

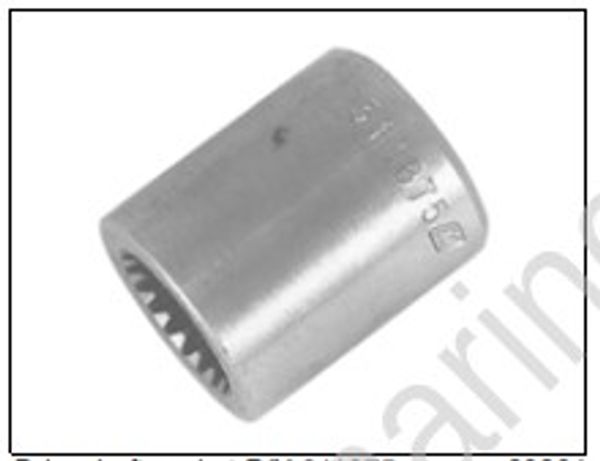

Driveshaft socket P/N 311875

Pinion nut starting tool P/N 342216

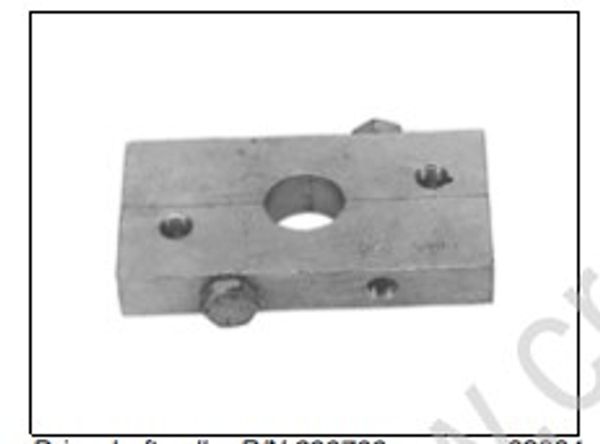

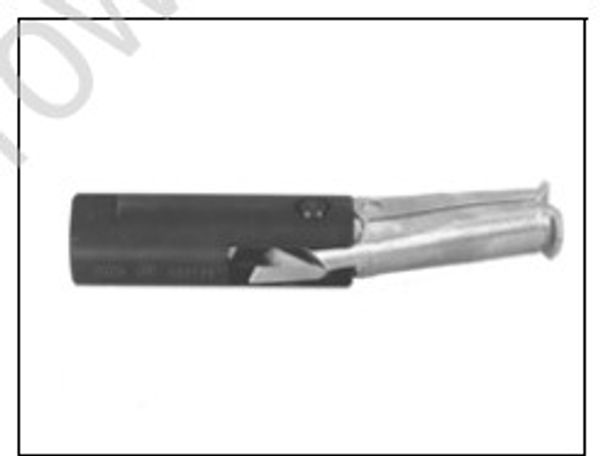

Driveshaft puller P/N 390706

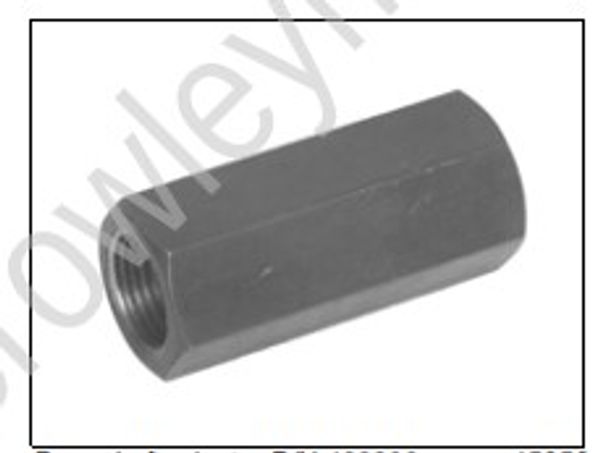

Prop shaft adapter P/N 432398

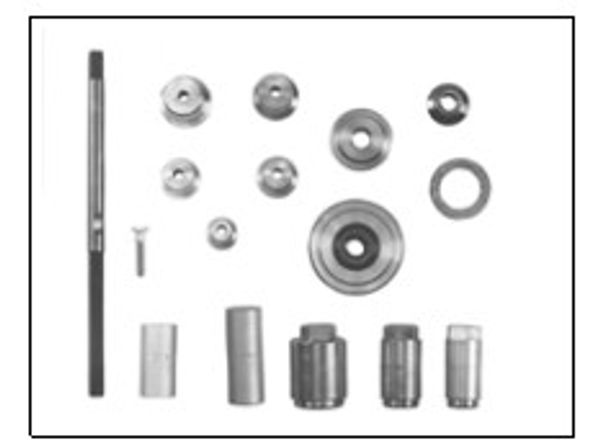

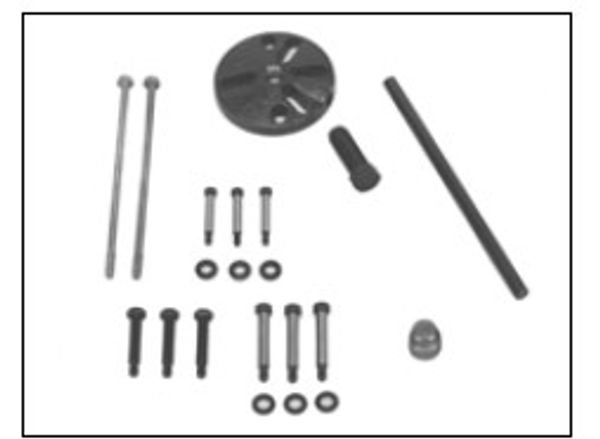

Universal pinion bearing remover and installer kit P/N 391257

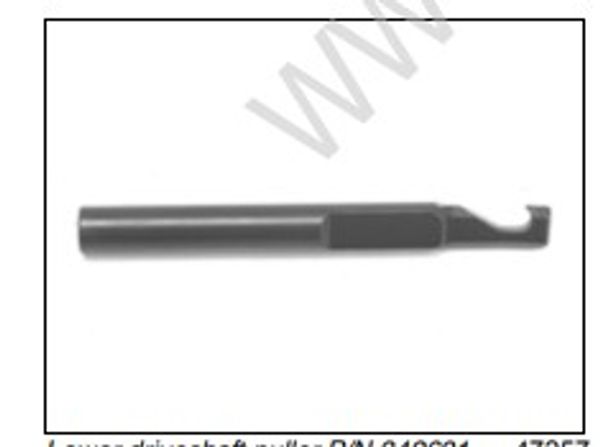

Lower driveshaft puller P/N 342681

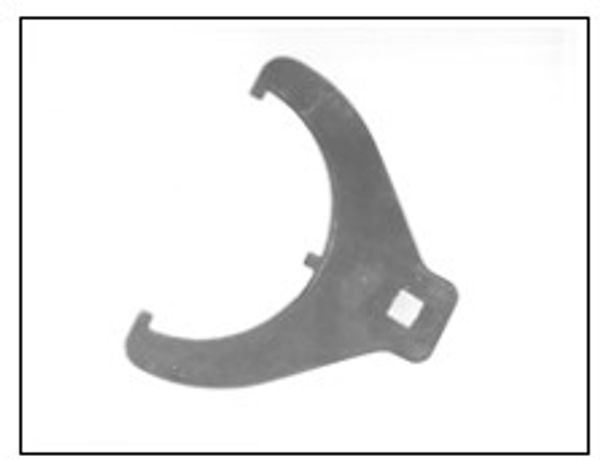

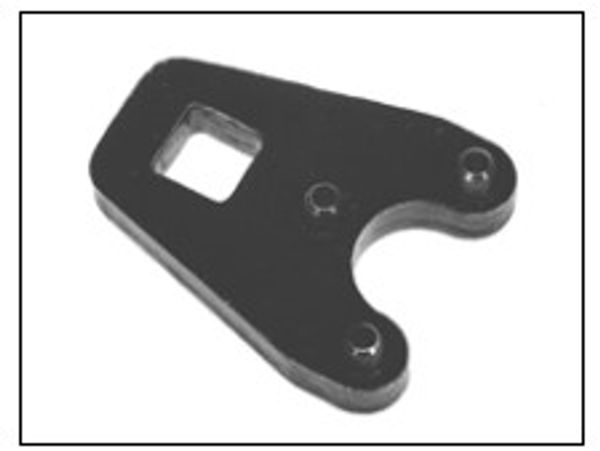

Spanner wrench P/N 432400

Pinion bearing installer P/N 350958

Bearing Installation Tool P/N 339778

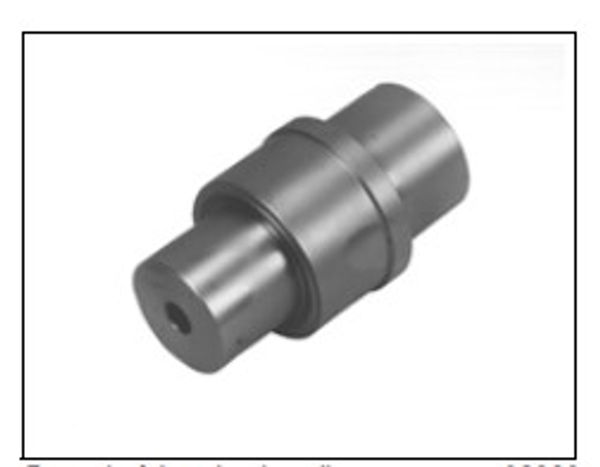

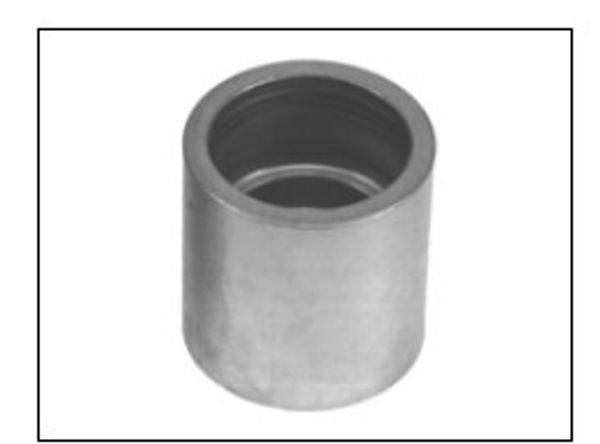

Prop shaft bearing installer P/N 432401

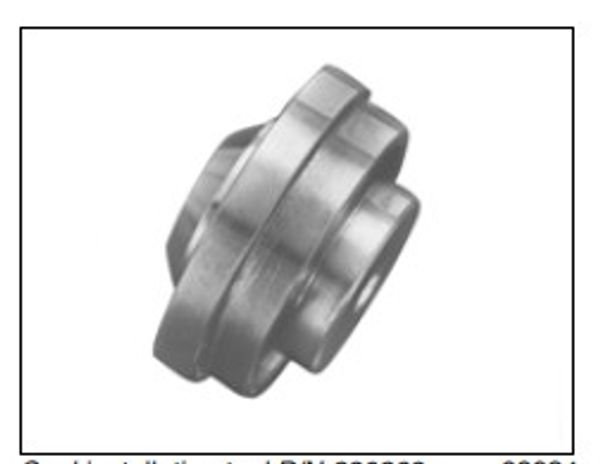

Seal installation tool P/N 330268

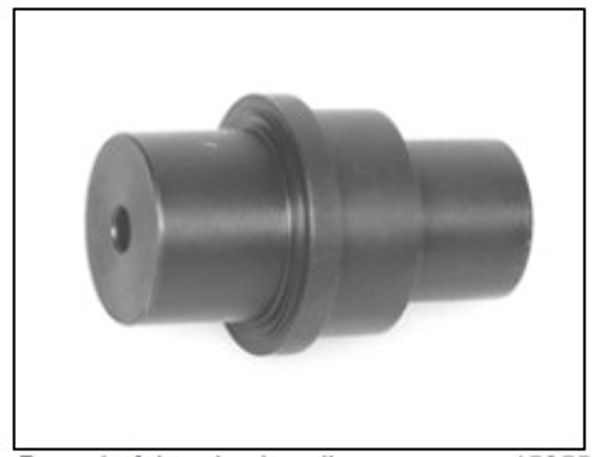

Prop shaft bearing installer P/N 339750

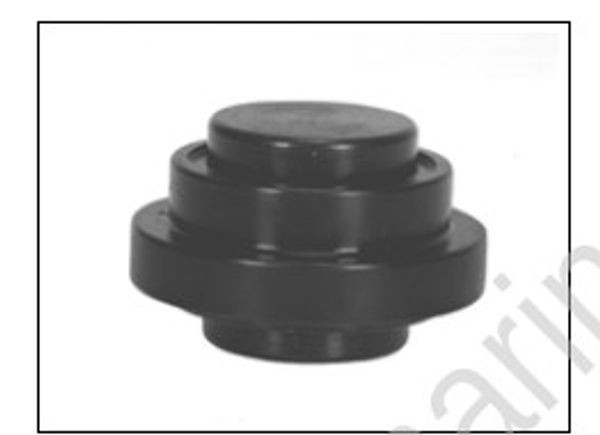

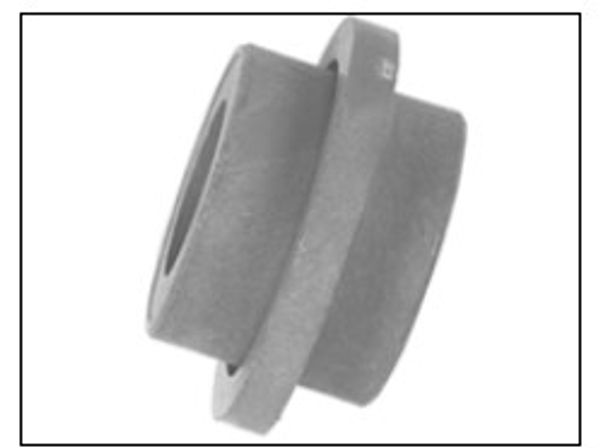

Prop shaft housing seal installer P/N 336311

Trim and Tilt

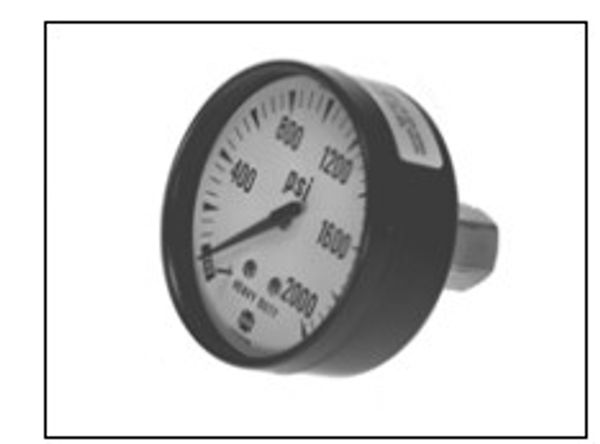

Gauge and collar assembly P/N 983975

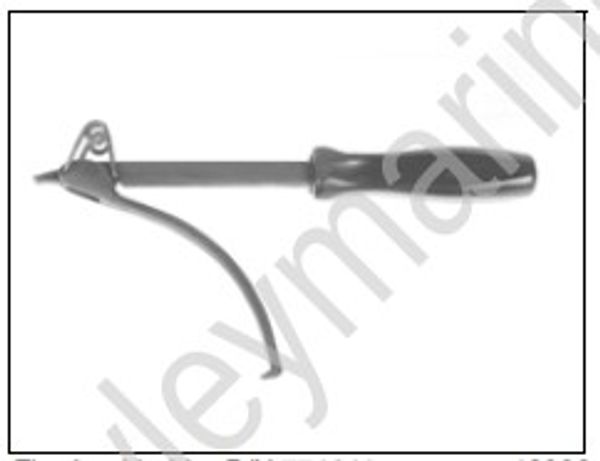

Tilt cylinder end cap remover P/N 326485

Trim/tilt service kit P/N 390010

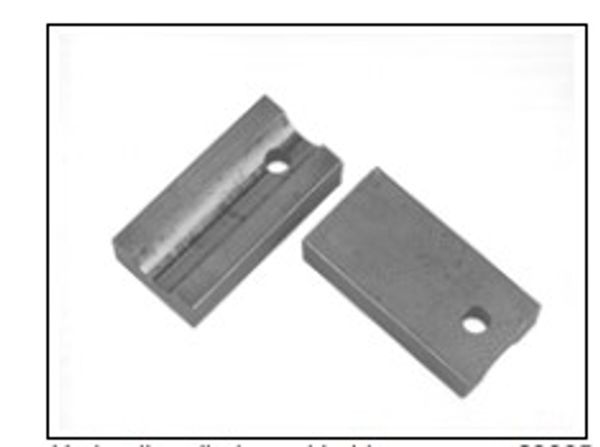

Hydraulic cylinder rod holder P/N 983213

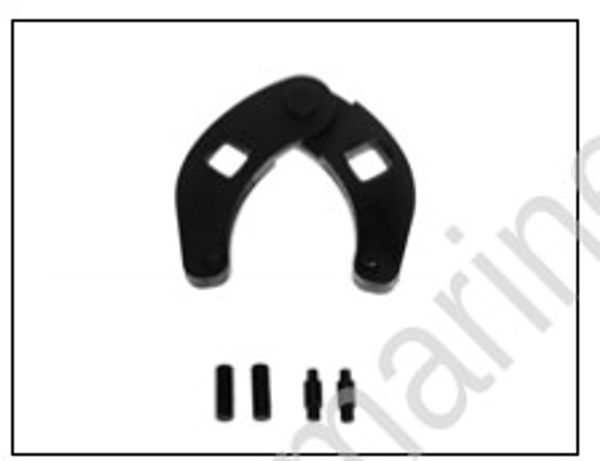

Universal spanner wrench P/N 912084

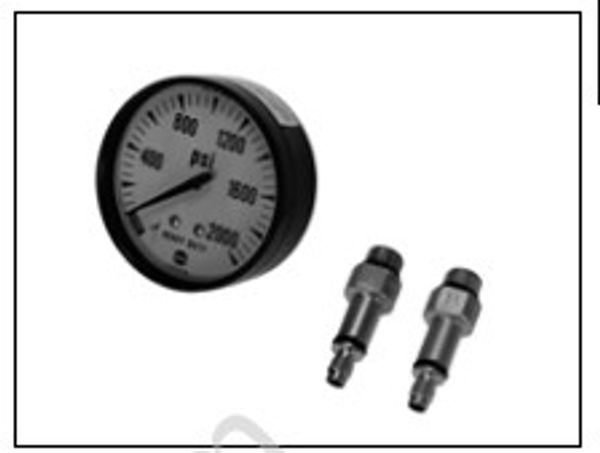

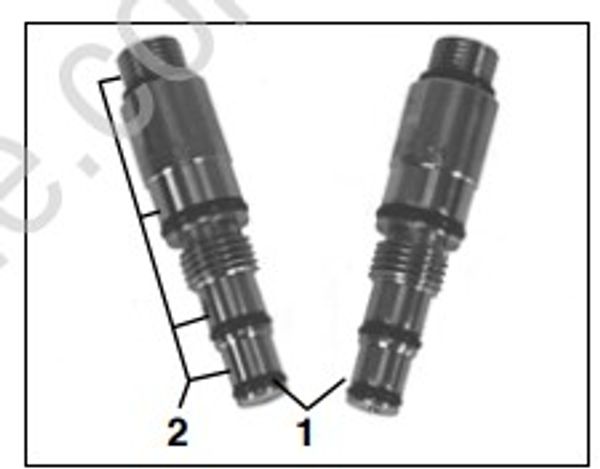

1. Trim/tilt service kit P/N 434524
2. Replacement O-ring kit for adapter tips P/N 434729

Tilt cylinder seal protector P/N 326005

1. Trim cylinder end cap remover/installer P/N 436710
2. Replacement tip for 436710

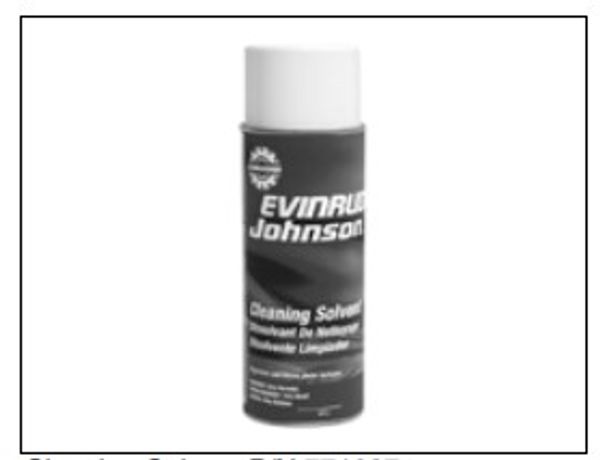

Cleaning Solvent P/N 771087

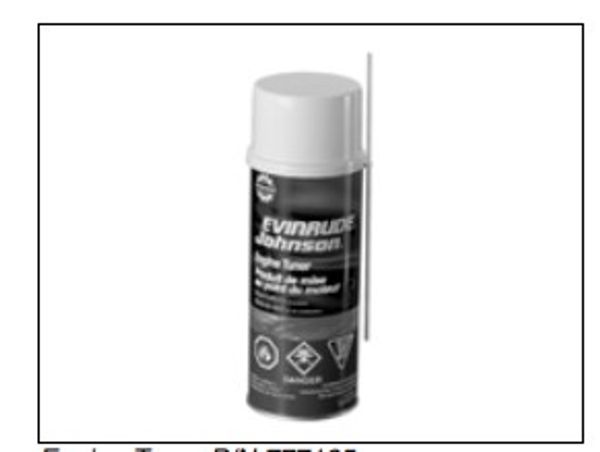

Engine Tuner P/N 777185

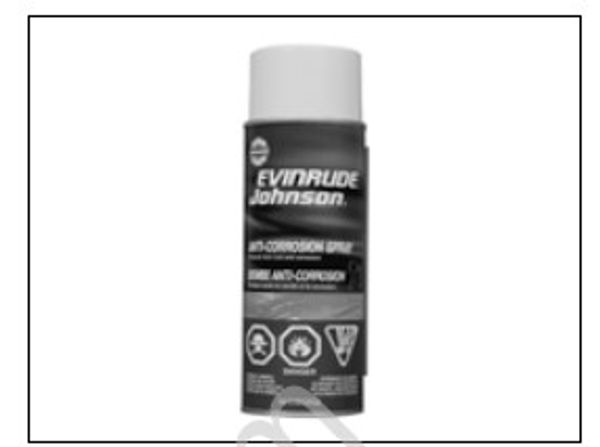

Anti-Corrosion Spray P/N 777193

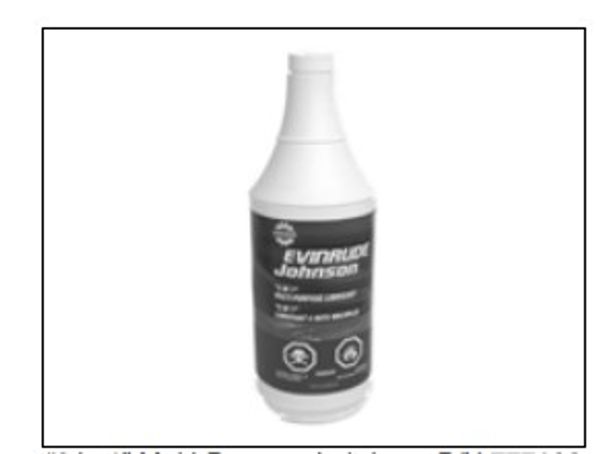

6 in 1” Multi-Purpose Lubricant P/N 777192

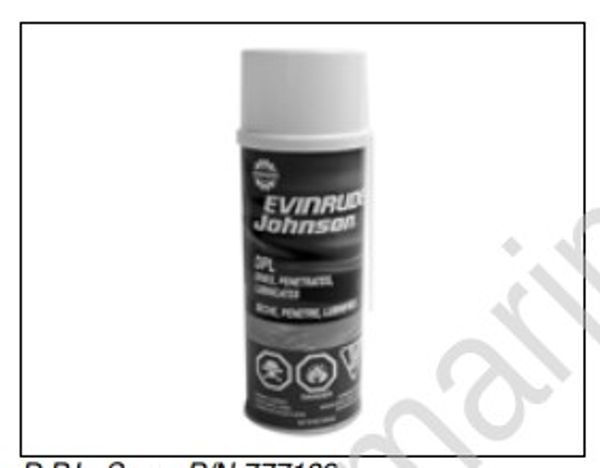

D.P.L. Spray P/N 777183

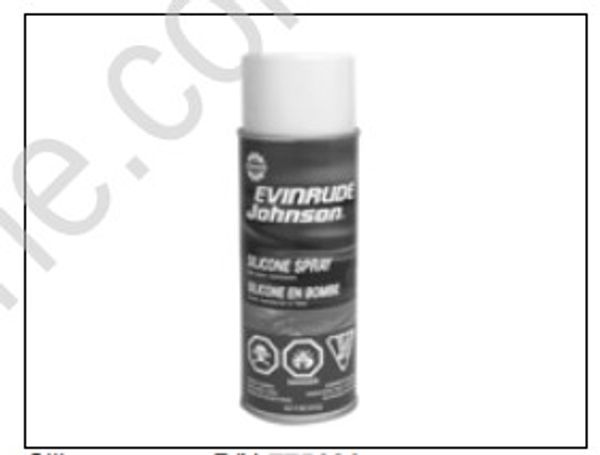

Silicone spray P/N 775630

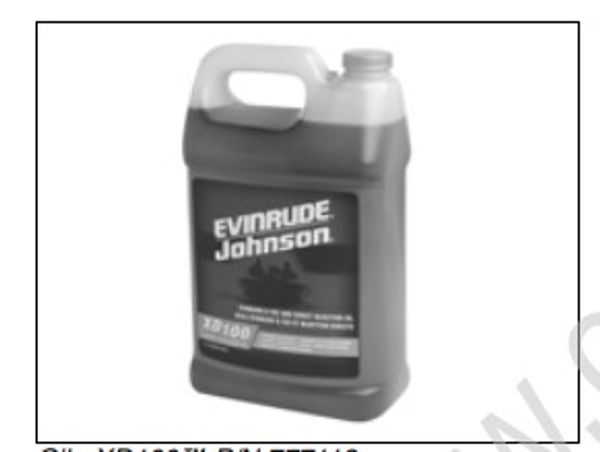

Oil - XD100™ P/N 777118

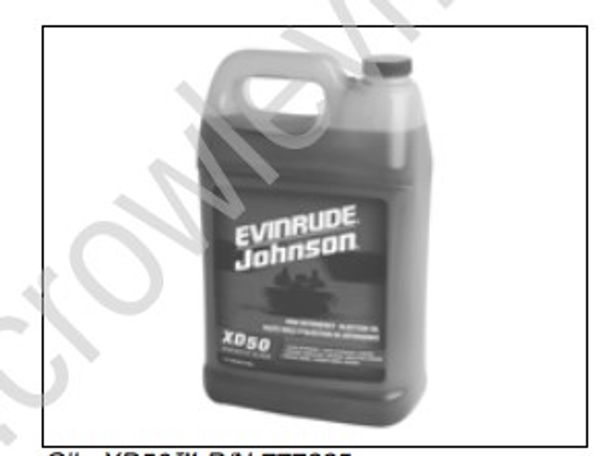

Oil - XD50™ P/N 777225

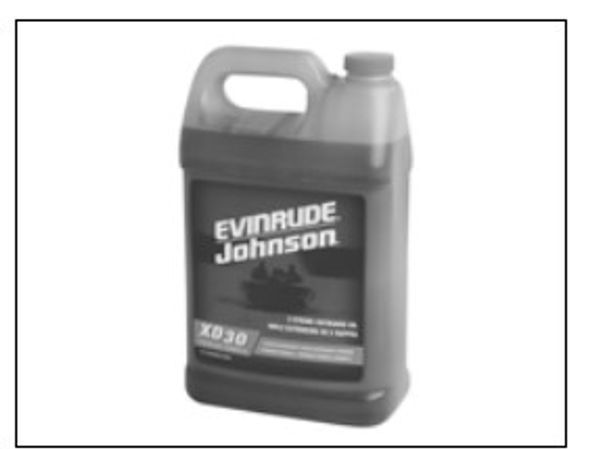

Oil - XD30™ P/N 777219

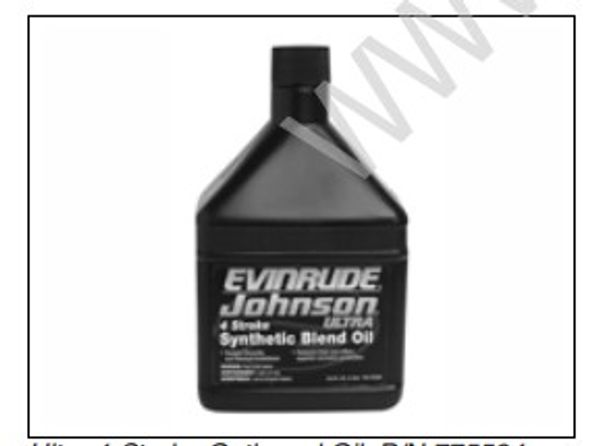

Ultra 4-Stroke Outboard Oil, P/N 775594

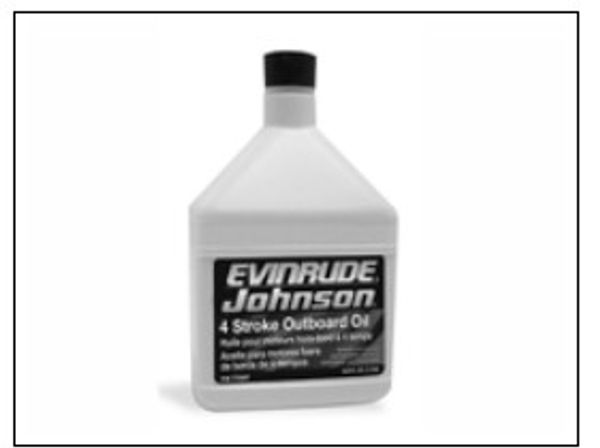

4-Stroke Outboard Oil, P/N 775597

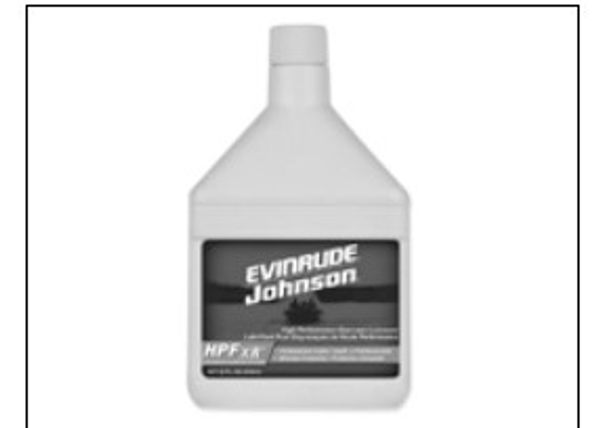

HPF XR™ Gear Lube P/N 778747

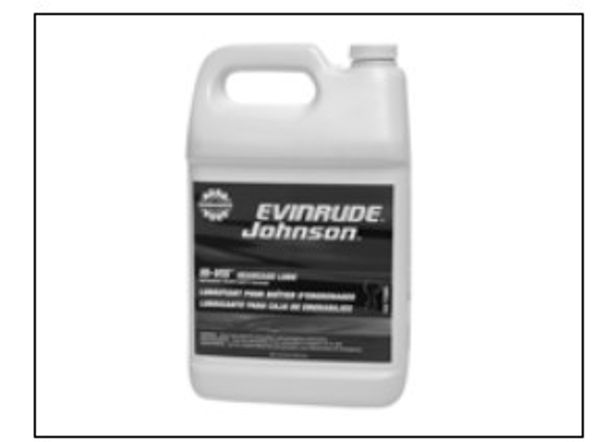

HI-VIS™ Gearcase Lube P/N 775605

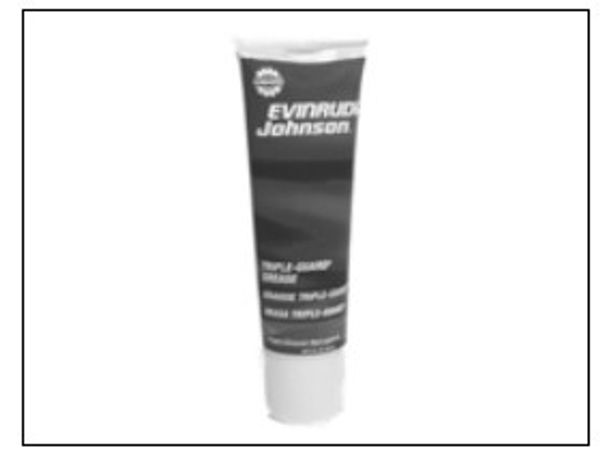

Triple-Guard® Grease P/N 508298

Extreme Pressure Grease™ P/N 508303

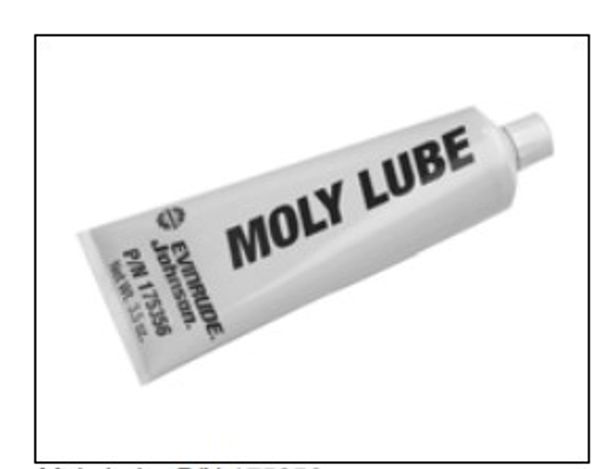

Moly Lube P/N 175356

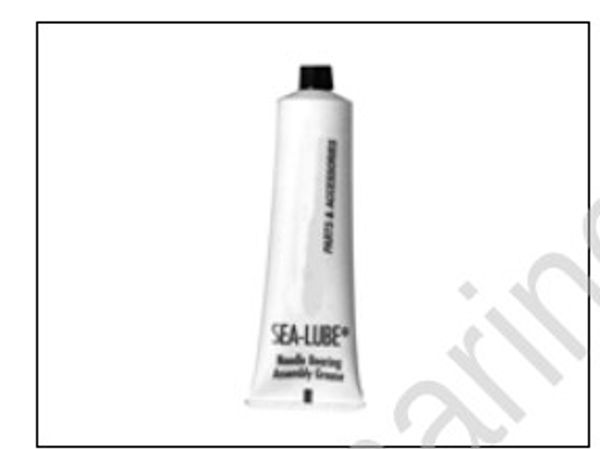

Needle Bearing Grease, P/N 378642

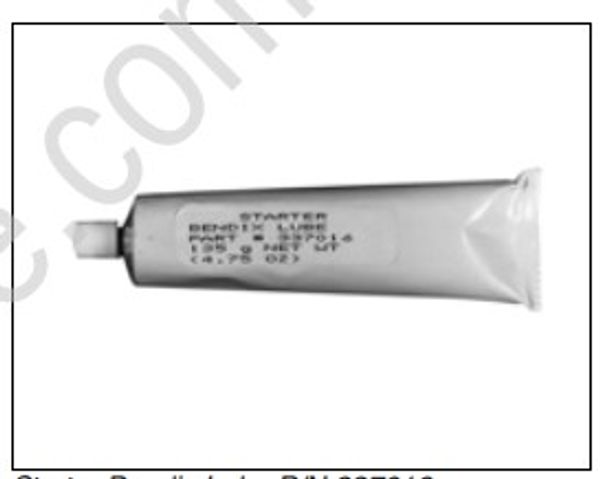

Starter Bendix Lube P/N 337016

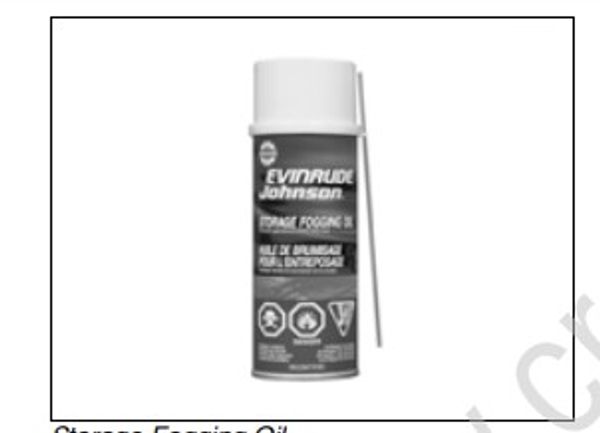

Storage Fogging Oil P/N 777186

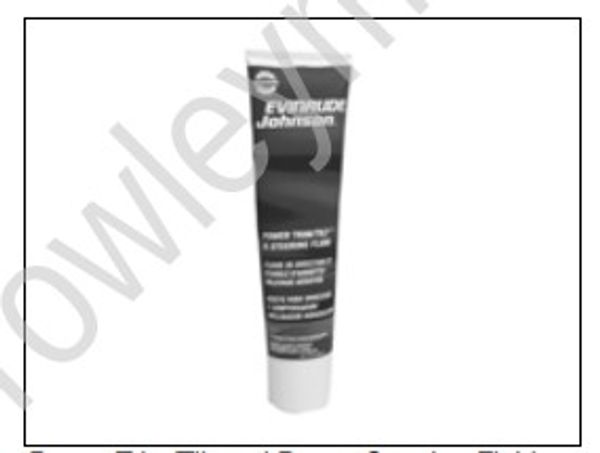

Power Trim/Tilt and Power Steering Fluid P/N 775612

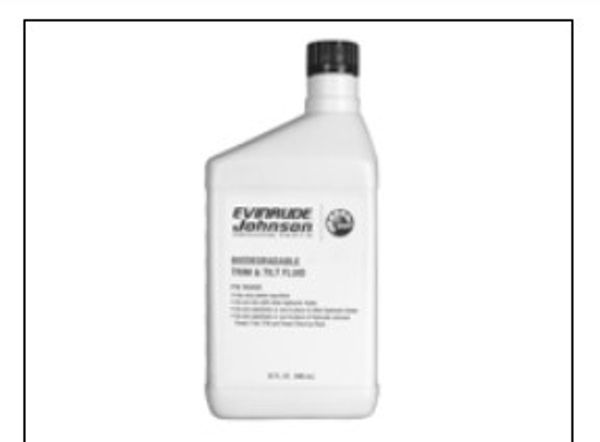

Biodegradeable TNT Fluid P/N 763439

Lubriplate† 777 P/N 317619

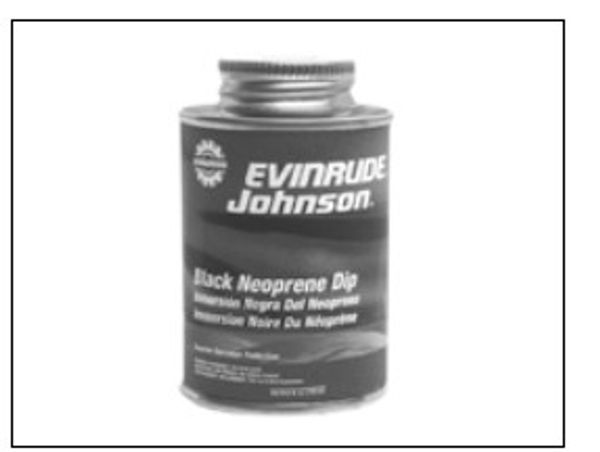

Black Neoprene Dip P/N 909570

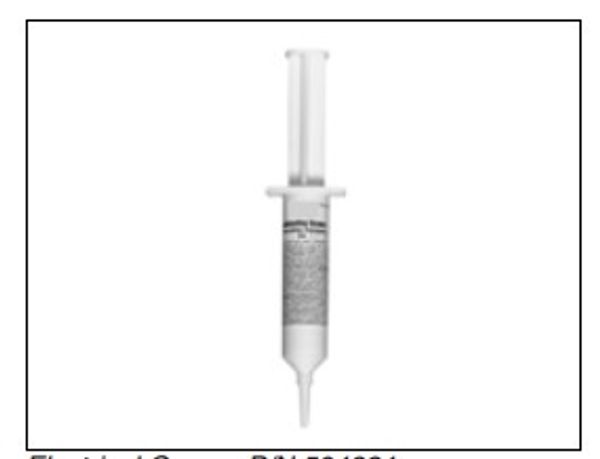

Electrical Grease P/N 504824

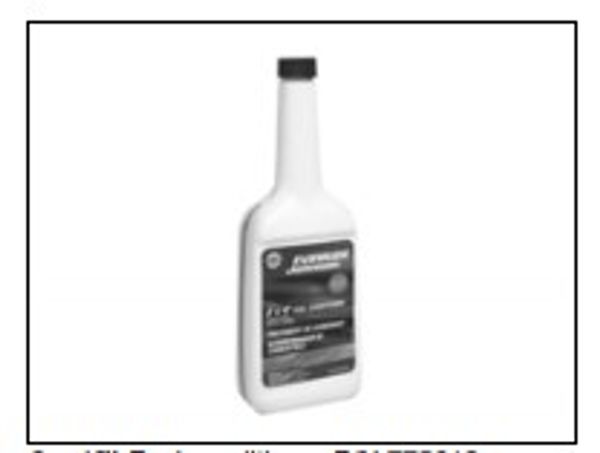

2 + 4™ Fuel conditioner P/N 775613

Fuel System Cleaner P/N 777184

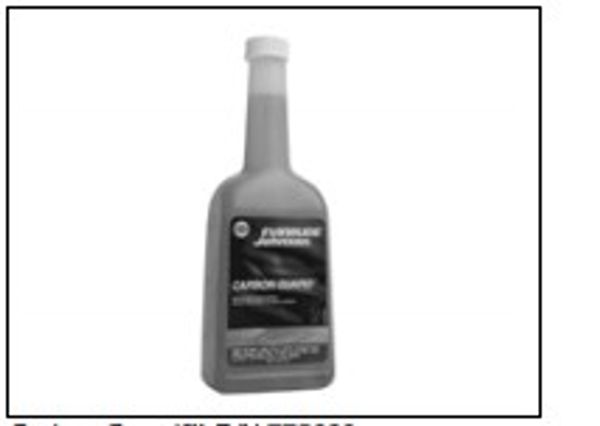

Carbon Guard™ P/N 775629

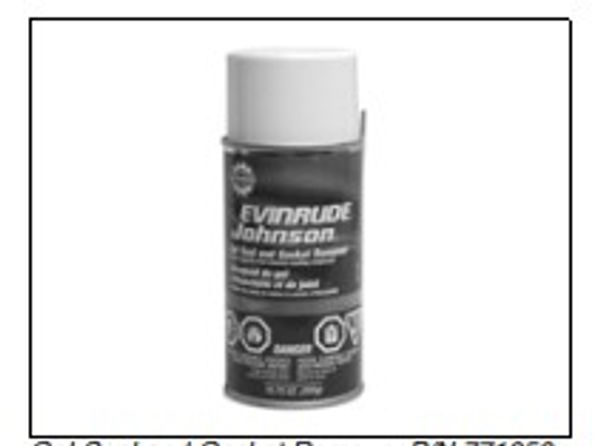

Gel-Seal and Gasket Remover P/N 771050

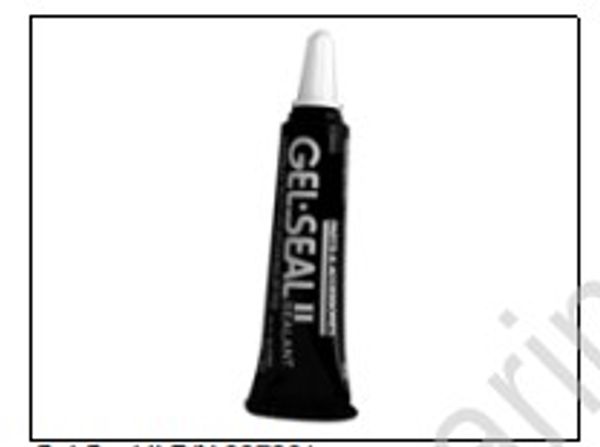

Gel·Seal II P/N 327361

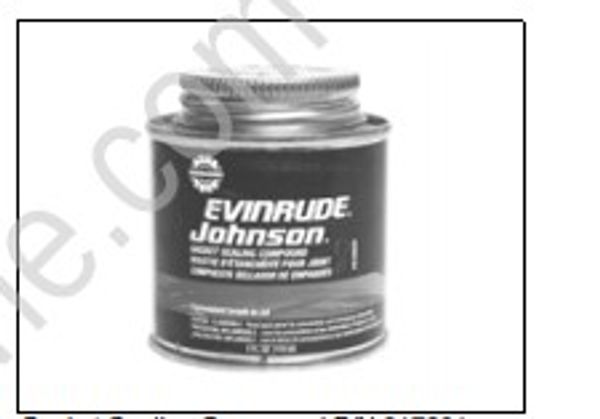

Gasket Sealing Compound P/N 317201

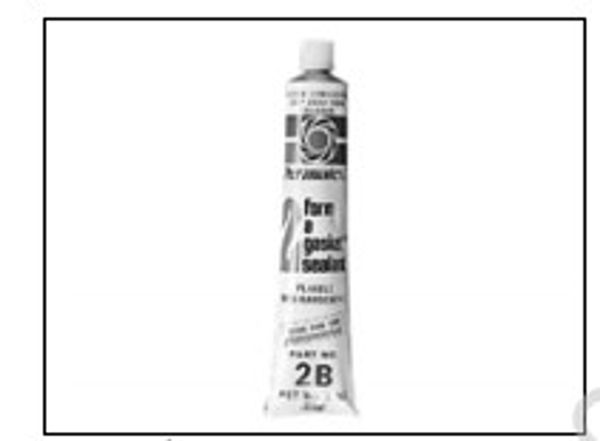

Permatex† No. 2, P/N 910032

ThreeBond† 1104, P/N 351052

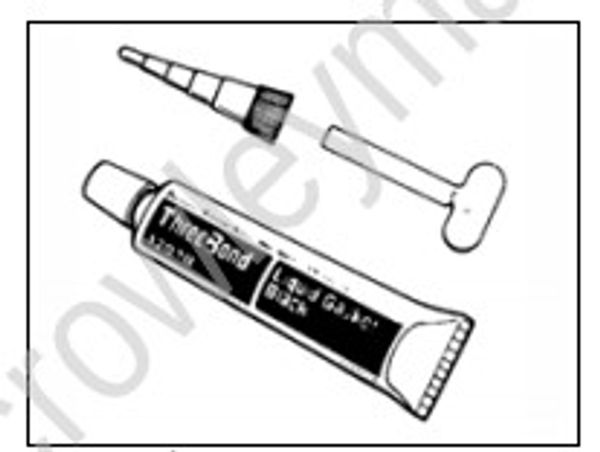

ThreeBond 1207B, P/N 351053

Pipe Sealant with Teflon P/N 910048

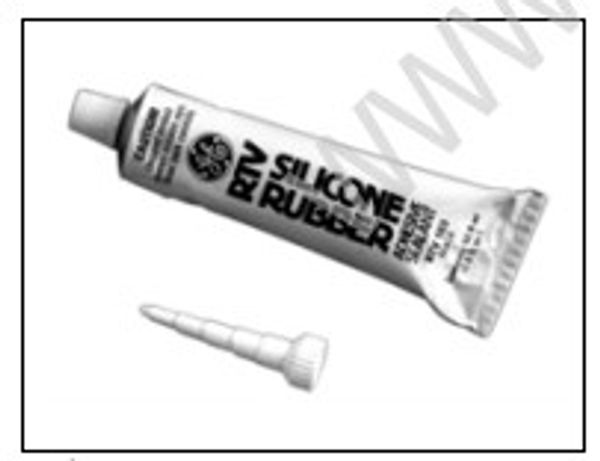

GE† RTV Silicone Sealant P/N 263753

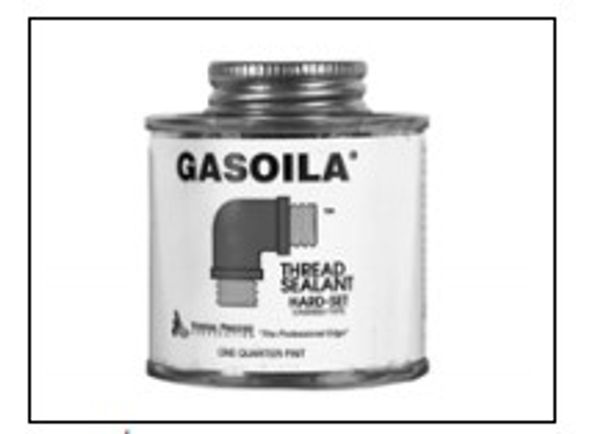

Gasoila† Thread Sealant P/N 200763

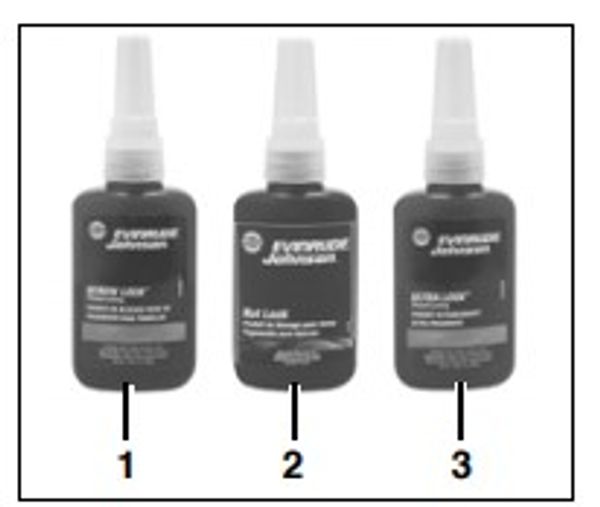

1. Screw Lock P/N 500417 (Loctite† Purple 222 equivalent)
2. Nut Lock P/N 500421 (Loctite Blue 242 Equivalent)
3. Ultra Lock P/N 500423 (Loctite Red 271 Equivalent)

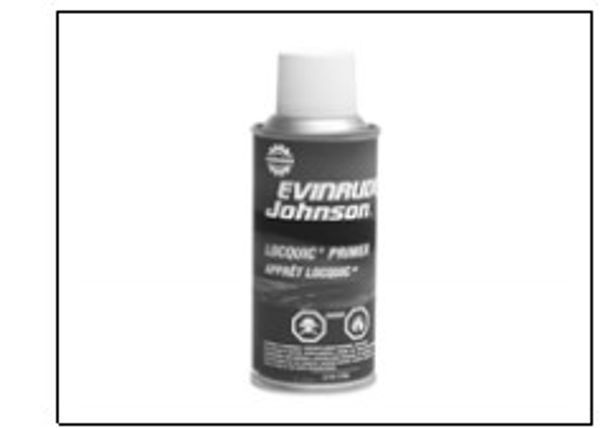

Locquic Primer P/N 772032

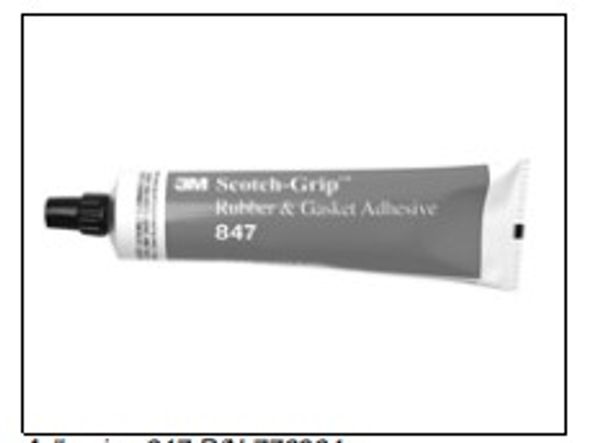

Adhesive 847 P/N 776964

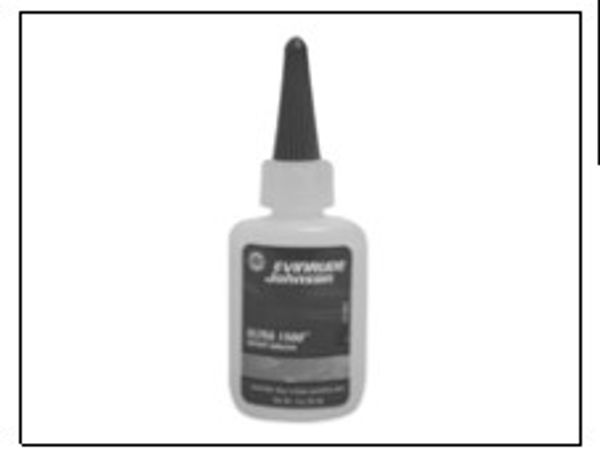

Instant Bonding Adhesive P/N 509955

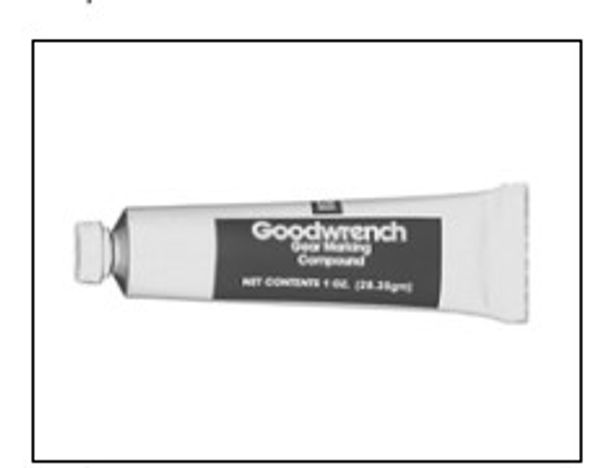

GM† Gear Mark Compound P/N 772666

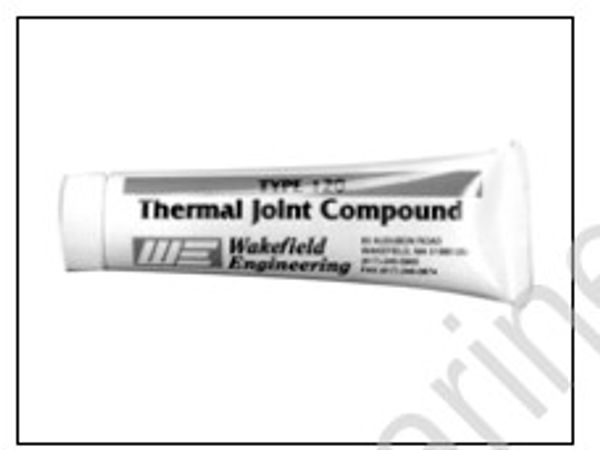

Thermal Joint Compound P/N 322170
