ELECTRICAL AND IGNITION

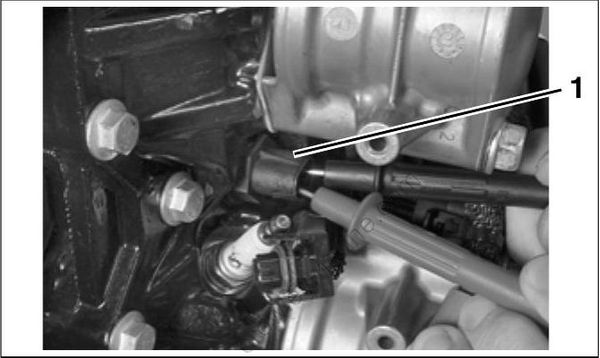

Engine Temperature Sensor Test
Use an ohmmeter to measure resistance.
| Engine Temperature Sensor Resistance |
|---|
| 9000 to 11000 Ω @ 77°F (25°C) |
- Engine temperature sensor (2)

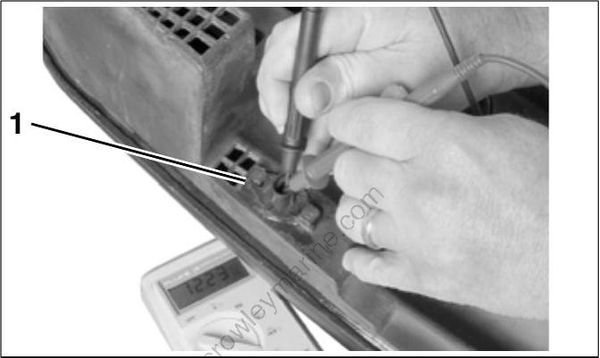

Air Temperature Sensor (AT) Test
Use an ohmmeter to measure resistance.
| AT Sensor Resistance |
|---|
| 9000 to 11000 Ω @ 77°F (25°C) |
- AT sensor
IGNITION COIL TESTS

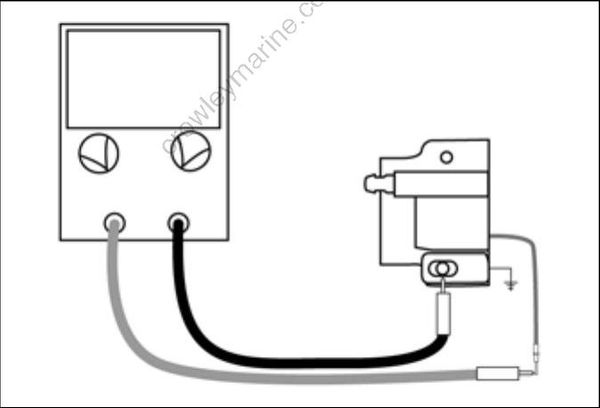

Primary Winding Resistance Test
Connect ohmmeter between coil primary terminal and clean engine ground.
| Ignition Coil Primary Resistance |
|---|
| 0.090 ± 0.005 Ω @ 77°F (25°C) |
A reading of less than 2 ohms is acceptable. Make sure meter is calibrated to read 1 ohm or less.

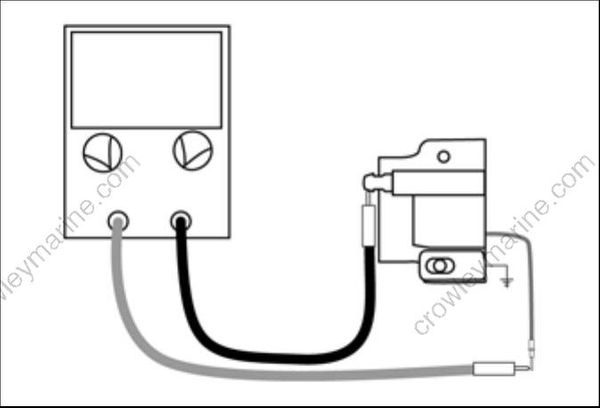

Secondary Winding Resistance Test
Connect ohmmeter between coil secondary terminal and coil primary terminal.
| Ignition Coil Secondary Resistance |
|---|
| 301 ± 14 Ω @ 77°F (25°C) |
