OILING RATES
EMM programming controls the rate of oil injection. Use engine diagnostics software to access this EMM feature.
Oil Injection Rate
The TC-W3 OIL control setting allows the out board to be run on TC-W3 outboard lubricant. Changing to the optional XD100 OIL CONTROL setting requires the use of Evinrude XD100 out board lubricant. Running the outboard in XD100 OIL mode can reduce oil consumption by approximately one third. See Oil Control on p. 109.

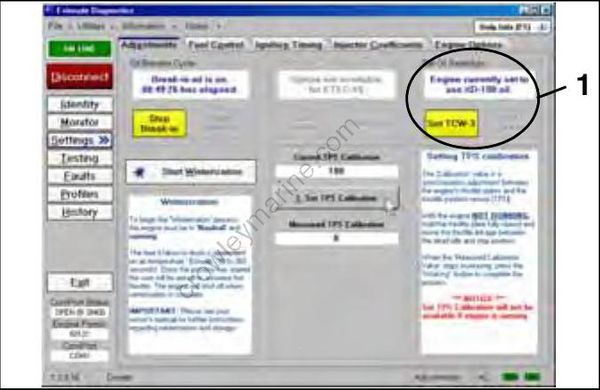

- Oil control setting 005140
Powerhead oil programming labels are provided to identify EMM oil programming. Install the correct label to alert user to specific oil requirements. IMPORTANT: Make sure the engine label and boat decal match EMM programming.
- Evinrude /Johnson XD30 outboard lubricant (TC-W3) YELLOW label 004964
- Evinrude /Johnson XD100 outboard lubricant (Premium) BLUE label (Installed)
XD100 Outboard Oil Decal
Evinrude/Johnson_ XD100 oil decals are available to label boats equipped with _Evinrude E-TEC out boards that have been programmed for the XD100 oil injection ratio.
Use the XD100 Oil Tank Tag, P/N 352927, to accurately inform the boat operator of the XD100 outboard oil requirement.
XD100 Outboard Oil Decal 004522
Install decal(s) in one or more of the highly visible recommended locations to alert the outboard operator(s).
Recommended Locations:
• Dashboard/deck of boat, adjacent to key switch
• Deck of boat, adjacent to the remote oil fill
• Deck of boat, adjacent to oil tank assembly
• Oil tank cover
• Cover of oil tank compartment
• Attach to oil tank or oil fill cap
IMPORTANT: Make sure the engine label and boat decal match EMM programming.
An optional XD100 Oil Tank Tag, P/N 352927, is available to label oil tanks on outboards programmed to operate on XD100 outboard oil.
Break-in Oiling
The Break-in Oil setting doubles the oiling ratio for the first two hours of operation above 2000 RPM. See
