Service Manual 40-90 HP.E-TEC Special Tools [Powerhead Tools]

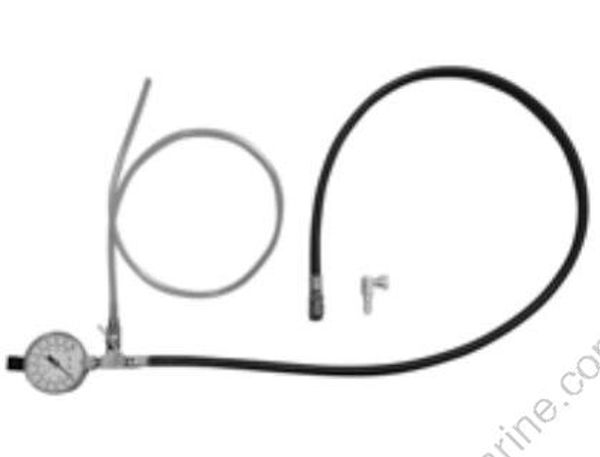

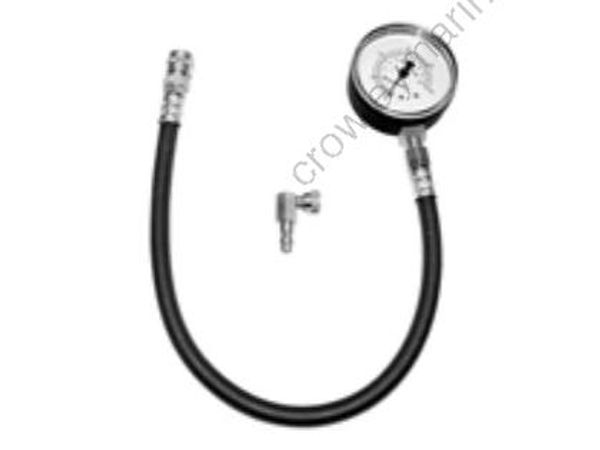

Fuel pressure gauge (60 PSI) P/N 5007100 005339
90° fitting, P/N 0353322

Fuel pressure gauge (15 PSI) P/N 5006397 004560
90° fitting, P/N 0353322

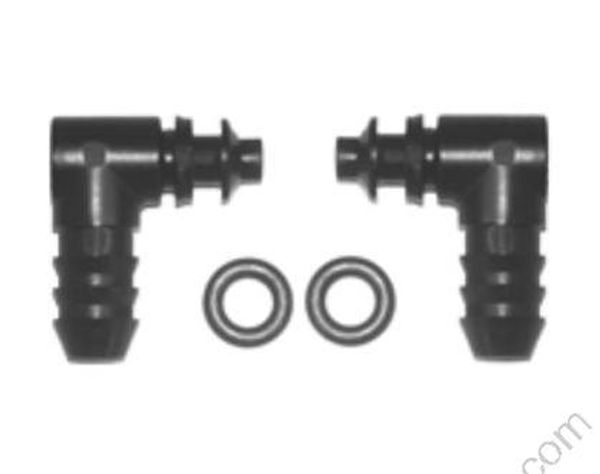

Injector test fitting kit P/N 5005844 002465

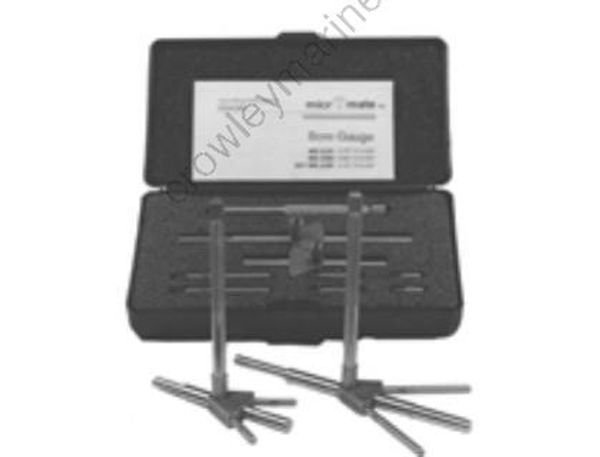

Cylinder bore gauge P/N 0771310 45303

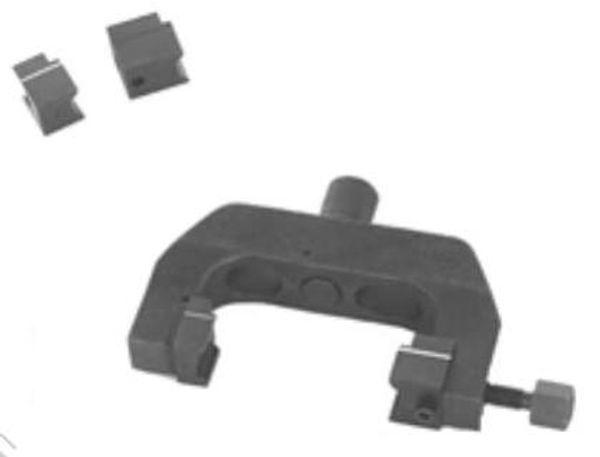

Rod cap alignment fixture P/N 0396749 21596

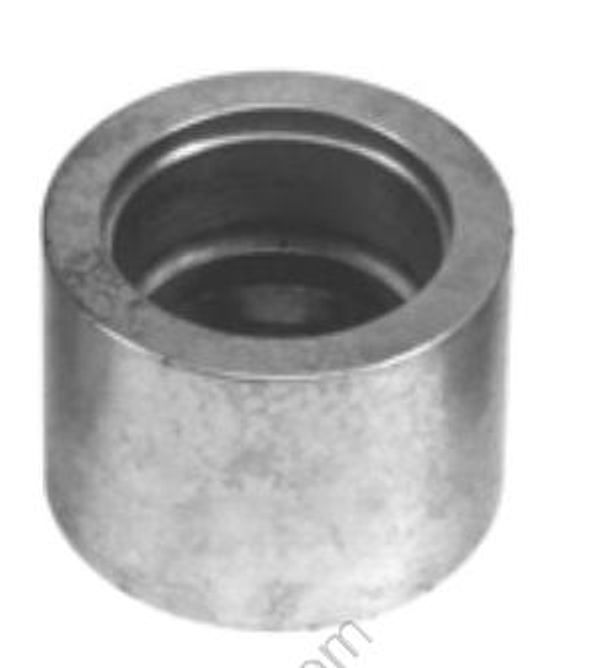

Crankshaft bearing and sleeve installer P/N 0338647 21953B

Piston stop tool P/N 0342679 46543
Replacement tip P/N 5006098

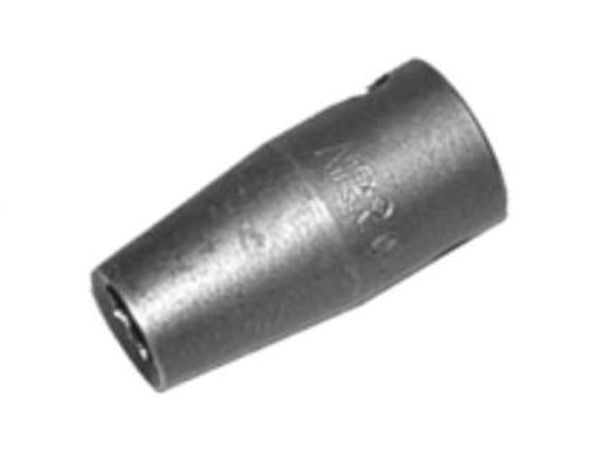

Torquing socket P/N 0331638 000797

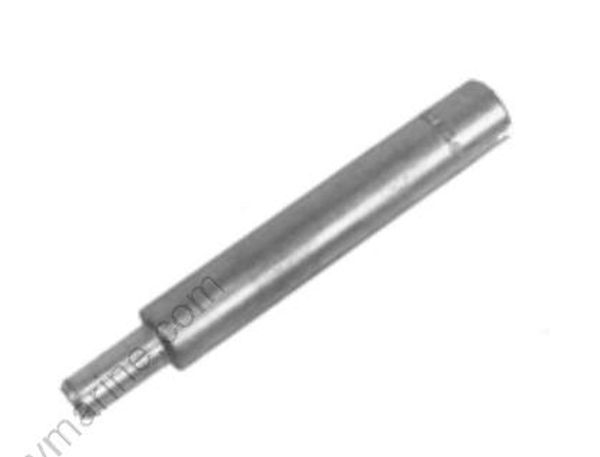

Wrist pin bearing installer P/N 0336660 41029

Wrist pin pressing tool P/N 0326356 23668

1. Wrist pin retaining ring driver P/N 0318599 DR1641
2. Wrist pin cone P/N 0318600

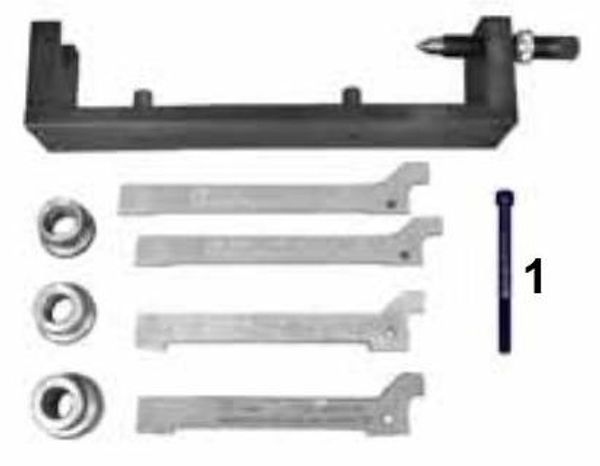

Universal Driveshaft Shimming Tool P/N 5005925 002601

1. Lower Driveshaft Shimming Bolt
   (S2 gearcase) P/N352878

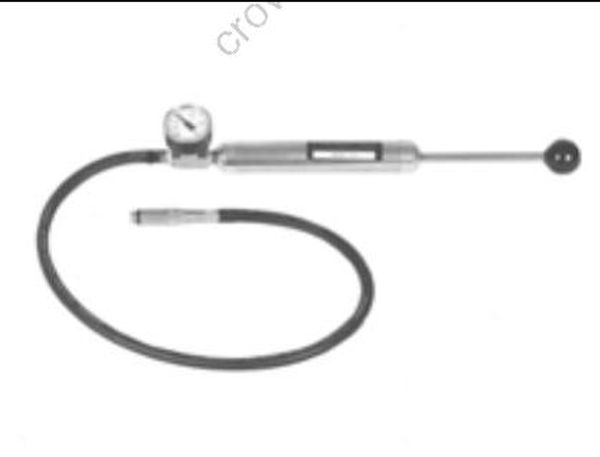

Gearcase pressure tester 49794
P/N 0507977 (Stevens P/N S-34)
Gearcase vacuum tester
P/N 0507982 (Stevens P/N V-34)

1. Retaining ring pliers P/N 0331045 2036
2. Replacement tip set P/N 0395967

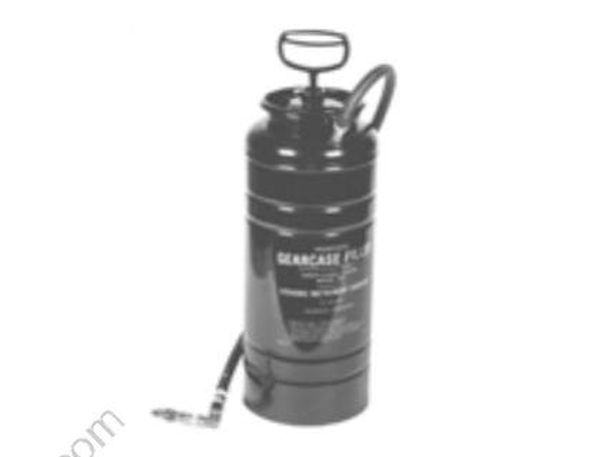

Gearcase filler P/N 0501882 49790

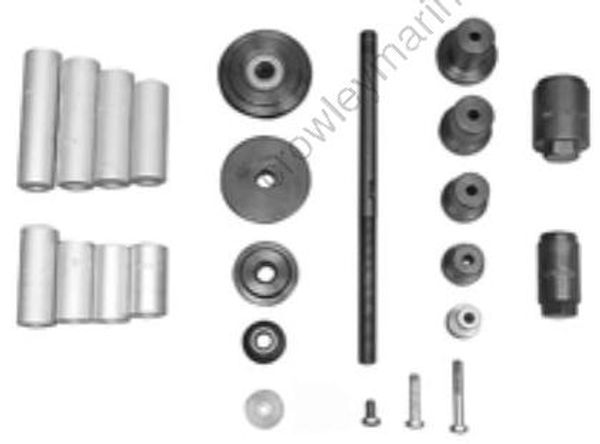

Universal Pinion Bearing Remover and installer kit P/N 5005927 002805

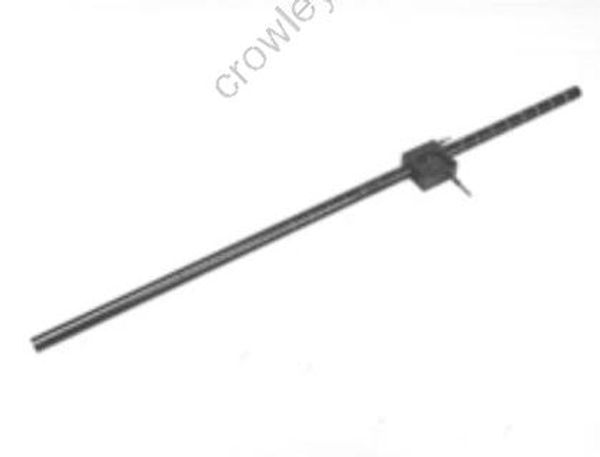

Universal shift rod height gauge P/N 0389997 32872

1. Pinion nut holder P/N 0334455 40371
2. Wrench retainer P/N 0341438
