UPPER COVER SERVICE
Latch Hook Installation

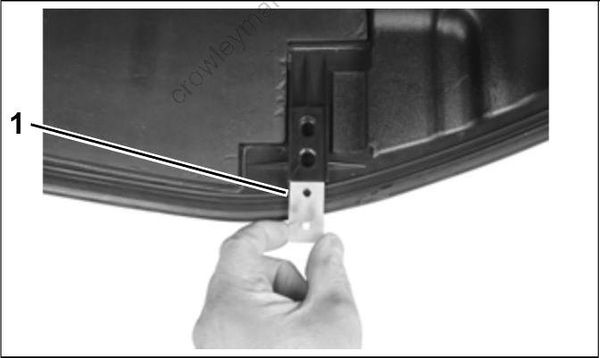

Insert threaded bracket into pocket.
- Bracket

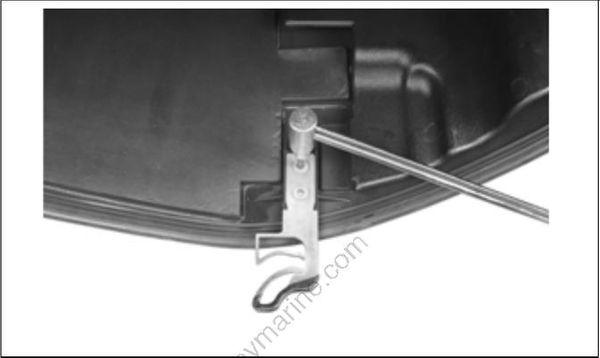

Apply Ultra-Lock to screw threads. Place hook into position with opening toward the front. Tighten screws to a torque of 60 to 84 in. lbs. (7 to 9.5 N·m).
LOWER COVER SERVICE
Lower Cover Removal

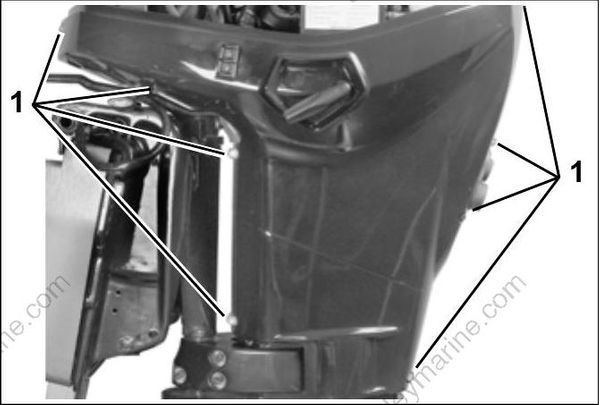

Remove lower engine cover screws.
- Lower cover screws

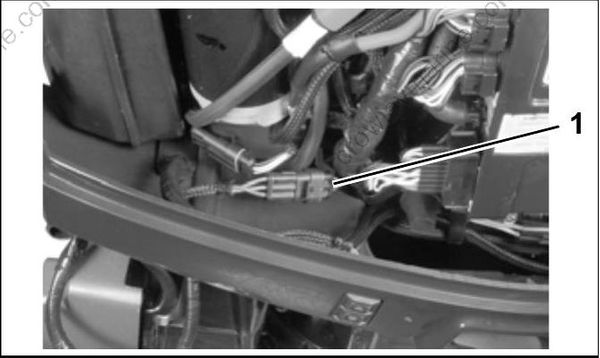

Loosen port side cover slightly, and disconnect trim/tilt switch connector. Then, remove port and starboard covers.
- Trim/tilt switch connector
