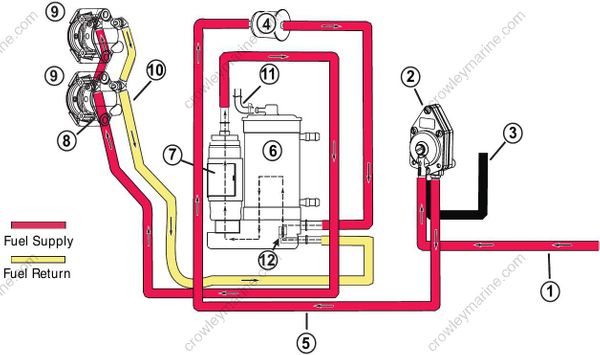

2-CYLINDER MODELS
1.Fuel supply from boat fuel system
2.Fuel lift pump (2 to 8 psi)
3.Pulse hose from cylinder/crankcase
4.Fuel filter
5.Fuel supply to vapor separator
6.Vapor separator
7.Electric fuel circulation pump (20 to 30 psi)
8.Fuel supply manifold
9.Fuel injector(s)
10.Fuel return manifold
11.Vent hose to intake manifold
12.Pressure regulator (high pressure)

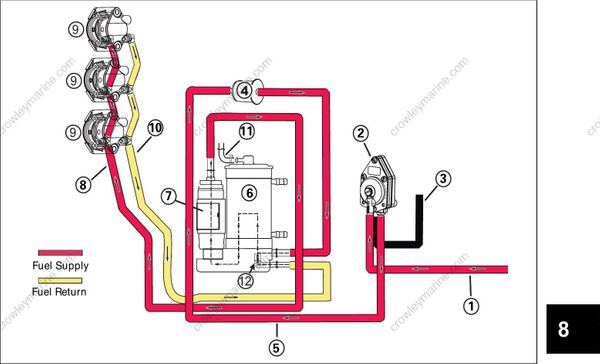

3-CYLINDER MODELS
002148a
- Fuel supply from boat fuel system
- Fuel lift pump (2 to 8 psi)
- Pulse hose from cylinder/crankcase
- Fuel filter
- Fuel supply to vapor separator
- Vapor separator
- Electric fuel circulation pump (20 to 30 psi)
- Fuel supply manifold
- Fuel injector(s)
- Fuel return manifold
- Vent hose to intake manifold
- Pressure regulator (high pressure)
