Service Manual 40-90 HP.E-TEC Add Ons

Related Products:
added updated
Service Manual 40-90 HP.E-TEC Add Ons
5008148
BRP Marine

Sections:

  1. OUTBOARD WILL NOT START
  2. OUTBOARD HARD TO START
  3. OUTBOARD WILL NOT SHUT OFF
  4. OUTBOARD STARTS AND STALLS
  5. OUTBOARD STARTS, LOW MAXIMUM RPM
  6. EXCESSIVE SMOKING
  7. OUTBOARD SURGES, RUNS ROUGH
  8. Hose Routing and Water Flow Diagram 40 – 65 E-TEC Inline 2 Cylinder
  1. Hose Routing and Water Flow Diagram 75 – 90 HP EVINRUDE E-TEC
  2. MWS Instrument Wiring Harness
  3. I-Command Keyswitch/TNT Wiring Harness
  4. Lanyard Switch / Emergency Stop Circuits
  5. MWS Key Switch and Neutral Safety Switch
  6. MWS DASHBOAR
  7. Evinrude E-TEC
  8. EVINRUDE 40 – 90 HP EMM SERVICE CODE CHART

OUTBOARD WILL NOT START

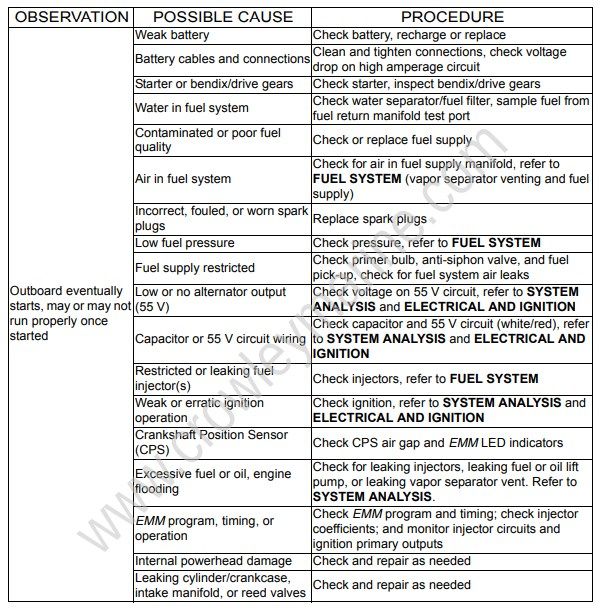

OUTBOARD HARD TO START

OUTBOARD WILL NOT SHUT OFF

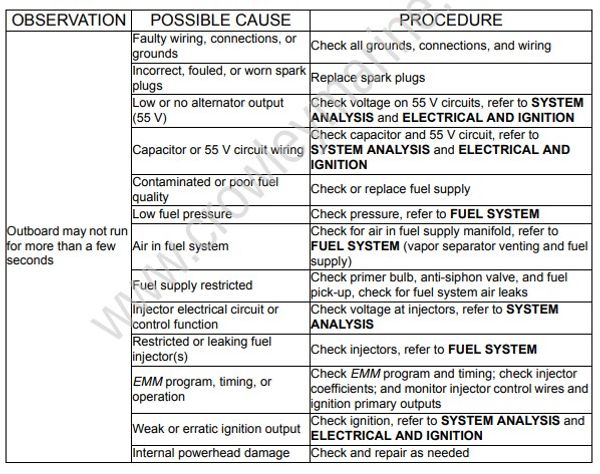

OUTBOARD STARTS AND STALLS

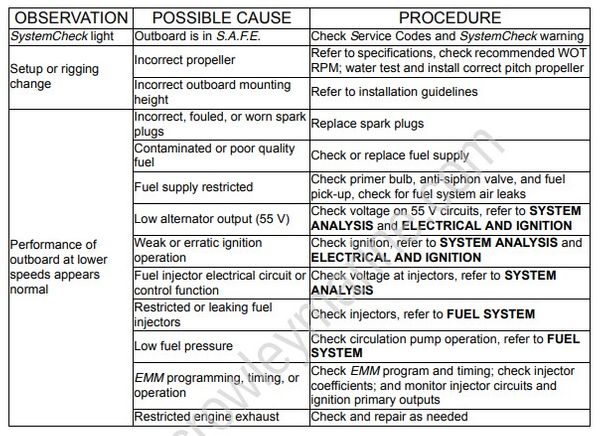

OUTBOARD STARTS, LOW MAXIMUM RPM

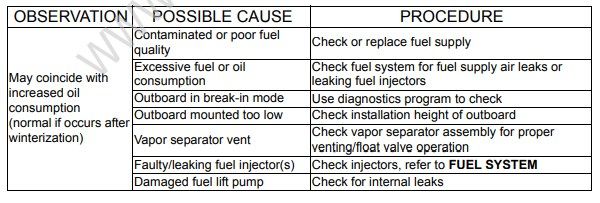

EXCESSIVE SMOKING

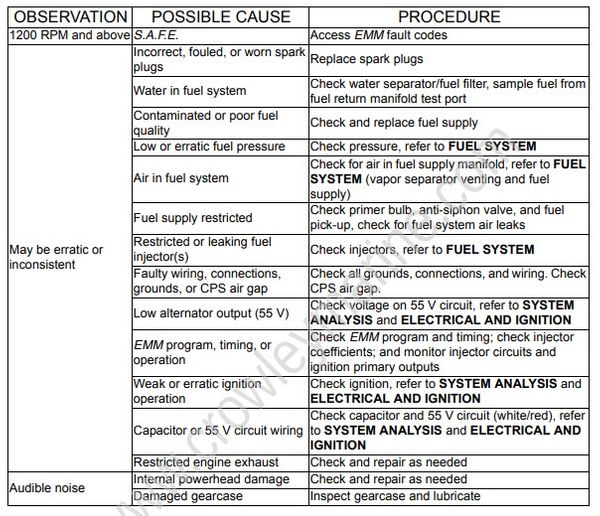

OUTBOARD SURGES, RUNS ROUGH

Hose Routing and Water Flow Diagram 40 – 65 E-TEC Inline 2 Cylinder

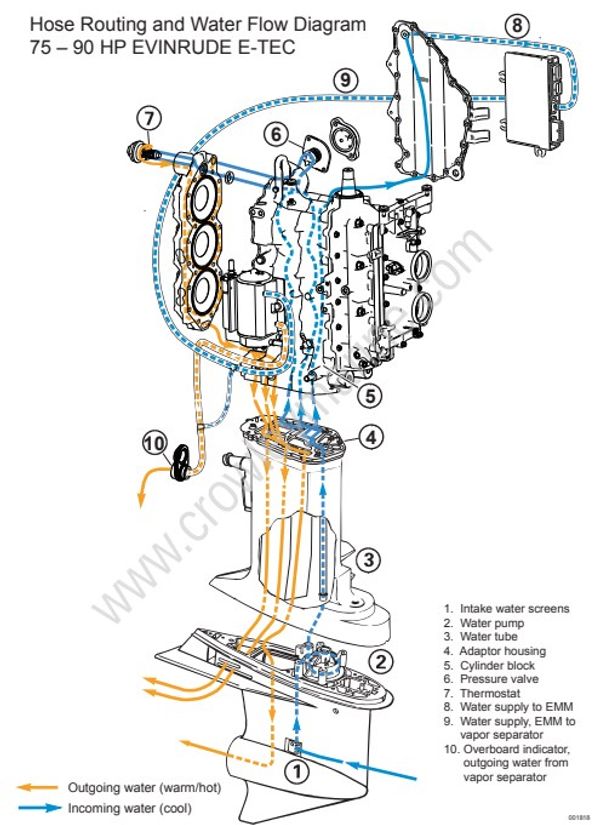

Hose Routing and Water Flow Diagram 75 – 90 HP EVINRUDE E-TEC

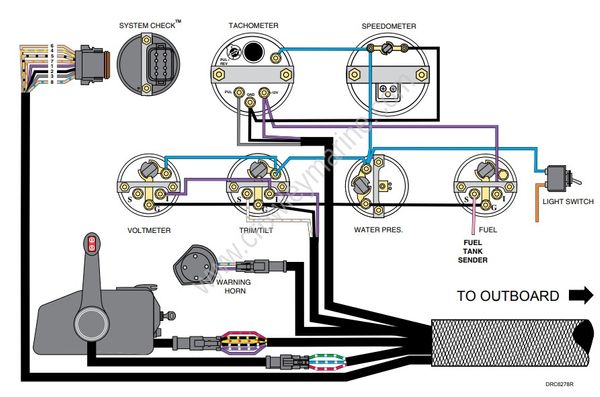

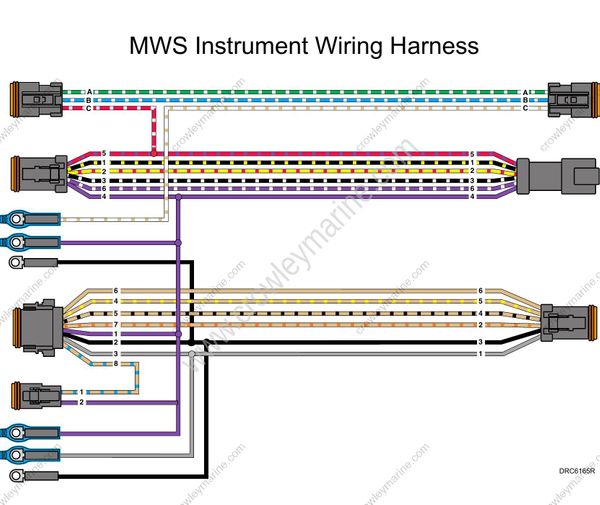

MWS Instrument Wiring Harness

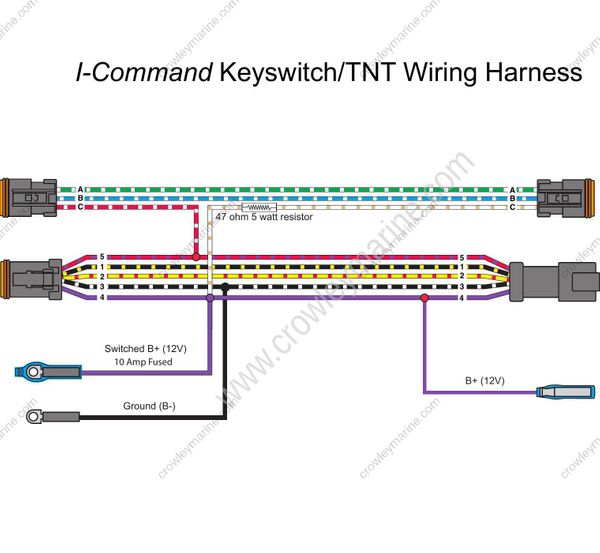

I-Command Keyswitch/TNT Wiring Harness

Lanyard Switch / Emergency Stop Circuits

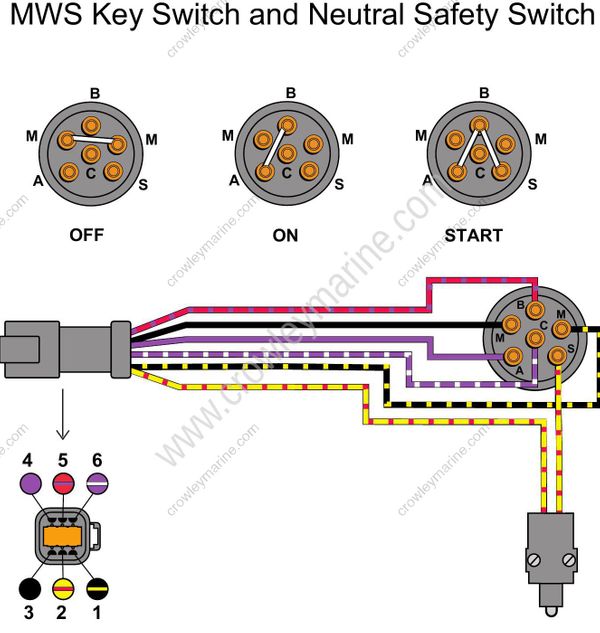

MWS Key Switch and Neutral Safety Switch

MWS DASHBOAR

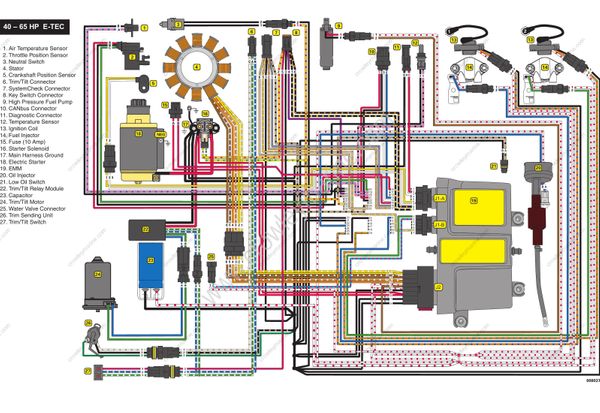

Evinrude E-TEC

EMM LED Diagnostic Indicators

For more information, refer to SYSTEM ANALYSIS in the Service Manual.

KEY ON: LED’s illuminate to indicate circuit function

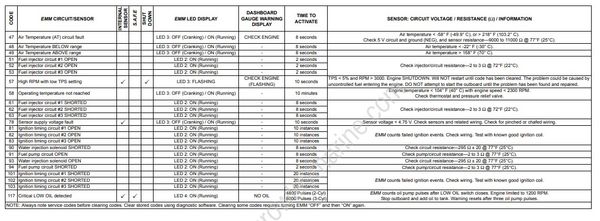

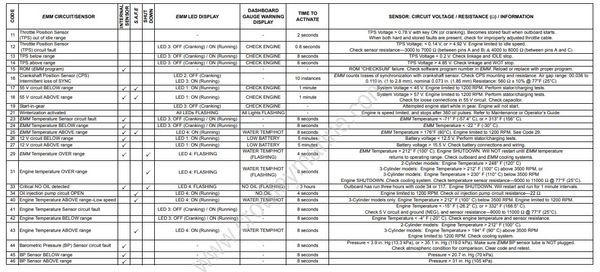

EVINRUDE 40 – 90 HP EMM SERVICE CODE CHART
