UPPER MOUNT SERVICING (3-Cylinder)
Removal
Remove mount retainer screw.
002069

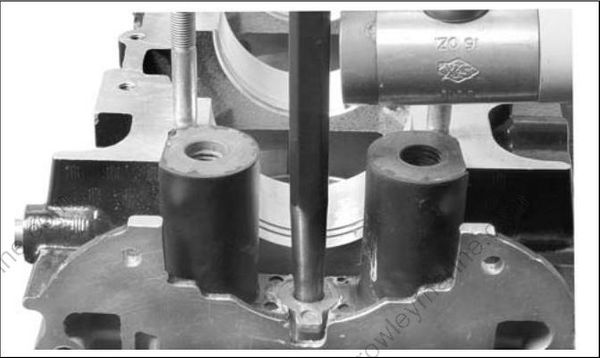

Insert suitable punch in taper of mount retainer. Tap side of punch to loosen mount retainer.
002130

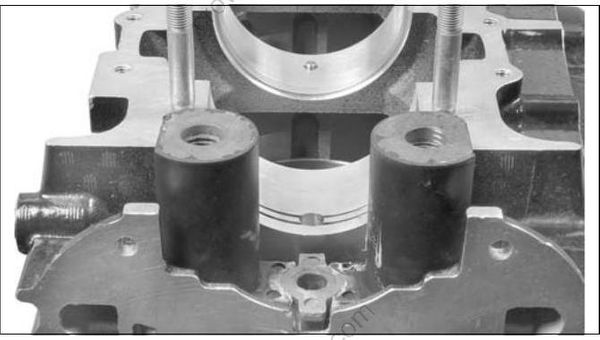

Dislodge mount assemblies and remove.
002132

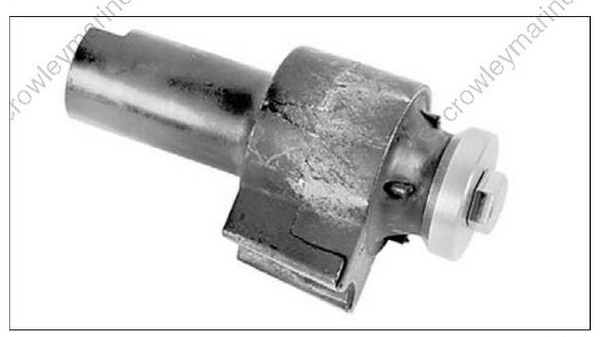

Inspect mounts and replace if necessary.
IMPORTANT: The motor mount, washer, and screw are serviced as an assembly. Do not disassemble.
39820
Installation
Place mount assemblies in position, with flats facing away from each other.
Apply Moly Lube to all sides of retainer and install between mounts.
002133
Install the retainer screw and tighten to a torque of 15 to 20 ft. lbs. (20 to 27 N·m).
002134
