RECOIL STARTER INSTALLATION
Apply Nut Lock to the threads of starter ratchet screws. Install washers and ratchet on flywheel. Tighten screws to a torque of 120 to 144 in. lbs. (13.5 to 16 N·m).
Place the starter assembly onto the outboard. Install the starter housing retaining screws, washers, and lock washers. Be sure to place washers between the starter housing and the flywheel cover. Apply Ultra Lock to threads and tighten the three starter housing screws to a torque of 120 to 144 in. lbs. (14 to 16 N·m).
Install clamp for oiling system wiring harness.

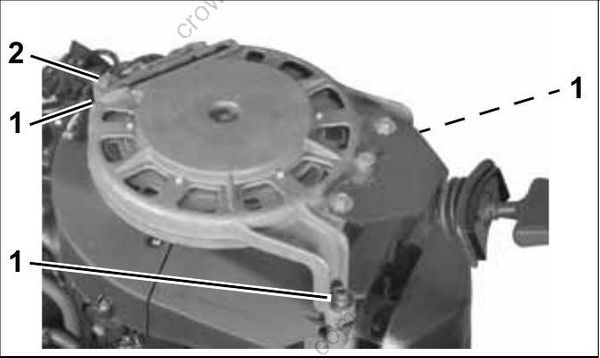

- Starter housing screws (3)
- Clamp
