GEARCASE REMOVAL AND INSTALLATION
Gearcase Removal
To prevent accidental starting while servicing, twist and remove all spark plug leads. During service, the outboard may drop
unexpectedly. Avoid personal injury; always support the outboard’s weight with a suitable hoist or the tilt support bracket during service.
Remove pin and washer from shift rod lever to release the lower shift rod.

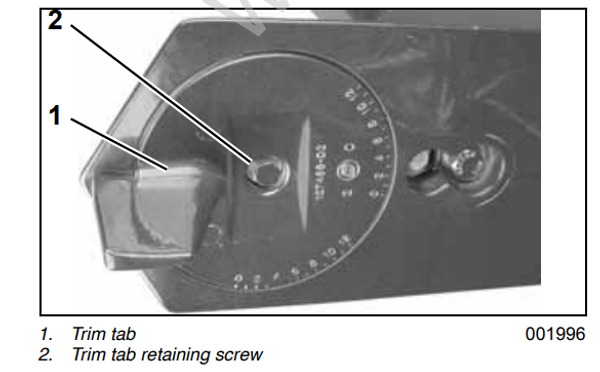

Note where the index mark on the gearcase aligns with the index number of the adjustable trim tab so the trim tab can be installed in the same position. Remove the trim tab retaining screw and trim tab from the gearcase.

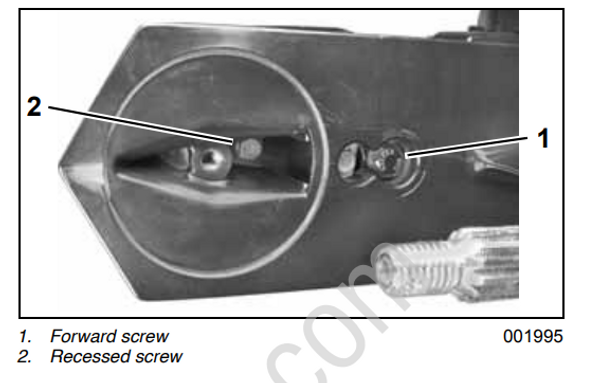

Remove the forward screw with washer and recessed retaining screw.

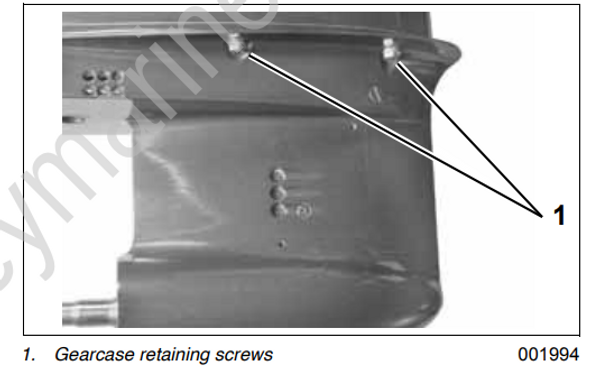

Remove the four gearcase retaining screws.
Remove the gearcase assembly from the exhaust housing, being careful not to bend the shift rod.
Gearcase Installation
During service, the outboard may drop unexpectedly. Avoid personal injury; always support the outboard’s weight with a suitable hoist or the tilt support bracket during service.

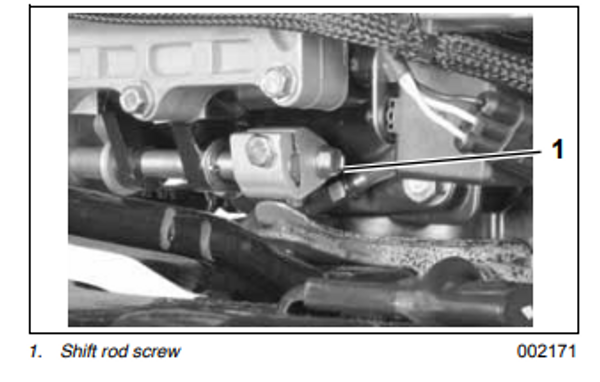

IMPORTANT: Before installing gearcase, shift rod adjustment MUST be checked. Refer to SHIFT ROD ADJUSTMENT on p. 280.

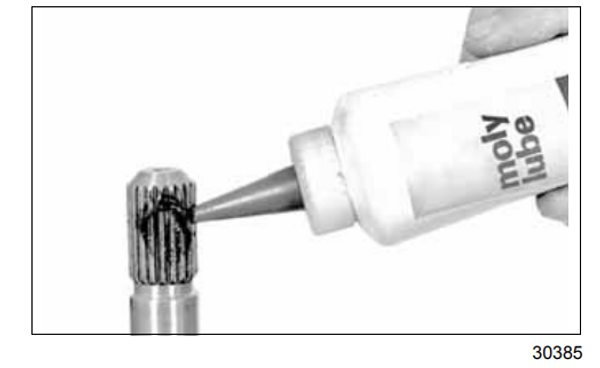

Coat the driveshaft splines with Moly Lube. DO NOT coat top surface of the driveshaft as lubricant may prevent seating of the driveshaft in the crankshaft.
Apply Adhesive 847 to the exhaust housing seal’s inner surface. Place the seal on the exhaust housing. Apply Triple-Guard grease to the seal’s outer surfaces.
Slide the gearcase into place, making sure:
- Driveshaft engages the crankshaft.
- Inner exhaust housing installs correctly.
- Shift rod does not turn and is positioned properly in shift shaft connection area.
Apply Gasket Sealing Compound to threads of the gearcase retaining screws. Tighten the screws to a torque of:
- 3/8 in. screws – 18 to 20 ft. lbs. (24 to 27 N·m)
- 7/16 in. screw – 28 to 30 ft. lbs. (38 to 40 N·m)
- 5/16 in. screw – 10 to 12 ft. lbs. (13.5 to 16 N·m)

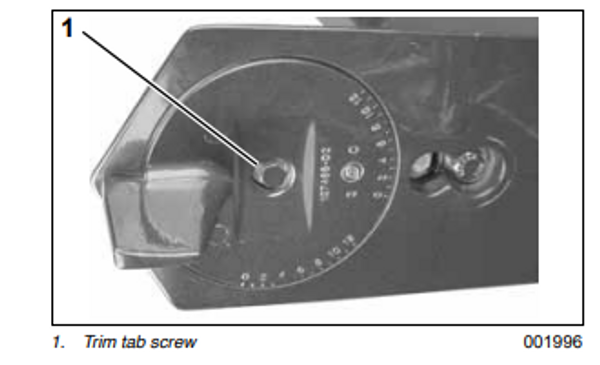

Apply Gasket Sealing Compound to threads of the trim tab screw. Install and align the trim tab with the index marks noted prior to disassembly. Tighten the trim tab screw to a torque of 35 to 40 ft. lbs. (47 to 54 N·m). For adjustment, refer to Trim Tab Adjustment on p. 63.
Place the shift rod in the shift rod lever. Install the retaining pin and washer. Tighten pin to a torque of 60 to 84 in. lbs. (7 to 9.5 N·m).
To prevent loss of operator control, check for proper shifting operation and adjust, if necessary.
WATER PUMP SERVICE
Disassembly

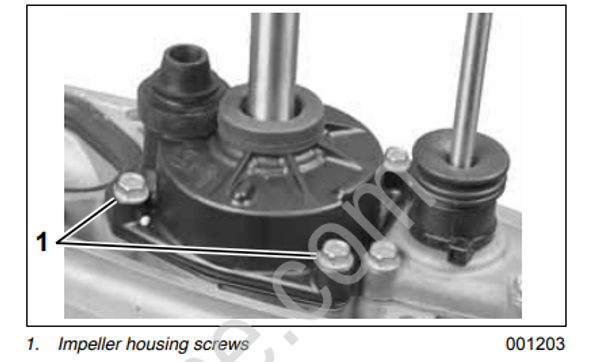

Remove the four impeller housing screws.

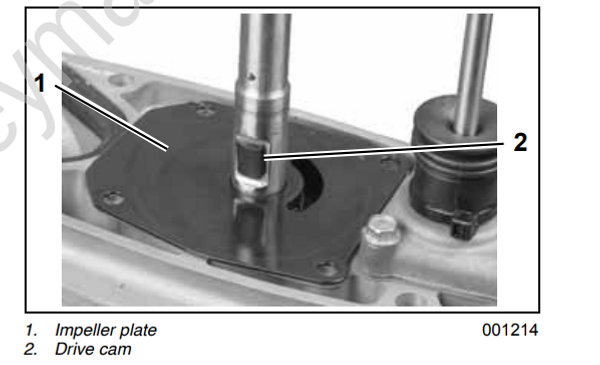

Slide the water pump off the driveshaft. Remove the impeller drive cam, impeller plate, and gasket. Discard the gasket.
Remove all the parts from the housing.
Inspection
Check impeller for overheating, hub separation, and other wear or damage.
Check liner and wear plate for scoring, distortion, and impeller material transfer.
Inspect the housing for cracks or melting.
