Service Manual 250-300 HP 3.4 L E-TEC Oiling System [Oiling System Circuit Diagram]

Related Products:
added updated
Service Manual 250-300 HP 3.4 L E-TEC Oiling System [Oiling System Circuit Diagram]
5007533
BRP Marine

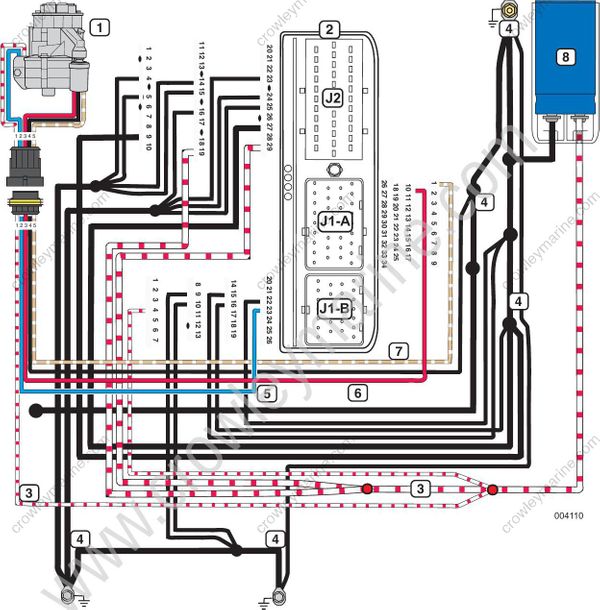

OILING SYSTEM CIRCUIT DIAGRAM

  1. Oil Injection Pump
  2. EMM
  3. 55 V Circuit (WHITE/RED)
  4. Grounds, NEG (BLACK)
  5. EMM to Oil Solenoid (BLUE)
  6. Oil Pressure Sensor, +5 V analog (RED)
  7. Oil Pressure Sensor Signal (TAN/WHITE)
  8. Capacitor
