EXHAUST RELIEF MUFFLER ASSEMBLY

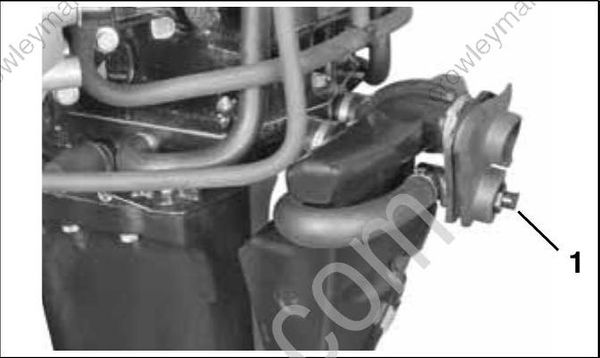

The exhaust relief muffler is located at the rear of the adaptor housing and concealed by the lower motor covers. The exhaust relief grommet connects directly to the muffler assembly.
- Exhaust relief grommet

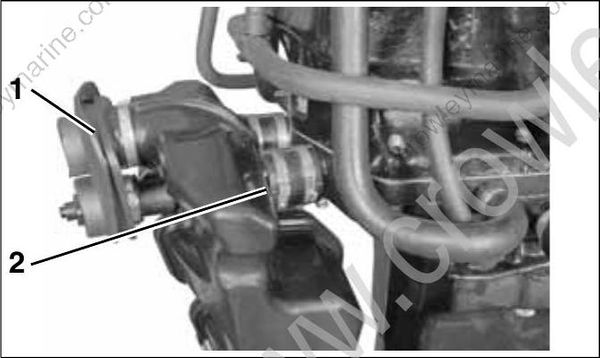

The muffler assembly connects to the exhaust relief hoses from the adaptor housing assembly.
- Exhaust relief grommet
- Exhaust relief hoses

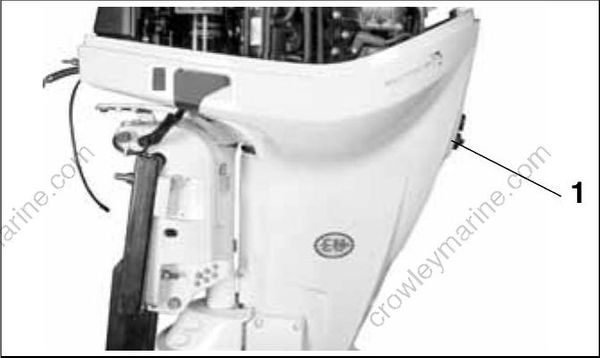

The overboard indicator and flush port in the exhaust relief grommet connect to the adaptor housing assembly with a hose. This hose is not connected to the muffler assembly.
- Overboard indicator and flush port
Periodically inspect hoses and connections for condition. Replace muffler or hoses as needed.
