Service Manual 250-300 HP 3.4 L E-TEC Cooling System [Engine Temperature Check]

Related Products:
Service Manual 250-300 HP 3.4 L E-TEC Cooling System [Engine Temperature Check]
5007533
BRP Marine

ENGINE TEMPERATURE CHECK

IMPORTANT: The engine temperatures listed below are based on an intake water temperature of 70° ± 10°F (21° ± 3°C).

Install correct test propeller and place outboard in a test tank or in the water. Start outboard and run at 3000 RPM in FORWARD gear for at least five minutes. Remember, running outboards at high speeds in test tanks may disrupt water flow to gearcase water intakes. Make sure the outboard has adequate water flow.

When servicing the propeller, always shift the outboard to NEUTRAL, turn the key switch OFF, and twist and remove all spark plug leads so the engine cannot be started accidentally.

Reduce speed to IDLE for five minutes. Check IDLE operating temperature.

Increase speed to 5000 RPM and check temperature.

Check temperature on both sides of powerhead. If engine temperature is not within range, trouble shoot cooling system.

If engine temperature tests within range, but the System Check gauge indicates a “WATER TEMP” warning, refer to WATER TEMP/HOT Circuit Test on p. 143.

Software Method

Use Evinrude Diagnostics software to read temperature displays.

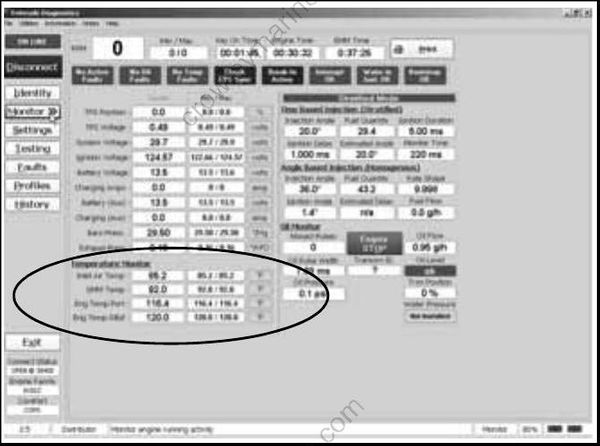

Engine Monitor Screen

Typical temperature displays at IDLE speed should be 160°F ± 10°F (71°C ± 6°C)

Operating temperature must not exceed 194°F (90°C).

Pyrometer Method

Use a Temperature Gun, P/N 772018, or a digital pyrometer to measure the outboard’s operating temperature.

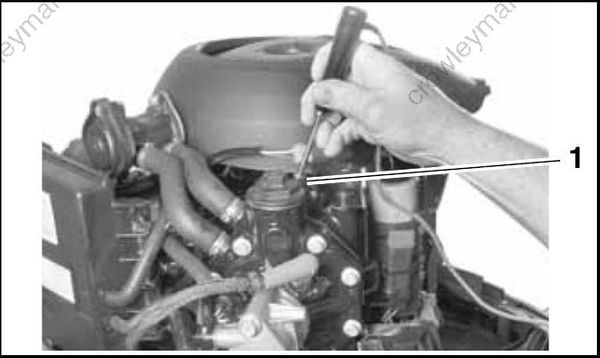

Measure temperature at the top of cylinder block, next to the thermostat housing and cylinder head. Check temperature on both sides of powerhead.

  1. Top of cylinder block (starboard side)

Typical temperatures observed at IDLE speed with pyrometer should be 143°F ± 15°F (62°C ± 8°C)

IMPORTANT: If you get low or inaccurate readings during these tests, coat the probe location of the digital pyrometer with a liberal amount of Thermal Joint Compound , P/N 322170.

Idle Operating Temperature Troubleshooting (Below Range)

If engine IDLE temperature is below operating range 160°F ± 10°F (71°C ± 6°C), check thermostat and pressure relief valve operation.

Pressure Relief Valve

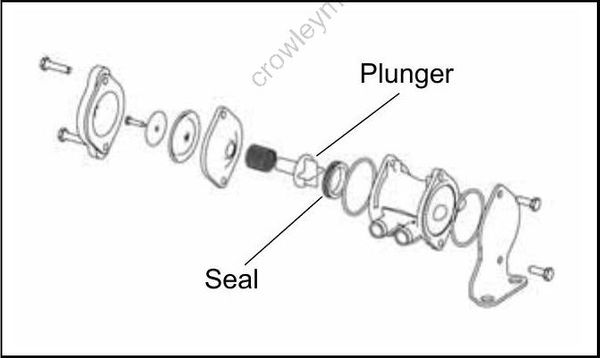

The pressure relief valve should be closed at IDLE speed. Water should not flow past the plunger and seal.

Pressure Relief Valve

If IDLE temperature increases to specific operating range, pressure relief valve and thermostats are functioning properly.

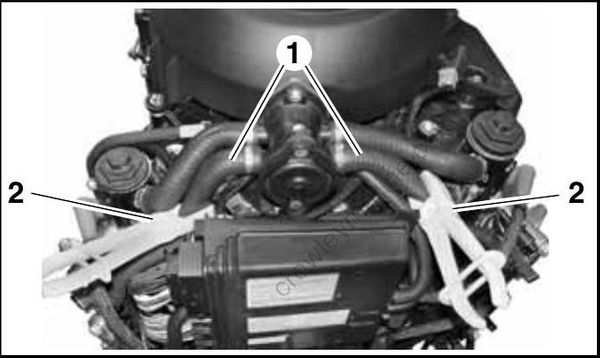

ENGINE TEMPERATURE CHECK If IDLE temperature is below specific operating range, pinch off the water outlet hoses from pres sure relief valve to cylinder heads.

  1. Outlet hoses
  2. Pliers

Use hose pinching pliers (acquired through local tool source) to prevent hose damage.

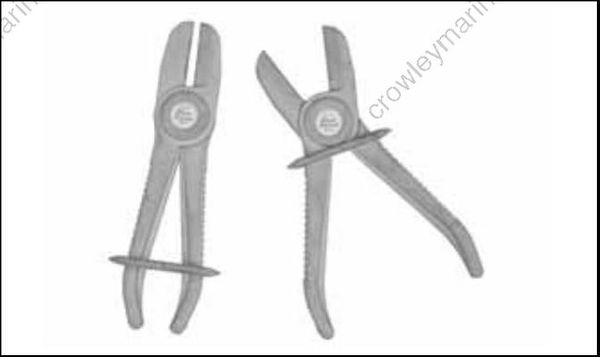

Hose Pinching Pliers

Start the outboard and check IDLE operating temperature using Evinrude Diagnostics software program.

If IDLE temperature increases to specific operating range, 160°F ± 10°F (71°C ± 6°C), after pinching off hoses and eliminating water flow to the cylinder heads, pressure relief valve is leaking. Replace pressure relief valve.

If IDLE temperature is still below operating range with hoses pinched off, inspect thermostats and thermostat seals.

Thermostats

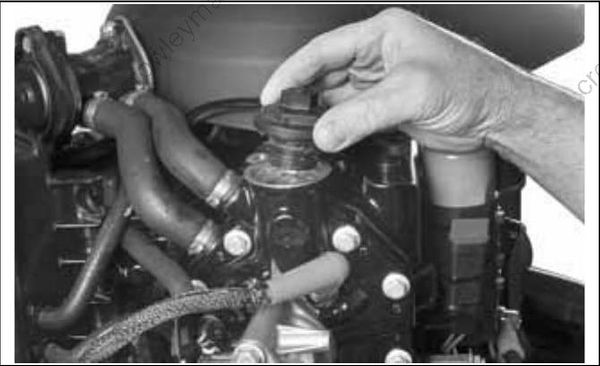

Remove thermostat cover(s) and inspect thermostat(s).

Check position of thermostat seal and how thermostat seals against cylinder head. Seal must be properly fitted to flange of thermostat.

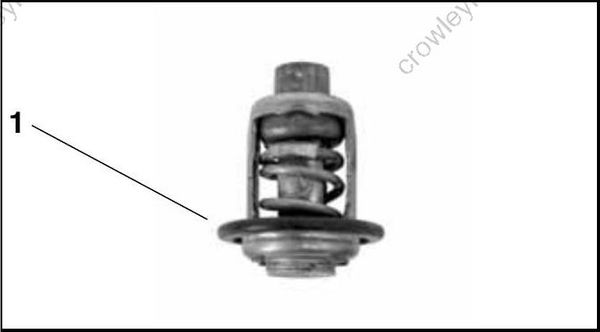

  1. Seal, thermostat

Check thermostat for cracks, heat damage, or signs of corrosion. Check for proper operation. Thermostat opens at 143°F (62°C).

THERMOSTAT SERVICING

Disassembly

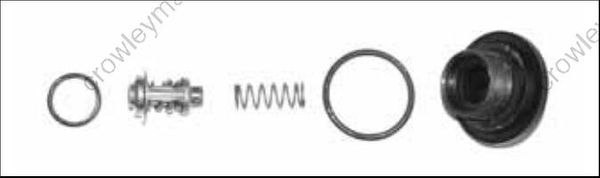

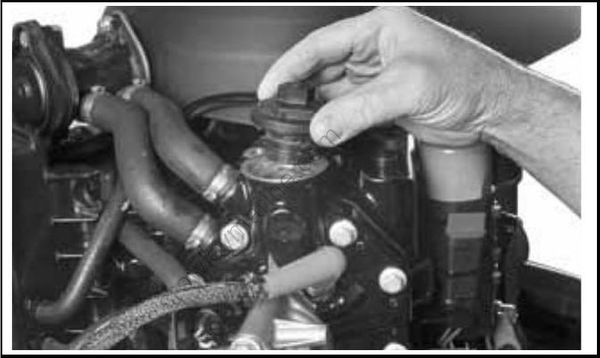

Remove the thermostat cover and O-ring from cylinder head.

Remove spring, thermostat, and gasket.

Inspection

Inspect all parts for cracks, heat damage, or signs of corrosion. Replace damaged parts. Clean debris from housing and parts.

Assembly
Assembly is the reverse of disassembly. Pay close attention when performing the following additional tasks.
Coat threads of each cylinder head thermostat cover with Gasket Sealing Compound. Install and tighten the cover to a torque of 120 to 144 in. lbs. (13.5 to 16.5 N·m).
