Service Manual 250-300 HP 3.4 L E-TEC Add Ons

Related Products:
added updated
Service Manual 250-300 HP 3.4 L E-TEC Add Ons
5007533
BRP Marine

Sections:

  1. OUTBOARD WILL NOT START
  2. OUTBOARD WILL NOT START
  3. OUTBOARD HARD TO START
  4. OUTBOARD WILL NOT SHUT OFF
  5. OUTBOARD STARTS AND STALLS
  6. OUTBOARD STARTS, LOW MAXIMUM RPM
  7. EXCESSIVE SMOKING
  8. OUTBOARD SURGES, RUNS ROUGH
  1. MWS Instrument Wiring Harness
  2. Lanyard Switch / Emergency Stop Circuits
  3. MWS Key Switch And Neutral Safety Switch
  4. CANbus Keyswitch/TNT Wiring Harness
  5. MWS DASHBOAR
  6. Evinrude E-TEC
  7. 90°V6/250-300 HP E-TEC
  8. EVINRUDE 115 – 300 HP EMM SERVICE CODE CHART

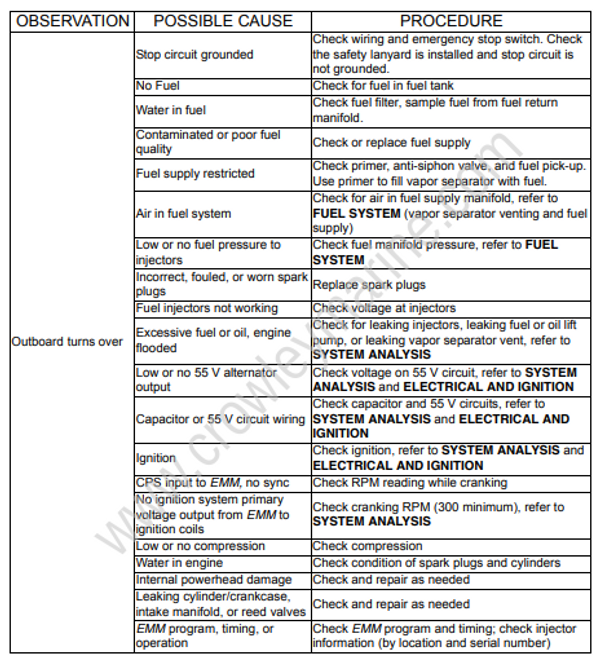

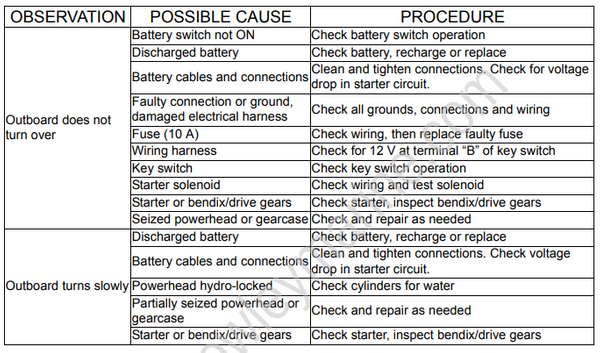

OUTBOARD WILL NOT START

OUTBOARD WILL NOT START

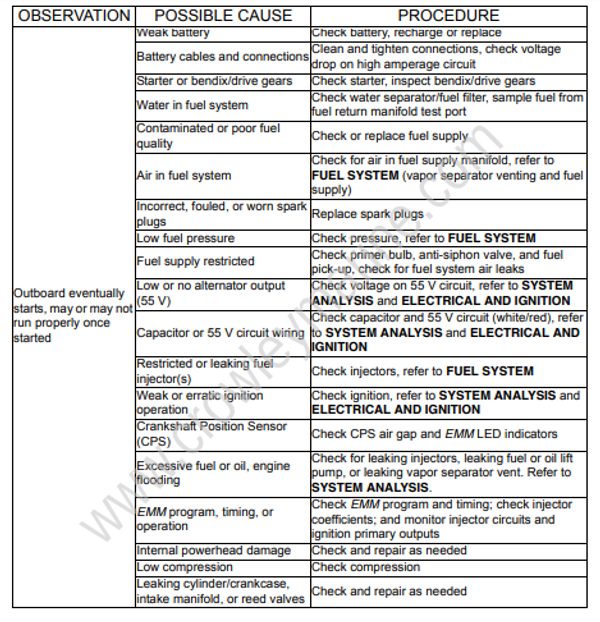

OUTBOARD HARD TO START

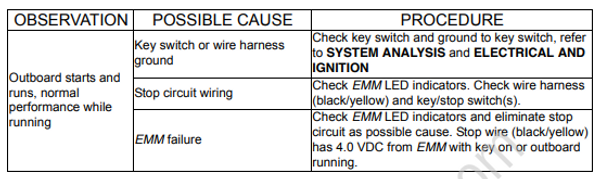

OUTBOARD WILL NOT SHUT OFF

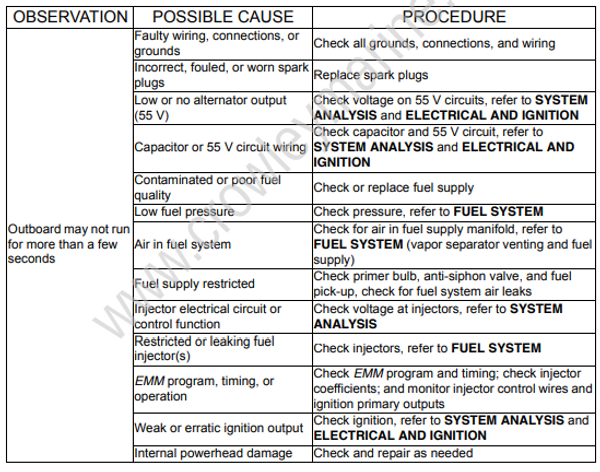

OUTBOARD STARTS AND STALLS

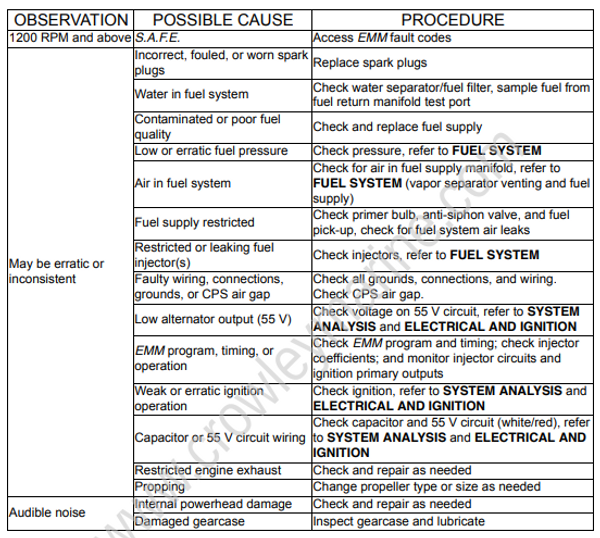

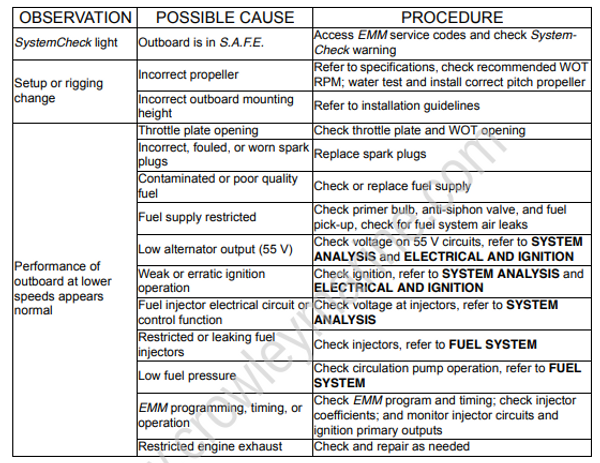

OUTBOARD STARTS, LOW MAXIMUM RPM

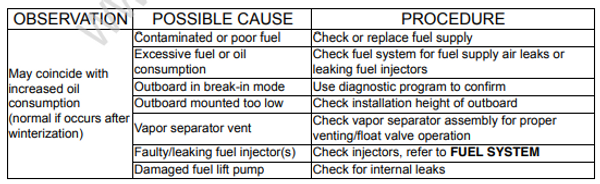

EXCESSIVE SMOKING

OUTBOARD SURGES, RUNS ROUGH

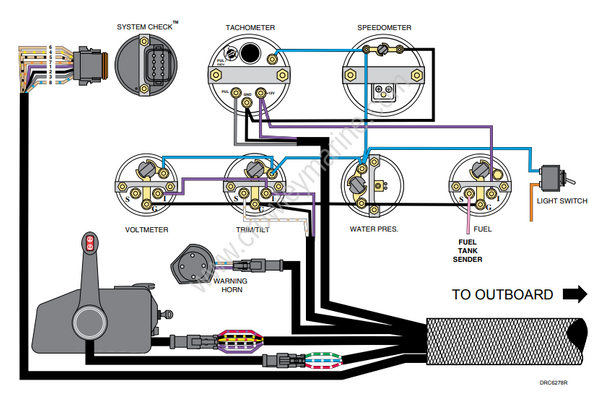

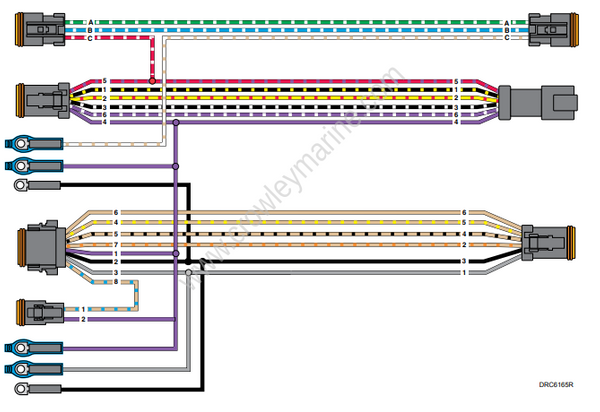

MWS Instrument Wiring Harness

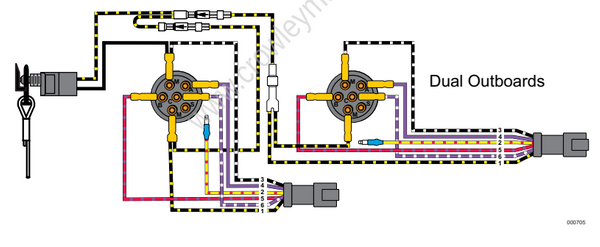

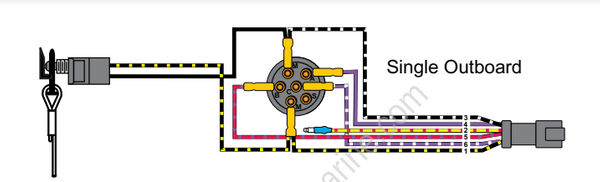

Lanyard Switch / Emergency Stop Circuits

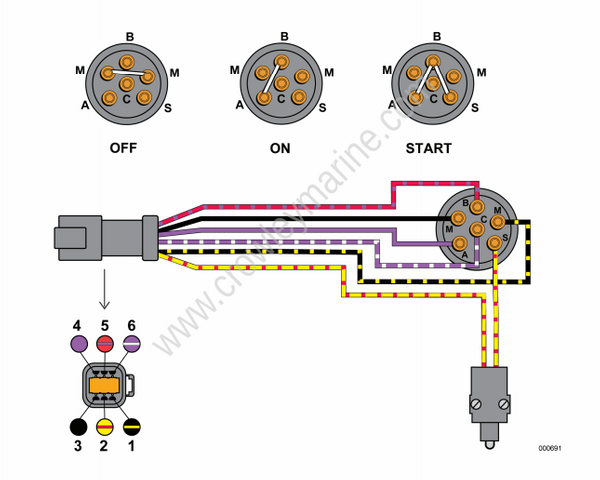

MWS Key Switch And Neutral Safety Switch

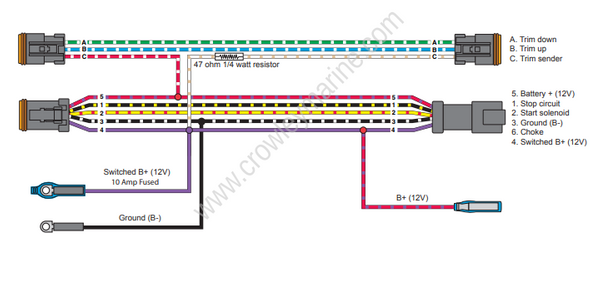

CANbus Keyswitch/TNT Wiring Harness

MWS DASHBOAR

Evinrude E-TEC

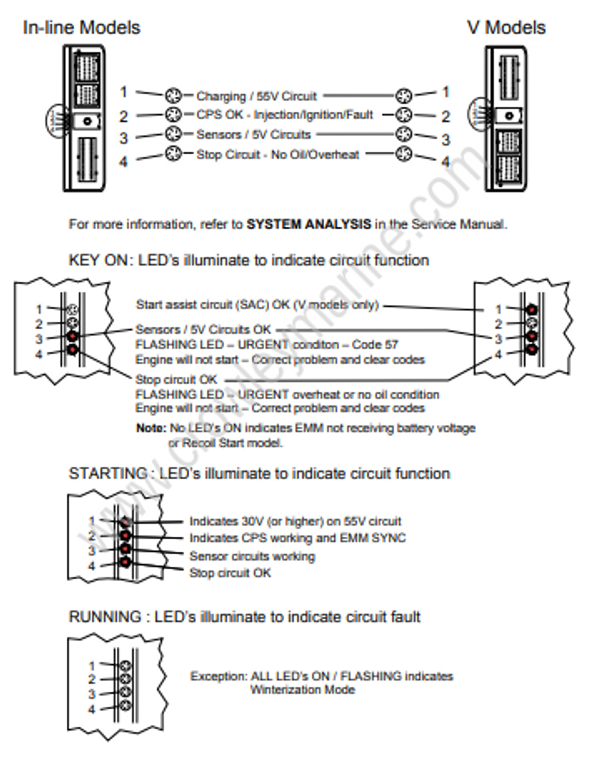

EMM LED Diagnostic Indicators

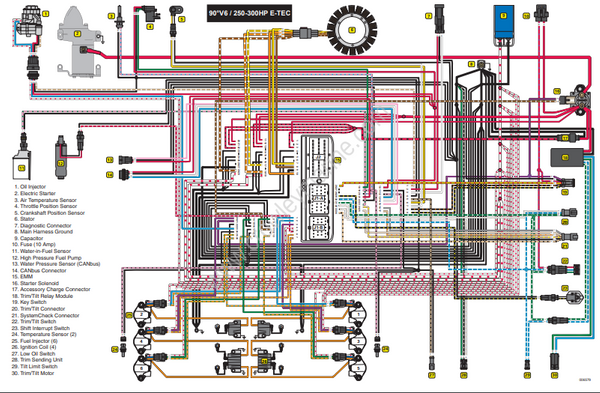

90°V6/250-300 HP E-TEC

  1. OIL INJECTOR
  2. ELECTRIC STARTER
  3. AIR TEMPERATURE SENSOR
  4. THROTTLE POSITION SENSOR
  5. CRANKSHAFT POSITION SENSOR
  6. STATOR
  7. DIAGNOSTIC CONNECTOR
  8. MAIN HARNESS GROUND
  9. CAPACITOR
  10. FUSE (10 amp)
  11. Water-in-fuel sensor
  12. High Pressure Fuel PUMP
  13. Water Pressure Sensor (CANbus)
  14. CANbus connector
  15. EMM
  16. Stater Solenoid
  17. Accessory Charge connector
  18. Trim/Tilt Relay Module
  19. Key Switch
  20. Trim/Tilt Switch
  21. System Check Connetor
  22. Trim/Tilt Switch
  23. Shift Interrupt Switch
  24. Temperature Sensor (2)
  25. Fuel Injector (6)
  26. Ignition Coil (4)
  27. Low oil switch
  28. Tilt Sending Unit
  29. Tilt Limit Switch
  30. Trim/Tilt Motor

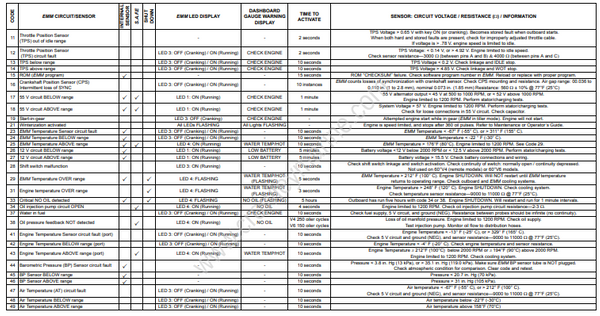

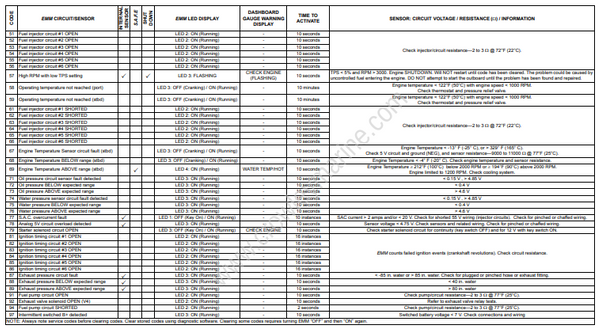

EVINRUDE 115 – 300 HP EMM SERVICE CODE CHART
