RECOIL STARTER INSTALLATION

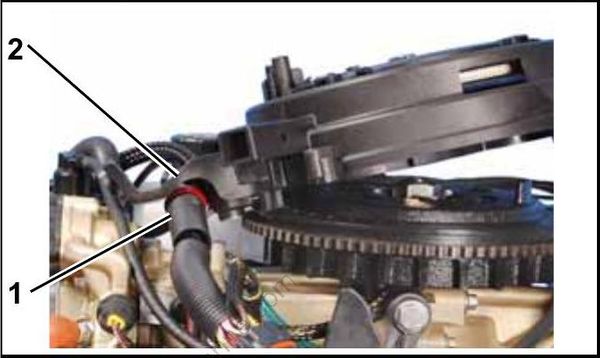

Position the wiring in the retaining bracket of recoil starter housing.
- Wiring
- Retaining bracket

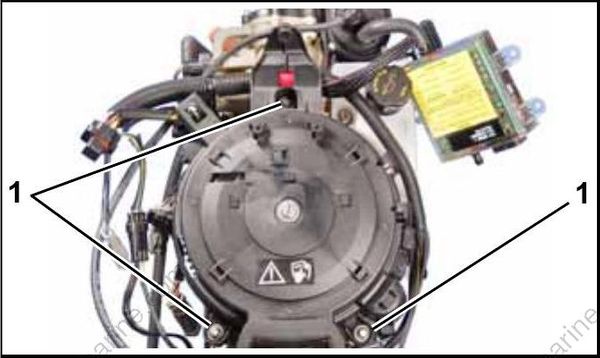

Install recoil starter assembly. Tighten mounting screws to a torque of 31 to 48 in. lbs. (3.5 to 5.5 N-m).
- Screws

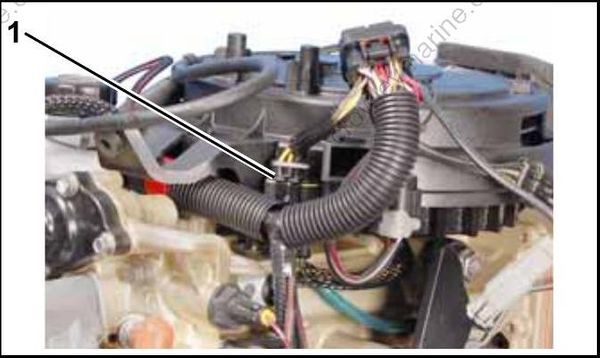

Install stator connector in retainer groove of starter housing.
- Stator connector
Prevent damage to wiring from rotating flywheel, make sure stator connector is securely fastened to the starter housing.

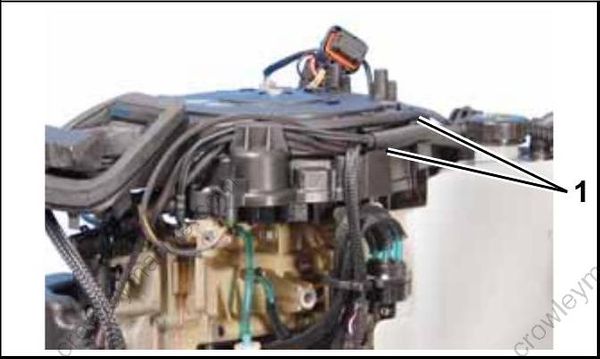

Position the vapor separator vent hose and wiring in the retainers on the recoil starter housing as shown.
- Retainers
