Service Manual 25-30 HP E-TEC Fuel System [Fuel System Circuit Diagram]

Related Products:
added updated
Service Manual 25-30 HP E-TEC Fuel System [Fuel System Circuit Diagram]
5007802
BRP Marine

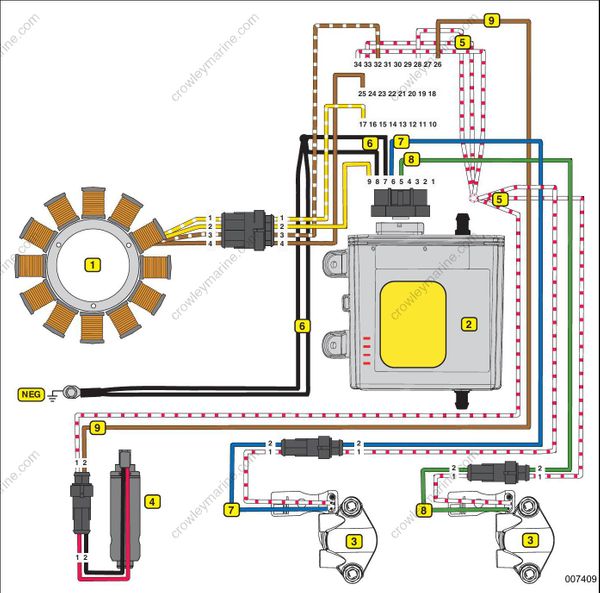

FUEL SYSTEM CIRCUIT DIAGRAM

1.Stator
2.EMM
3.Fuel injector
4.Fuel circulation pump
5.WHITE/RED (55 V)
6.BLACK ground wires
7.BLUE
8.GREEN
9.BROWN
