DASH CONNECTIONS, INSTRUMENT HARNESS

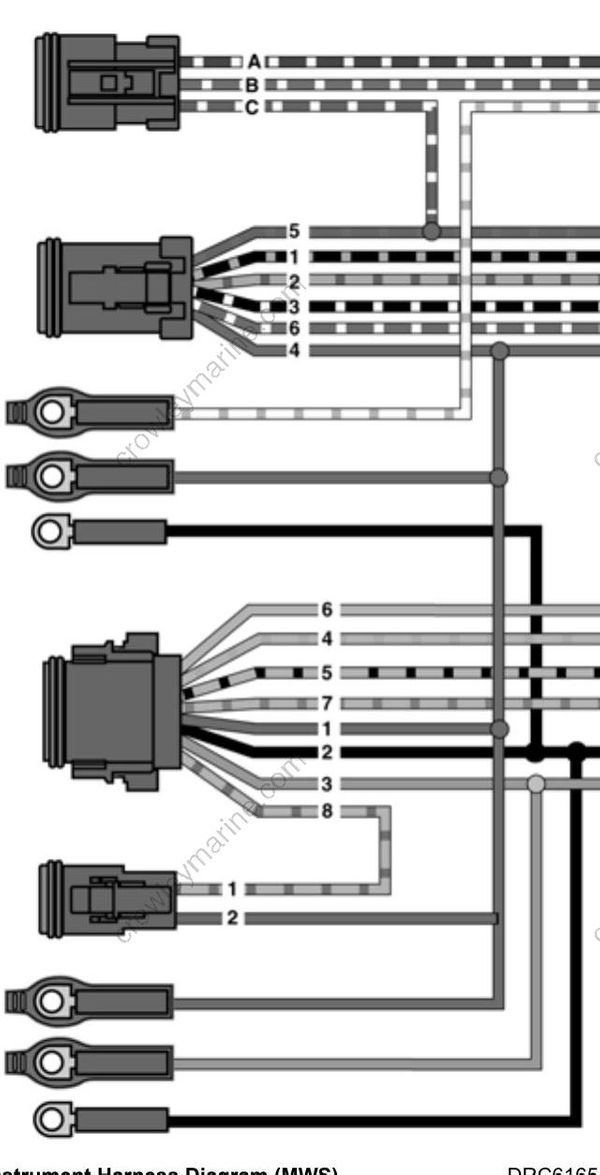

Instrument Harness Diagram (MWS)
3-pin connector – Connect to trim switch located in the handle of the remote control or to trim
switch mounted on the boat dash.
6-pin connector – Connect to a pre-wired remote control or to a dash-mounted key switch.
Black, purple, white/tan wires – Connect to the
trim gauge.
8-pin connector – Connect to a 2 in. SystemCheck gauge or to a 3 1/2 in. SystemCheck
tachometer.
2-pin connector – Must connect to the warning
horn in all installations.
Black, purple, gray wires – Connect to a conventional tachometer when a SystemCheck
tachometer is not used.
