TROUBLE CHECK CHART

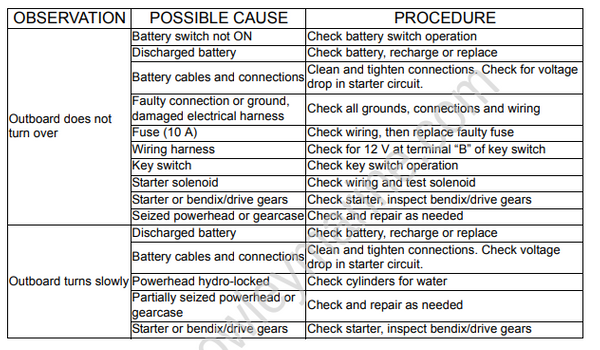

OUTBOARD WILL NOT START

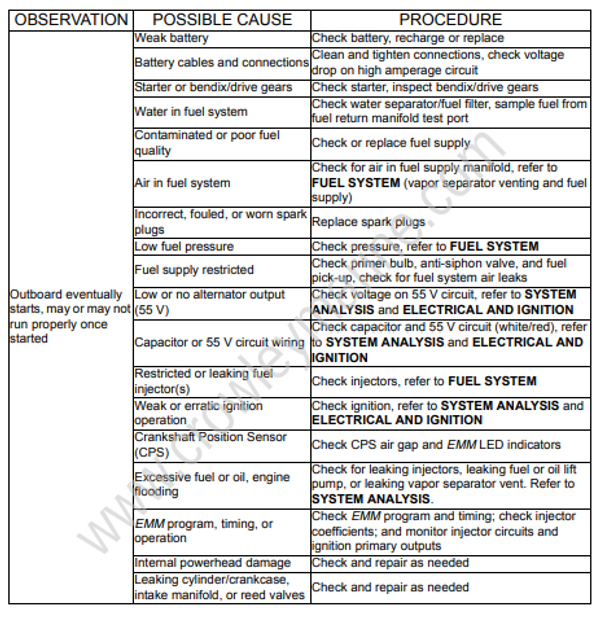

OUTBOARD HARD TO START

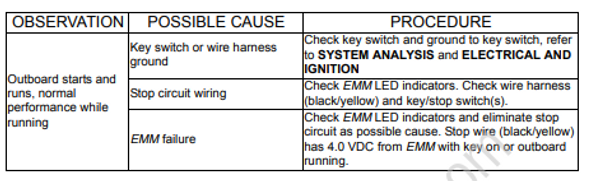

OUTBOARD WILL NOT SHUT OFF

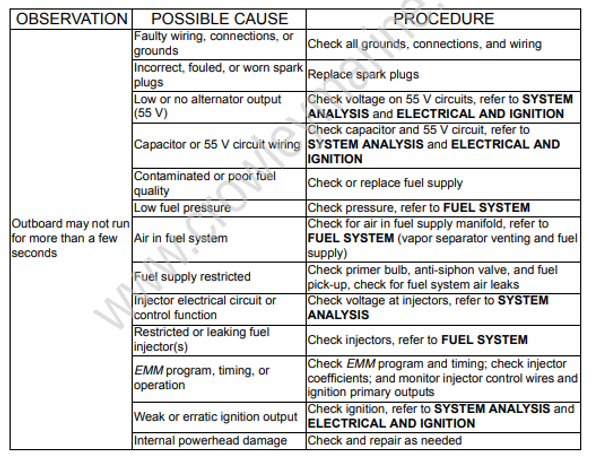

OUTBOARD STARTS AND STALLS

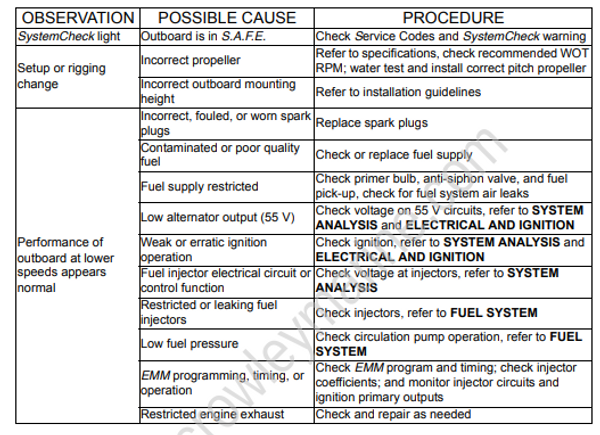

OUTBOARD STARTS, LOW MAXIMUM RPM

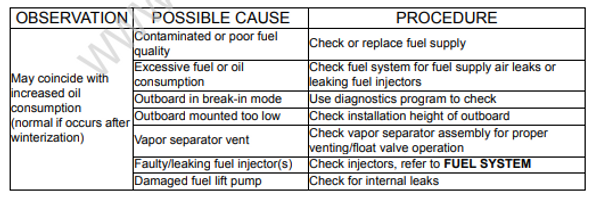

EXCESSIVE SMOKING

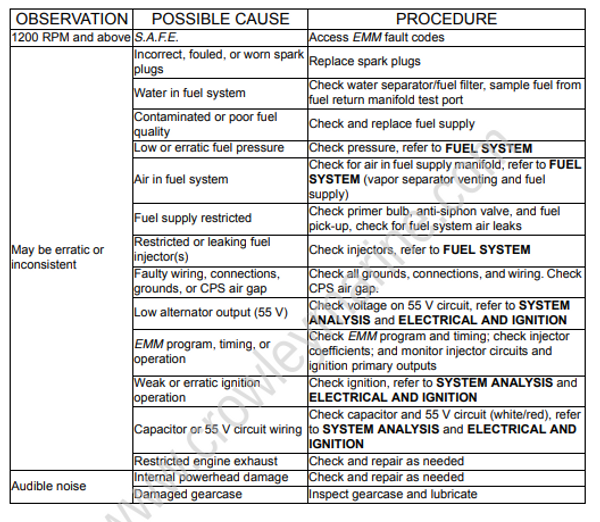

OUTBOARD SURGES, RUNS ROUGH
Hose Routing and Water Flow Diagram
25 – 30 HP E-TEC Inline 2 Cylinder
- Intake water screens
- Water pump
- Water tube
- Exhaust housing
- Cylinder block
- Pressure relief valve
- Thermostat
- Water supply to
vapor separator - Water supply, vapor
separator to EMM - Overboard indicator,
outgoing water from EMM

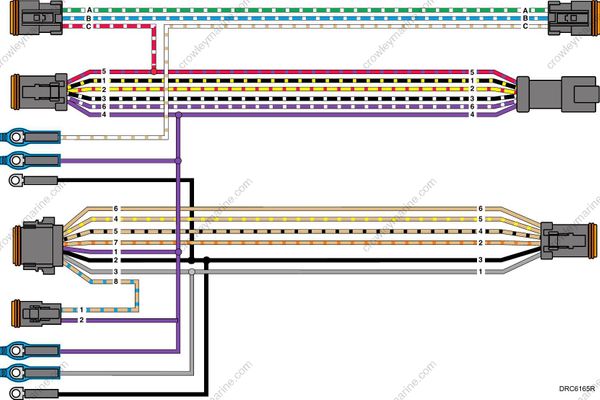

MWS Instrument Wiring Harness

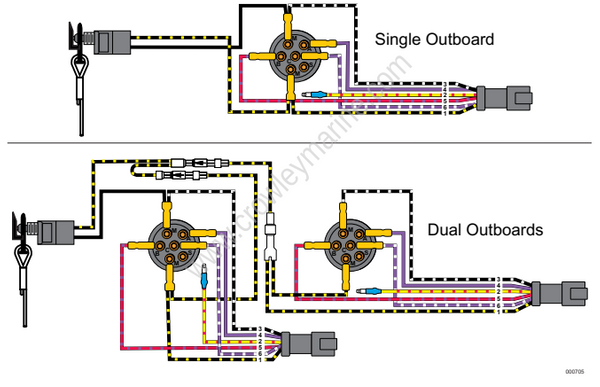

Lanyard Switch / Emergency Stop Circuits

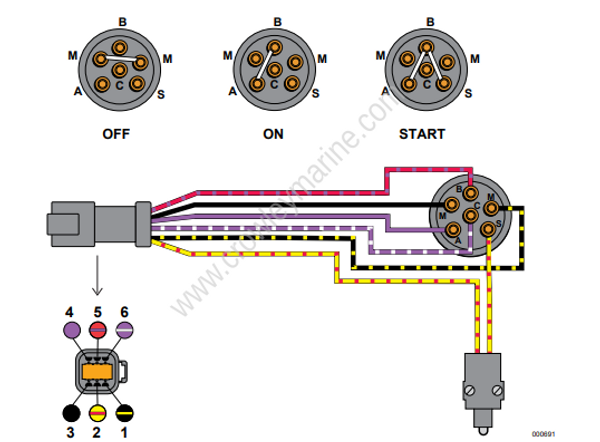

MWS Key Switch and Neutral Safety Switch
MWS DASHBOARD

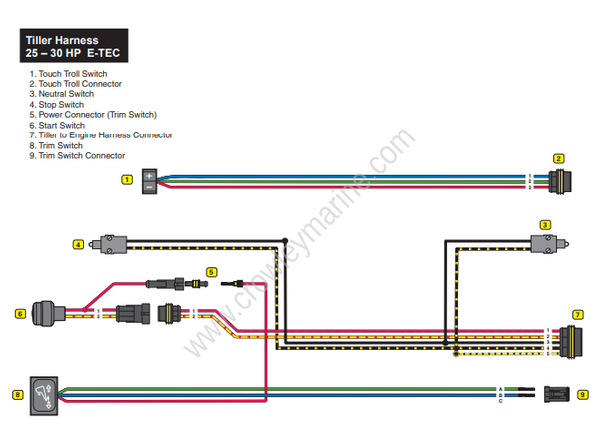

Tiller harness
25-30 HP E-TEC
1.Touch troll switch
2.Touch troll connector
3.Neutral switch
4.Stop switch
5.Power connector (Trim Switch)
6.Start switch
7.Tiller to Engine harness connector
8.Trim switch
9.Trim switch connector

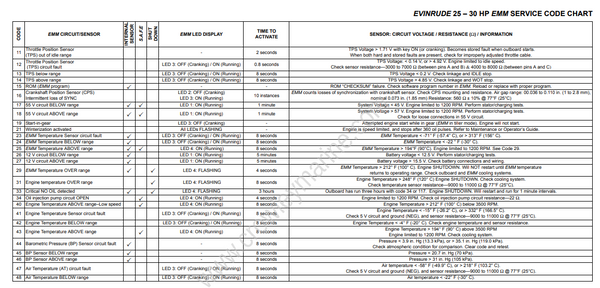

Evinrude E-TEC

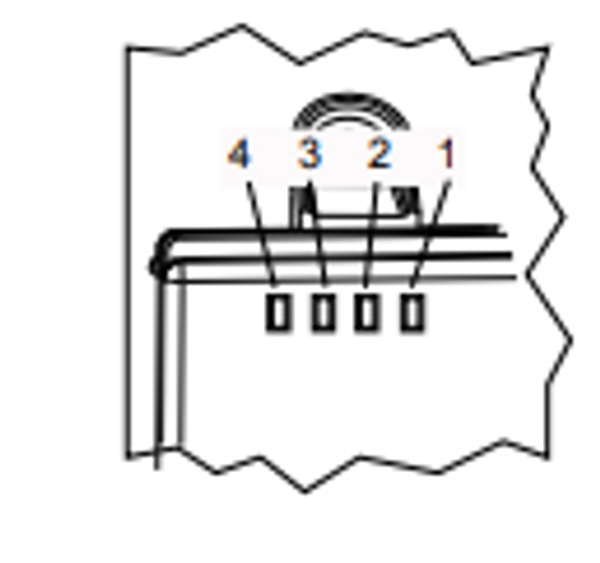

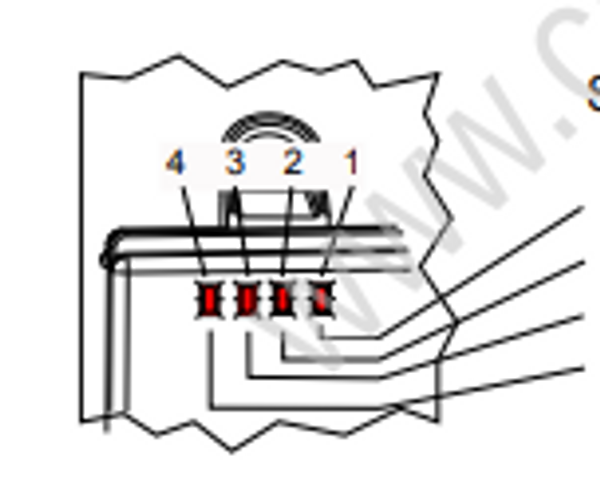

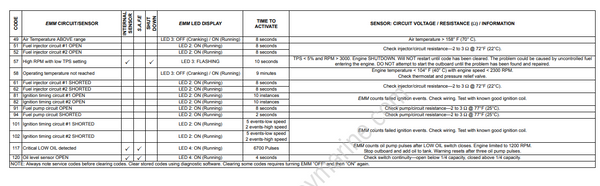

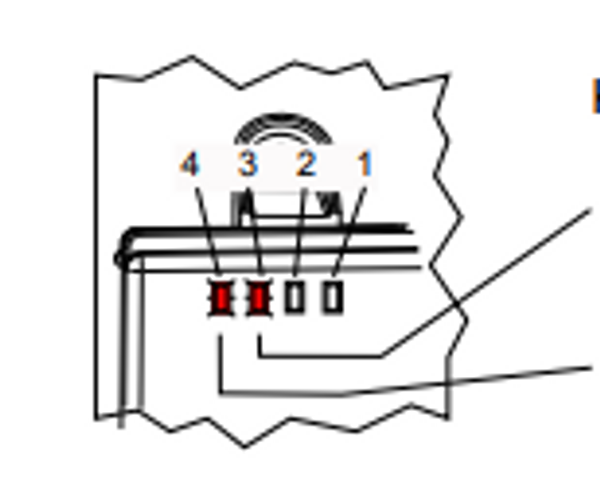

EMM LED Diagnostic Indicators
For more information, refer to SYSTEM ANALYSIS in the Service Manual.
KEY ON: LED’s illuminate to indicate circuit function
Sensors / 5V Circuits OK
FLASHING LED – URGENT conditon – Code 57
Engine will not start – Correct problem and clear codes
Stop circuit OK (not grounded)
FLASHING LED – URGENT overheat or no oil condition
Engine will not start – Correct problem and clear codes
No LED’s ON indicates EMM not receiving battery voltage or Recoil Start model.
STARTING : LED’s illuminate to indicate circuit function
Indicates 30V (or higher) on 55V circuit
Indicates CPS working and EMM SYNC
Sensor circuits working
Stop circuit OK
RUNNING : LED’s illuminate to indicate circuit fault
Exception: ALL LED’s ON / FLASHING indicates
Winterization Mode
