Service Manual 200-250 HP 3.3 L E-TEC Gearcase [Gearcase Assembly]

Related Products:
Service Manual 200-250 HP 3.3 L E-TEC Gearcase [Gearcase Assembly]
5007531
BRP Marine

Water Intake Screens

Install water intake screens. Tighten screws to a torque of 60 to 84 in. lbs. (7 to 9.5 N•m).

  1. Water intake screen

Shift Housing, Gear, and Propeller Shaft Installation

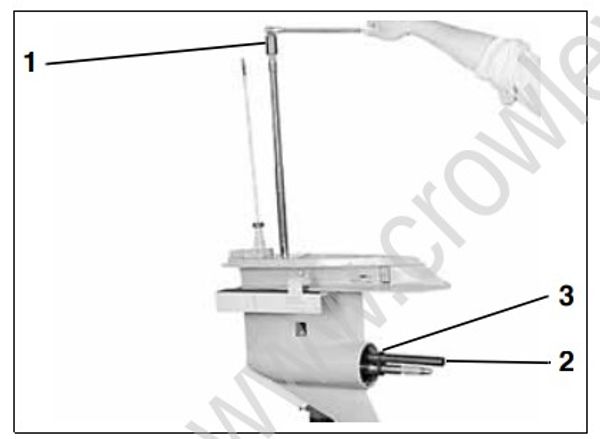

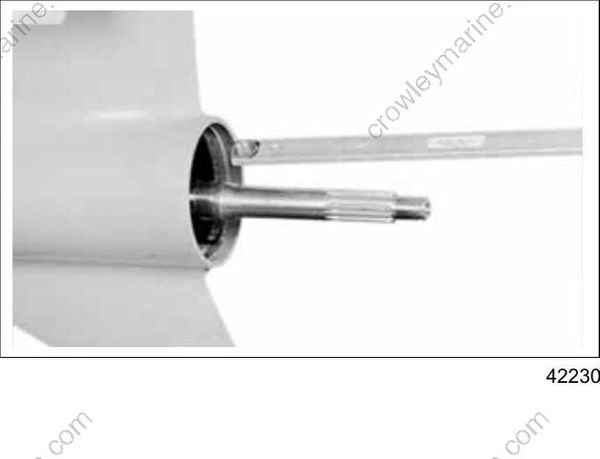

Push shifter detent into farthest downward position. Tip the rear of the gearcase slightly down ward to assist in the installation of the shaft assembly.

Be sure the thrust bearing and the thrust washer are in the proper position. Insert the shaft assembly fully into the gearcase while aligning shift housing pin with hole in forward end of gearcase housing.

Shift Rod Cover

Lubricate a new shift rod cover O-ring with Triple- Guard grease. Install the O-ring into the shift rod cover.

IMPORTANT: Make sure O-ring is fully seated in groove.

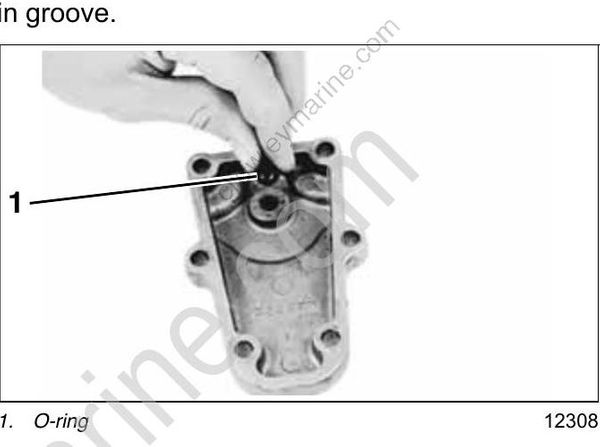

  1. O-ring

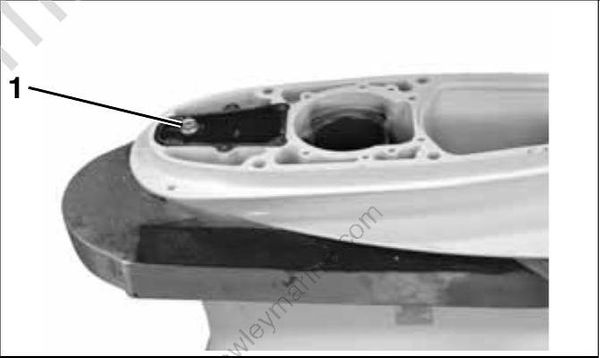

Install pitot tube screw and seal in housing.

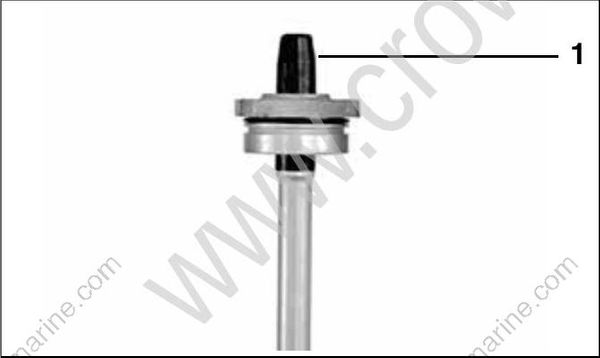

  1. Screw and seal

Install the shift rod spacer on the shift rod. On 30 in. models, first install the extension (not shown).

Place the shift rod grommet on the shift rod..

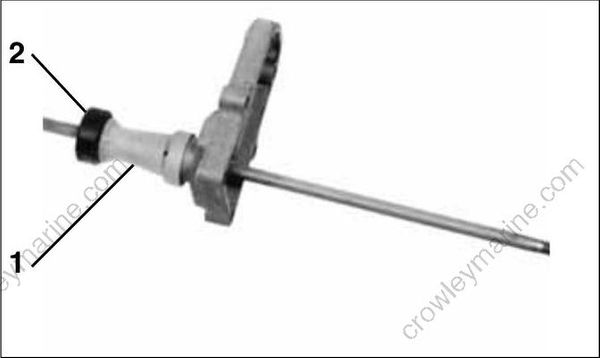

  1. Grommet
  2. Shift rod spacer

Apply Triple-Guard grease to the threaded end of the shift rod and insert it through the cover. Turn the shift rod while pushing it through the cover to avoid damaging the O-ring.

“L”, “L2” AND “M” TYPE GEARCASES

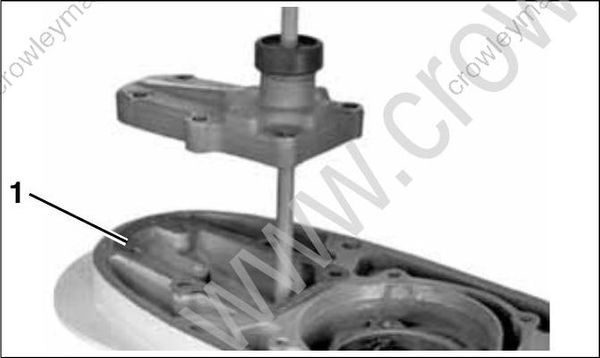

Apply Gasket Sealing Compound to both sides of a new shift rod cover gasket. Place the gasket on the gearcase.

  1. Cover gasket

“M2” TYPE GEARCASES

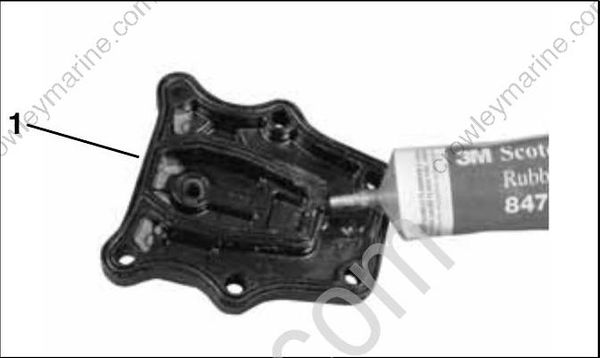

Apply Adhesive 847 to seal groove of shift rod cover. Place a new shift rod cover seal in groove.

  1. Cover seal

ALL GEARCASES

Thread the shift rod into the shifter detent about four turns.

Move shift rod from side to side while pushing on the propeller shaft to ensure proper alignment of the bearing housing locator pin into the locator pin hole in the gearcase.

Apply Gasket Sealing Compound to the threads of the shift rod cover screws. Tighten the screws to a torque of 60 to 84 in. lbs. (7 to 9.5 N•m).

Refer to SHIFT ROD ADJUSTMENT on p. 281.

Pinion Gear and Driveshaft Installation

Refer to DRIVESHAFT SHIMMING on p. 297.

Install new seals in driveshaft bearing housing. Refer to Driveshaft Bearing Housing Service on p. 293.

Place the driveshaft thrust bearing, thrust washer, and correct shim(s) on the driveshaft as shown.

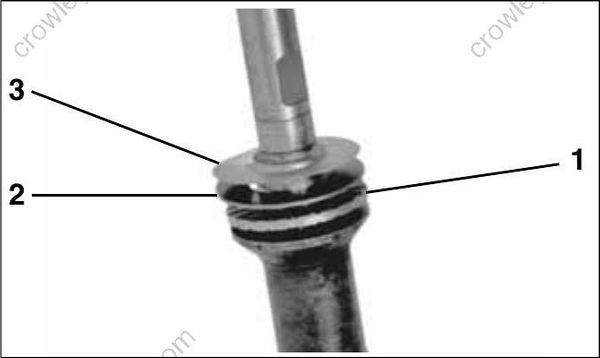

  1. Thrust bearing
  2. Thrust washer
  3. Shim(s)

Using Driveshaft Seal Protector, P/N 318674, slide the driveshaft bearing housing onto the driveshaft and into position in the gearcase.

  1. Seal protector

Adjust shift rod to move clutch dog as far forward as possible. Be sure excess grease is removed from the pinion bearing.

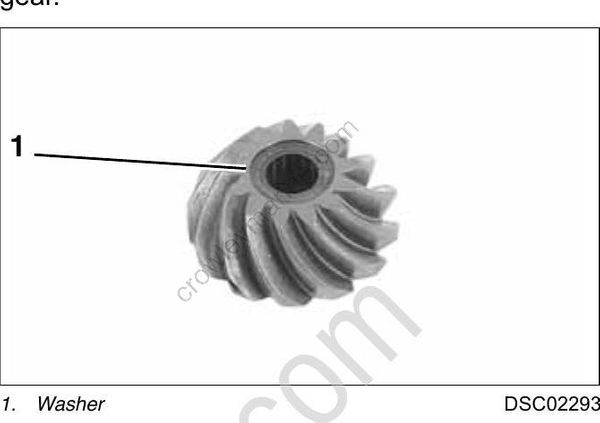

Washer must be snapped into recess of pinion

  1. Washer

IMPORTANT: The inside taper of the pinion gear and the driveshaft taper MUST be completely free of grease. Clean the tapers with Cleaning Solvent. Use a shop towel free of grease and lint.

Lightly coat the threads of a new pinion nut with outboard lubricant. Use Pinion Nut Starting Tool, P/N 342216, to install nut on the driveshaft. Turn the driveshaft by hand to thread the nut on to shaft.

Apply Gasket Sealing Compound to the threads of the driveshaft bearing housing screws. Tighten screws in stages to a torque of 120 to 144 in. lbs. (13.5 to 16.5 N•m).

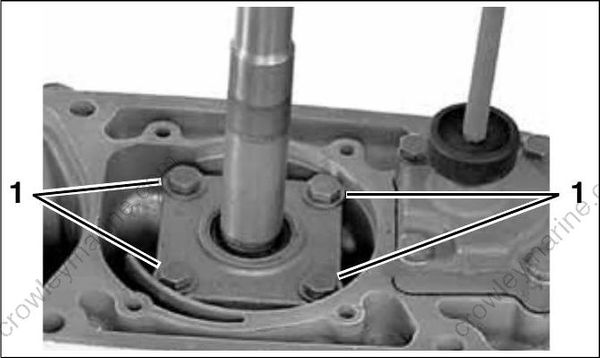

  1. Driveshaft bearing housing screws

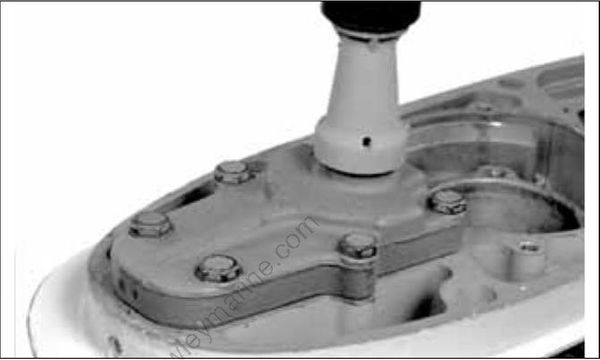

Use Driveshaft Holding Socket, P/N 311875, Pin ion Nut Holder, P/N 334455, and Wrench Retainer, P/N 341438, to tighten the pinion nut to a torque of 100 to 110 ft. lbs. (136 to 149 N•m). Pad handle of holder to prevent damage to gear case.

  1. Holding socket
  2. Pinion holder
  3. Retainer

Propeller Shaft Bearing Housing and Gear Installation – “L” and “M” Type

The propeller shaft bearing housing on these models SLIDES in or out of gearcase housing.

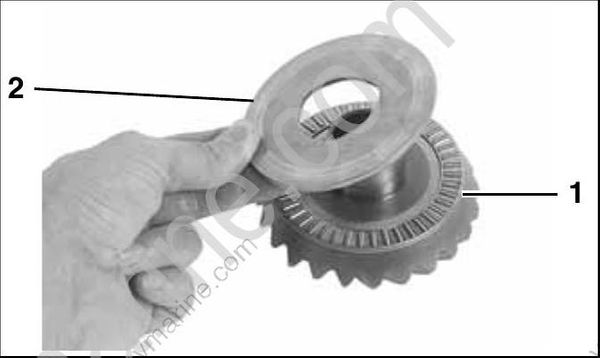

Oil and install thrust bearing and thrust washer on hub of reverse gear. Slide the gear assembly onto the propeller shaft until it engages the pinion gear.

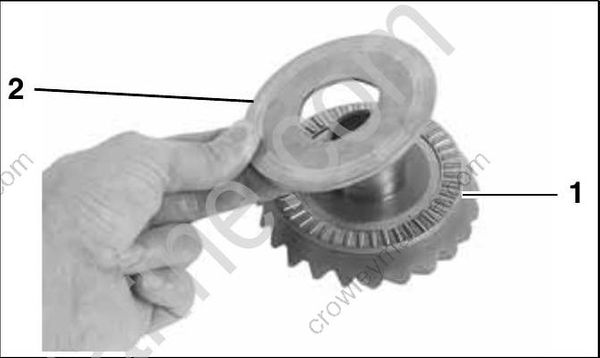

  1. Thrust bearing
  2. Thrust washer

Lightly apply Gasket Sealing Compound to a new bearing housing O-ring. Install O-ring in groove in the housing.

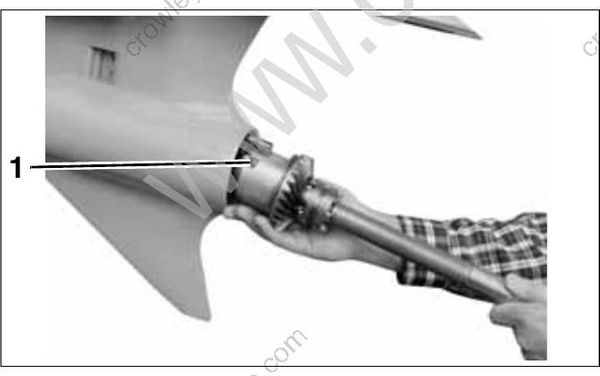

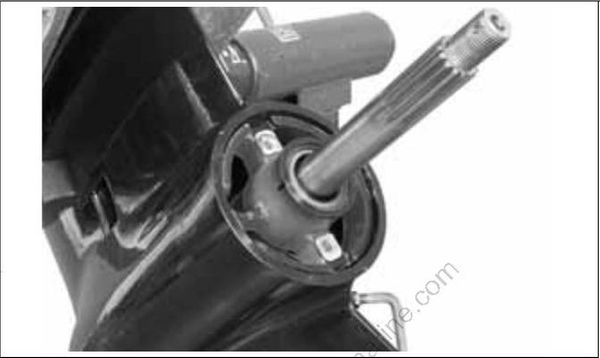

Install housing into gearcase. Align screw holes with retainer slots in gearcase.

Housing must be completely seated to install retainer tabs.

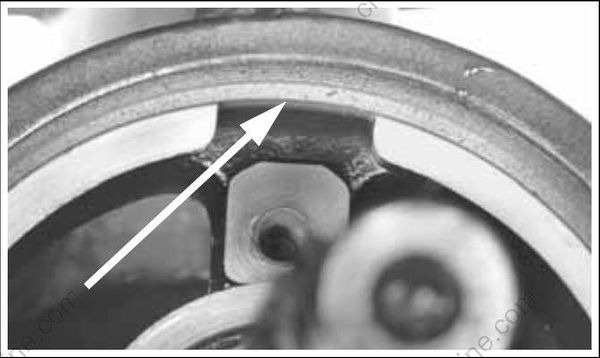

Retainer Tab Slot

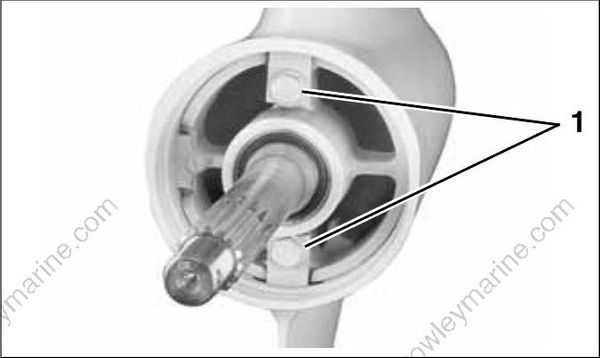

Install two retainers, washers and screws. Apply Ultra Lock to threads and tighten screws to a torque of 18 to 20 ft. lbs. (24 to 27 N•m).

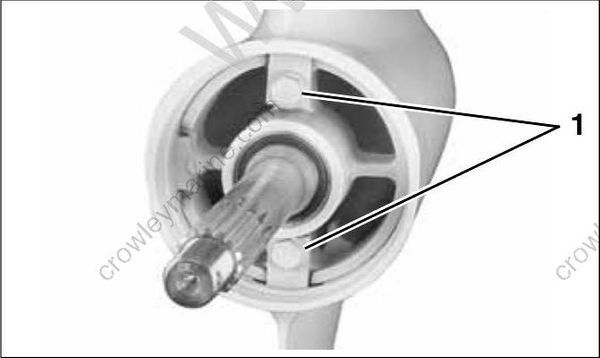

  1. Retainer tab screws

Loosen retainer screws 1/4 turn.

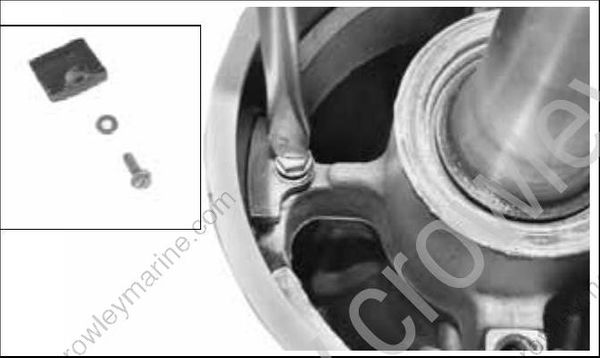

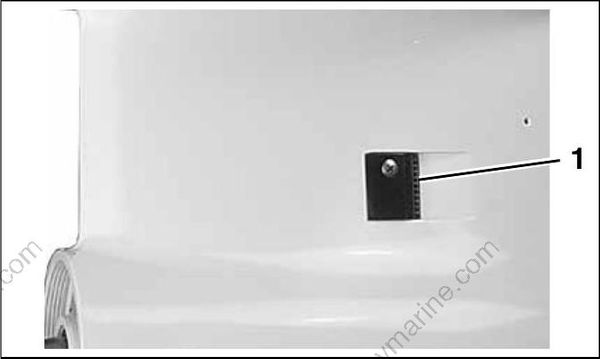

Install wedge, screw, and washer. Apply Ultra Lock to threads and tighten screw to a torque of 15 to 20 in. lbs. (1.7 to 2.3 N•m).

Re-tighten two retainer screws to 18 to 20 ft. lbs. (24 to 27 N•m).

Confirm that torque on the wedge screw is 15 to 20 in. lbs. (1.7 to 2.3 N•m).

Propeller Shaft Bearing Housing and Gear Installation – “L2” Type

IMPORTANT: The propeller shaft bearing housing on the “L2” type gearcases is PRESSED into the gearcase housing.

Oil and install thrust bearing and thrust washer on hub of reverse gear. Slide the gear assembly onto the propeller shaft until it engages the pinion gear.

  1. Thrust bearing and thrust washer

Lightly apply Triple Guard Grease to a new bearing housing O-ring. Install O-ring in groove in the housing. Grease the machined side surfaces of bearing housing.

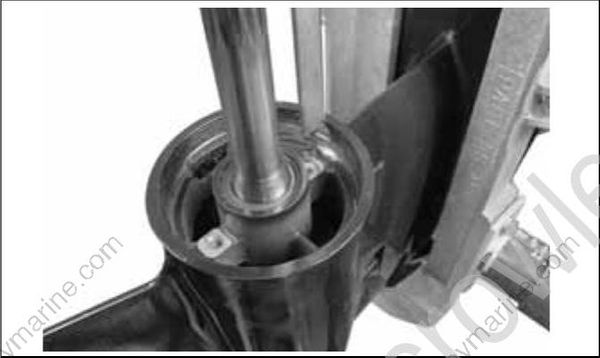

Install housing into gearcase. Align screw holes with retainer slots in gearcase.

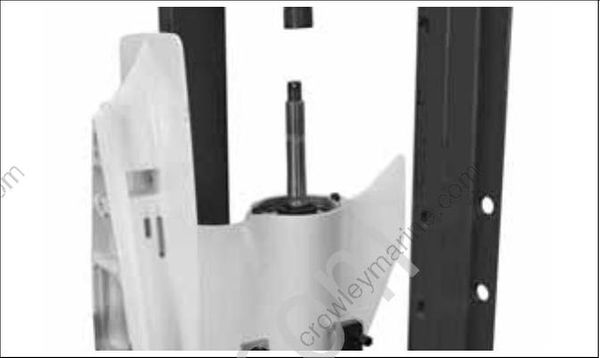

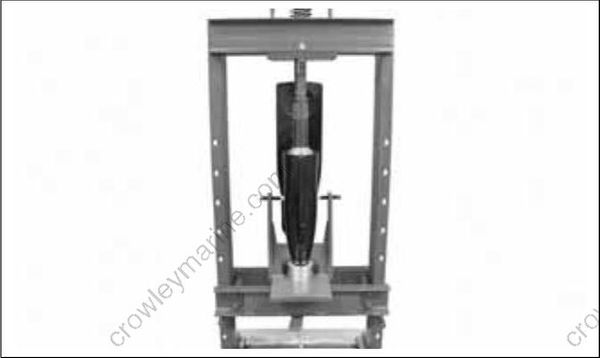

Use Installer Handle, P/N 345822, Propeller Shaft Bearing Housing Installer, P/N 354058, Gearcase Fixture, P/N 354059 and an appropriate floor press (10 ton or greater) to install housing into gearcase. Align and level gearcase assembly in fixture as shown. Secure fixture to floor press.

Housing must be completely seated in gearcase to install retainer tabs. Depth to retainer tab sur face on bearing housing is approximately 1 in. (25.4 mm ).

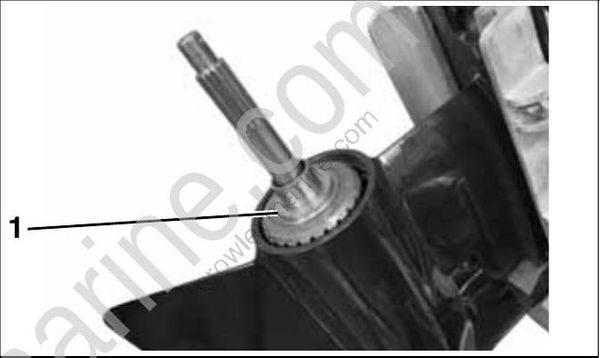

Install two retainers, washers and screws. Apply Ultra Lock to threads and tighten screws to a torque of 18 to 20 ft. lbs. (24 to 27 N•m).

  1. Retainer tab screws

Propeller Shaft Bearing Housing and Gear Installation – “M2” Type

IMPORTANT: The propeller shaft bearing housing on the “M2” type gearcases is PRESSED into the gearcase housing.

Oil and install thrust bearing and thrust washer on hub of reverse gear. Slide the gear assembly onto the propeller shaft until it engages the pinion gear.

  1. Thrust bearing
  2. Thrust washer

Lightly apply Triple Guard Grease to new bearing housing O-rings. Install O-rings in grooves in the housing. Grease the machined side surfaces of bearing housing.

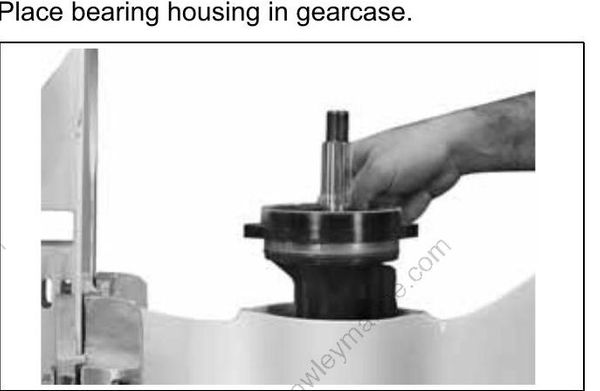

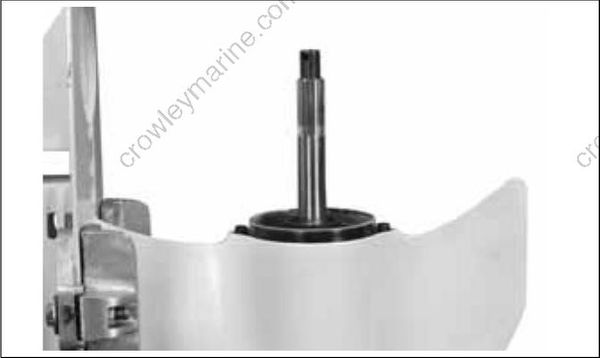

Place bearing housing in gearcase.

Align retaining holes in bearing housing with screw holes in gearcase. Thread Alignment Pins, P/N 354140, into gearcase.

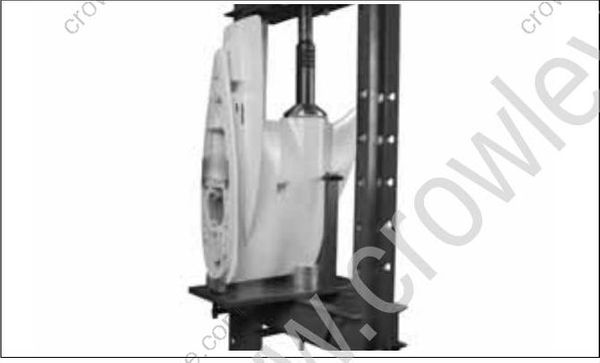

Use Installer Handle, P/N 345822, Propeller Shaft Bearing Housing Installer, P/N 354057, Gearcase Fixture, P/N 354059 and an appropriate floor press (10 ton or greater) to install housing into gearcase. Align and level gearcase assembly in fixture as shown. Secure fixture to floor press.

Housing must be completely seated in gearcase to install retainer screws. Bearing housing is approximately level with gearcase.

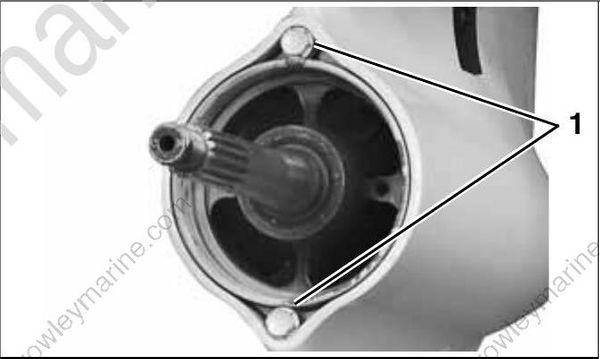

Apply Ultra Lock to threads and install two retaining screws. Tighten screws to a torque of 18 to 20 ft. lbs. (24 to 27 N•m).

  1. Retainer screws

Final Assembly and Adjustment

To complete gearcase assembly, refer to:

● GEARCASE LEAK TEST on p. 274

● WATER PUMP SERVICE on p. 278

● SHIFT ROD ADJUSTMENT on p. 281

● GEARCASE REMOVAL AND INSTALLATION on p. 275

● Gearcase Lubricant on p. 77

● Propeller Hardware Installation on p. 65

● Trim Tab Adjustment on p. 68
