Service Manual 200-250 HP 3.3 L E-TEC Engine Managment Module [Emm Servicing]

IMPORTANT: If a new EMM is being installed, refer to EMM Transfer on p. 107.

Removal

Disconnect exhaust pressure hose and cooling hoses from EMM.

Disconnect J1-A, J1-B, and J2 connectors. Remove two EMM retaining screws.

1. EMM mounting screws

Lift EMM away and to the starboard side.

Align slots in starboard side of EMM case with isolator mounts on cylinder block. Slide EMM into position.

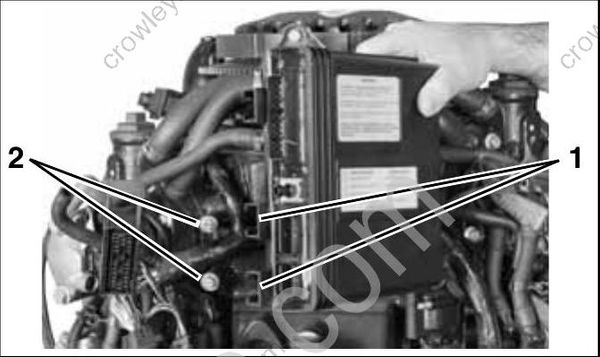

1. EMM mounting slots
2. Isolator mounts

Install two EMM retaining screws. Tighten screws 12 to 16 in. lbs. (1.5 to 2 N•m).

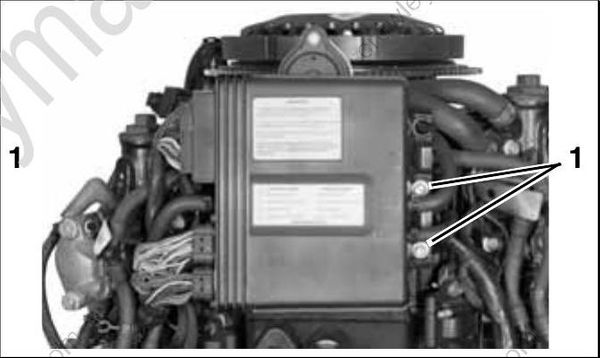

1. EMM mounting screws

Install J1-A, J1-B, and J2 connectors.

Install exhaust pressure hose and cooling hoses. Secure with tie straps.
