Step 1: POWERHEAD INSPECTION
For dimensions, refer to SERVICE SPECIFICATIONS on p. 10.
IMPORTANT: Before any inspection process can begin, all internal components must be completely clean and free of contaminants.
Visually inspect all parts. Check for unusual wear patterns, scuffing, or deterioration of aluminum parts, heat-related discoloration of bearings and bearing surfaces, and broken components.
Cylinder Head

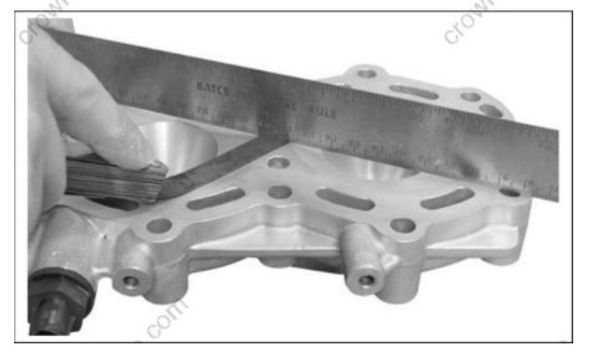

Check for cylinder head warpage using a piece of bar stock or machinist’s straightedge and a feeler gauge set.
Cylinder head warpage must not exceed 0.006 in. (0.15 mm) per inch of measurement. Replace head if warpage exceeds this dimension.
Check fuel deflector pins for damage.
Bearings
Inspect upper and lower main bearings for excess wear, nicks, or scratches. Replace if necessary.
Cylinder Bore

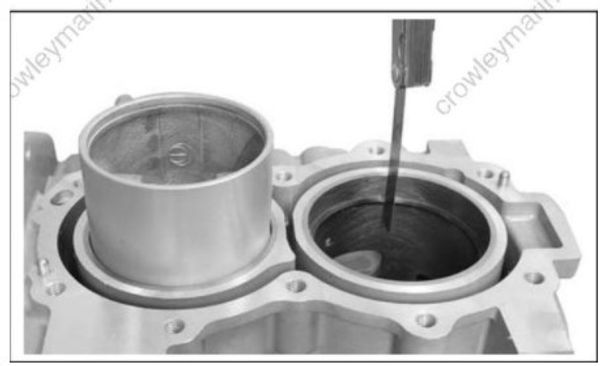

Use a Cylinder Bore Gauge to inspect each cylinder bore for an out-of-round, oversize, or tapered condition. Be sure the gauge is perfectly square in the bore when measuring.
TYPICAL

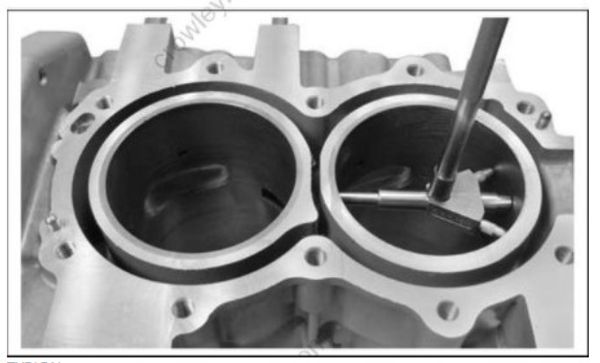

Measure each cylinder in at least two areas. Each area should be measured twice. The difference between the two measurements in each area is the cylinder out-of-round dimension.
- The cylinder must not be out-of-round by more than 0.004 in. (0.10 mm).
The dimensional difference between the two areas is cylinder taper.
- The cylinder taper must not exceed 0.002 in. (0.05 mm).

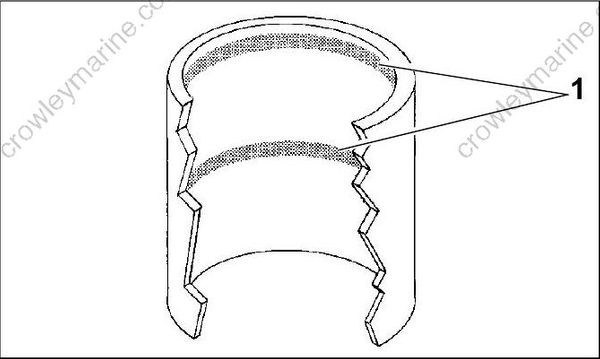

- Measurement areas
The difference between the measurements and standard bore is cylinder oversize. For dimensions, refer to SERVICE SPECIFICATIONS on p. 10.
- The cylinder must not be oversized by more than 0.003 in. (0.08 mm).
Pistons
Visually inspect pistons for signs of abnormal wear, scuffing, cracks, or burning.
Piston Rings
For new ring sets, place each ring separately in its respective bore. Use a piston to square the ring in the cylinder. Use a feeler gauge to measure the ring end gap.
Ring end gap should be:
- 0.011 to 0.019 in. (0.30 to 0.50 mm)
IMPORTANT: Ring end gap increases approximately 0.003 in. (0.076 mm) for each 0.001 in. (0.025 mm) increase in cylinder bore diameter. DO NOT exceed cylinder oversize dimension.

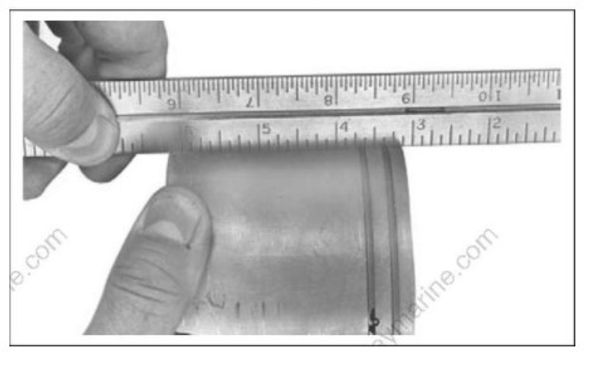

Use a machinist’s straightedge to check for proper ring clearance. Position piston rings on piston. Push rings into groove and hold straightedge against the side of the piston. Rings must be even or just below the surface of piston. Rings must move freely in piston ring groove.
Step 2: POWERHEAD ASSEMBLY
IMPORTANT: Proceed slowly. Make no forced assemblies unless a pressing operation is called for. All internal components must be perfectly clean and lightly coated with outboard lubricant.
IMPORTANT: Use new wrist pin retaining rings, gaskets, seals, and O-rings during assembly.
Crankshaft Assembly

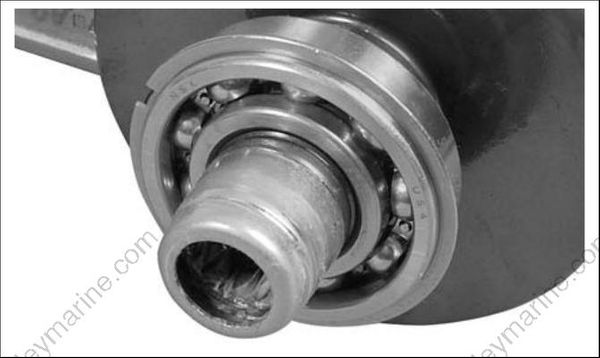

Oil the end of the crankshaft. Use Crankshaft Bearing/Sleeve Installer, P/N 339749, and place a new lower main bearing onto crankshaft with lettered side facing the tool. Install bearing until it seats on the crankshaft.

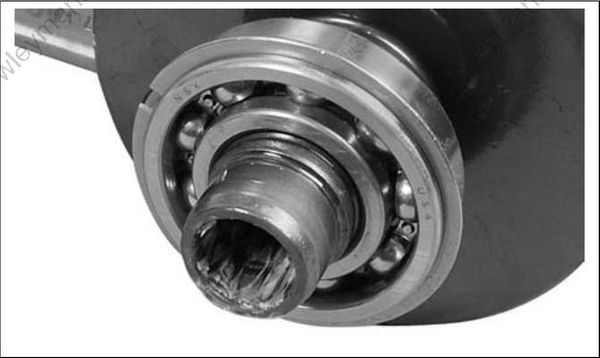

Oil the end of the crankshaft. Use Crankshaft Bearing/Sleeve Installer, P/N 339749, to drive a new sleeve onto the crankshaft until the installer contacts the lower main bearing.
