EMM SERVICING
IMPORTANT: If a new EMM is being installed, refer to EMM Transfer on p. 65.
Removal
Disconnect cooling hoses from EMM. Disconnect J1-A connector.
Remove two EMM retaining screws. Remove EMM.
007396

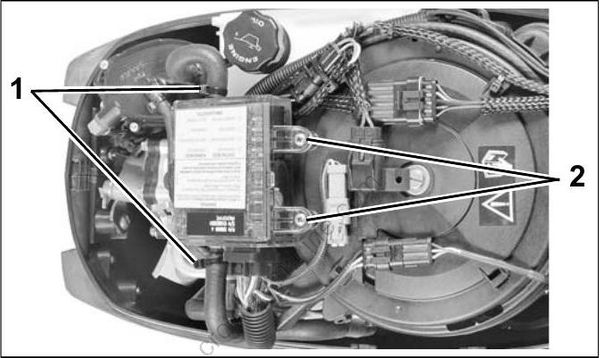

- Cooling hose connections
- EMM mounting screws
Installation
Installation is the reverse of removal. Pay close attention when performing the following tasks.
Make sure isolator mount is in place on recoil starter housing. Slide pin at rear EMM into position on isolator mount.
007397
- Isolator mount
- Pin
IMPORTANT: Turn self-tapping screws counter clock-wise to start the threads and clockwise to tighten. Failure to follow this procedure can dam age the threads of the housing. Tighten screws securely.
Install harness connector and cooling hoses. Secure hoses with tie straps.
