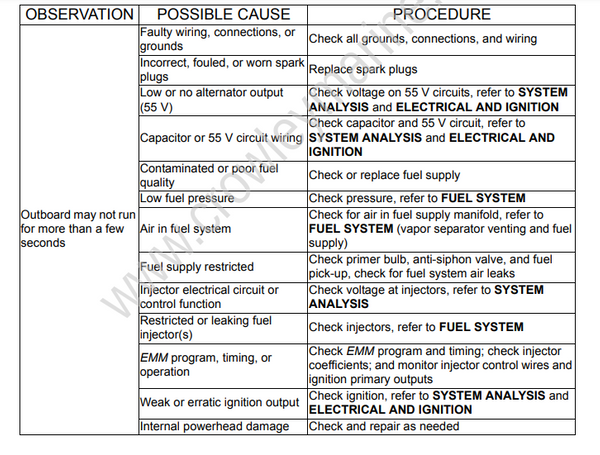

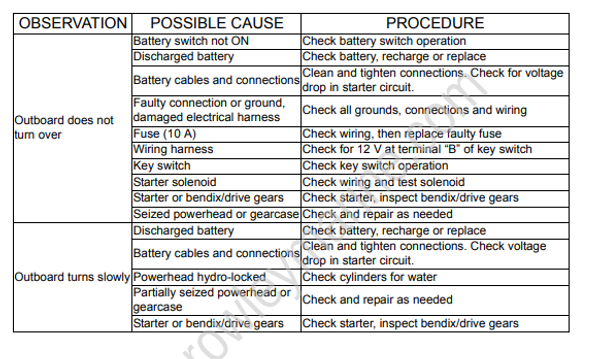

OUTBOARD WILL NOT START
OUTBOARD WILL NOT START

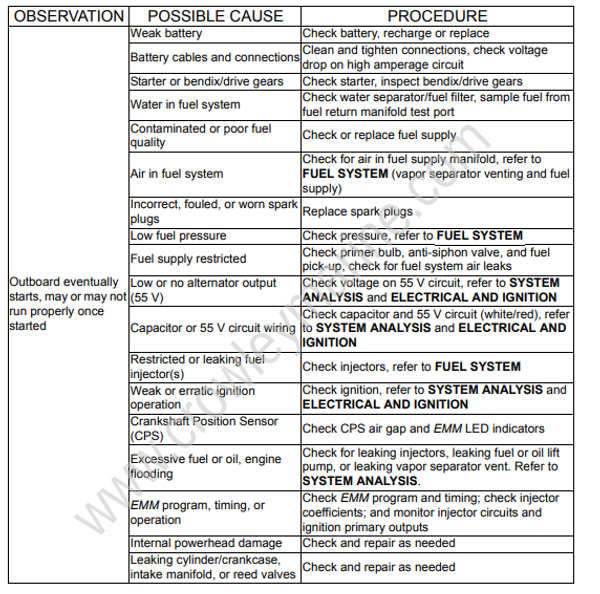

OUTBOARD HARD TO START

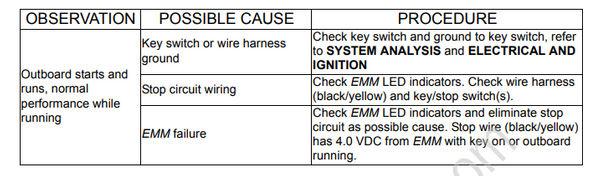

OUTBOARD WILL NOT SHUT OFF
OUTBOARD STARTS AND STALLS

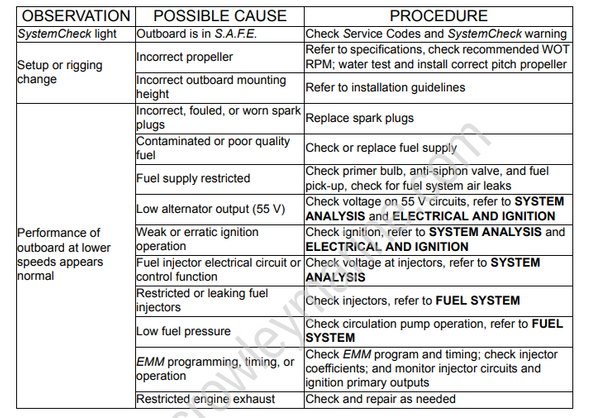

OUTBOARD STARTS, LOW MAXIMUM RPM

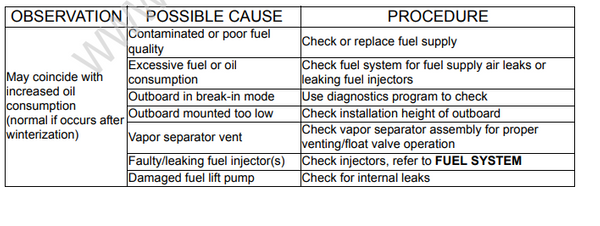

EXCESSIVE SMOKING
OUTBOARD SURGES, RUNS ROUGH
Hose Routing and Water Flow Diagram
15 – 30 HP E-TEC Inline 2 Cylinder
- Intake water screens
- Water pump
- Water tube
- Exhaust housing
- Cylinder block
- Pressure relief valve
- Thermostat
- Water supply to vapor separator
- Water supply, vapor separator to EMM
- Overboard indicator, outgoing water from EMM

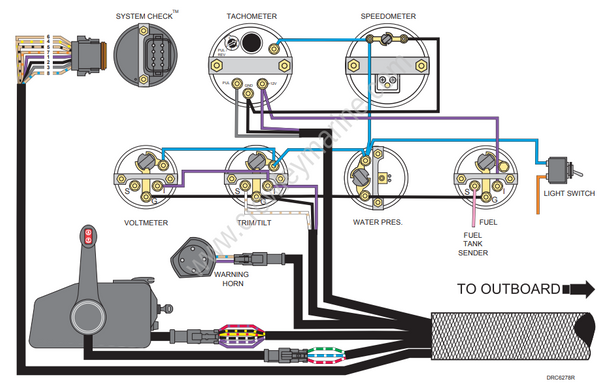

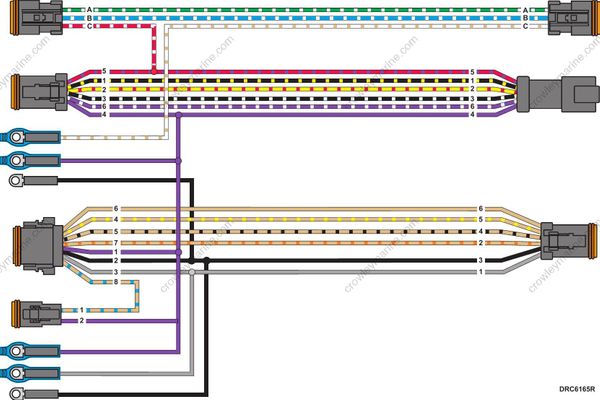

MWS Instrument Wiring Harness

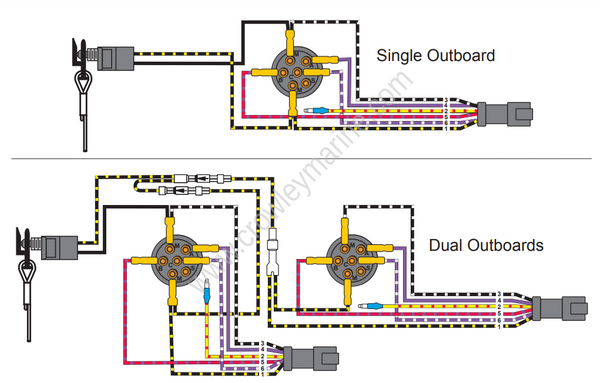

Lanyard Switch / Emergency Stop Circuits

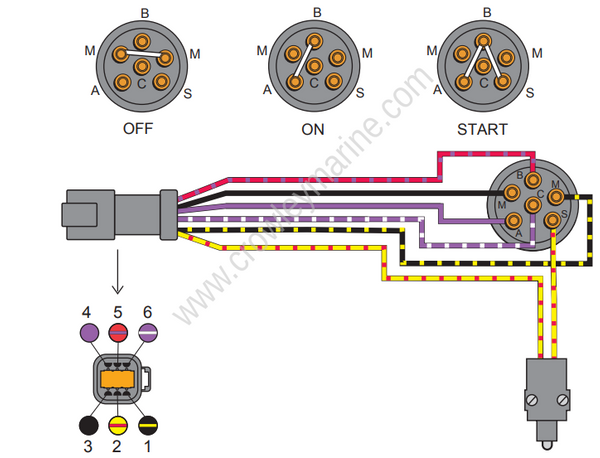

MWS Key Switch and Neutral Safety Switch

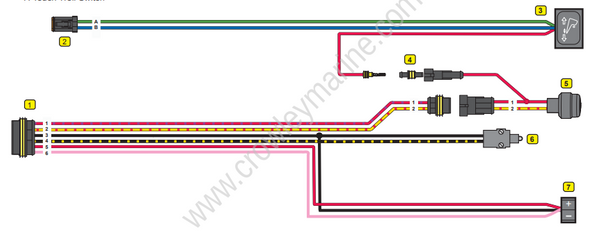

MWS DASHBOARD
- Tiller to Engine Harness Connector
- Trim Switch Connector
- Trim Switch
- Power Connector (Trim Switch)
- Start Switch
- Stop Switch
- Touch Troll Switch
Evinrude E-TEC

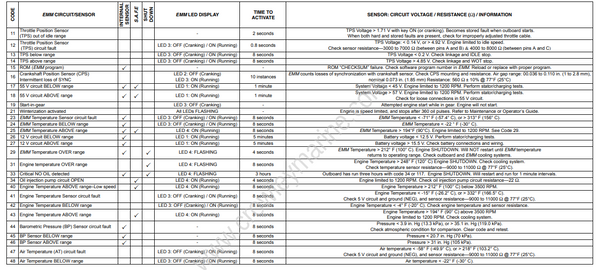

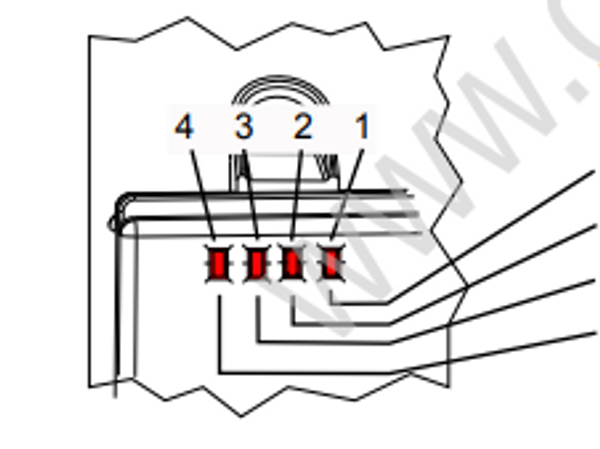

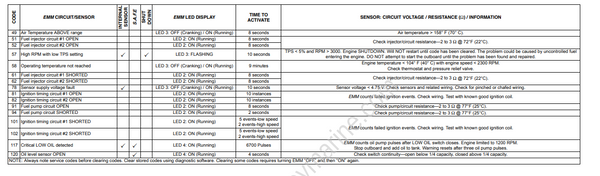

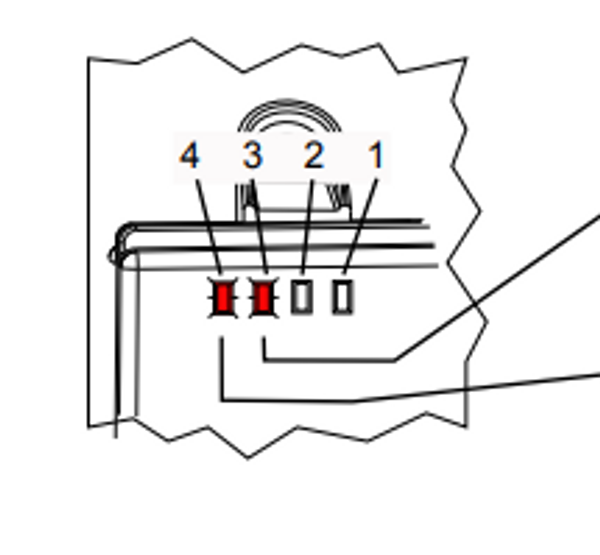

EMM LED Diagnostic Indicators
In-line 15–30HP Models
KEY ON: LED’s illuminate to indicate circuit function
Sensors / 5V Circuits OK
FLASHING LED – URGENT conditon – Code 57
Engine will not start – Correct problem and clear codes
Note: No LED’s ON indicates EMM not receiving battery voltage
or Recoil Start model.
STARTING : LED’s illuminate to indicate circuit function
Indicates 30V (or higher) on 55V circuit
Indicates CPS working and EMM SYNC
Sensor circuits working
Stop circuit OK
RUNNING : LED’s illuminate to indicate circuit fault
Exception: ALL LED’s ON / FLASHING indicates Winter ization Mode

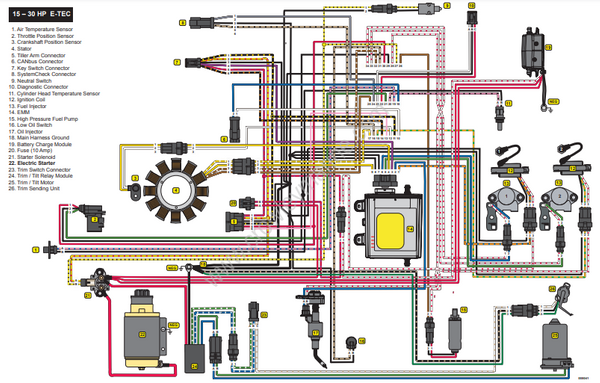

- Air Temperature Sensor
- Throttle Position Sensor
- Crankshaft Position Sensor
- Stator
- Tiller Arm Connector
- CAN bus Connector
- Key Switch Connector
- System Check Connector
- Neutral Switch
- Diagnostic Connector
- Cylinder Head Temperature Sensor
- Ignition Coil
- Fuel Injector
- EMM
- High Pressure Fuel Pump
- Low Oil Switch
- Oil Injector
- Main Harness Ground
- 30 HP E-TEC
- Low Oil Switch
- Oil Injector
- Main Harness Ground
- Battery Charge Module
- Fuse (10 Amp)
- Starter Solenoid
- Electric Starter
- Trim Switch Connector
- Trim / Tilt Relay Module
- Trim / Tilt Motor
- Trim Sending Unit
