Service Manual 115-200 HP E-TEC Oiling System [Oil Recirculation Diagrams - V4]

Related Products:
added updated
Service Manual 115-200 HP E-TEC Oiling System [Oil Recirculation Diagrams - V4]
5008152
BRP Marine

Sections:

  1. Oil Supply Diagrams -V6
  2. Oil Recirculation Diagram -V4

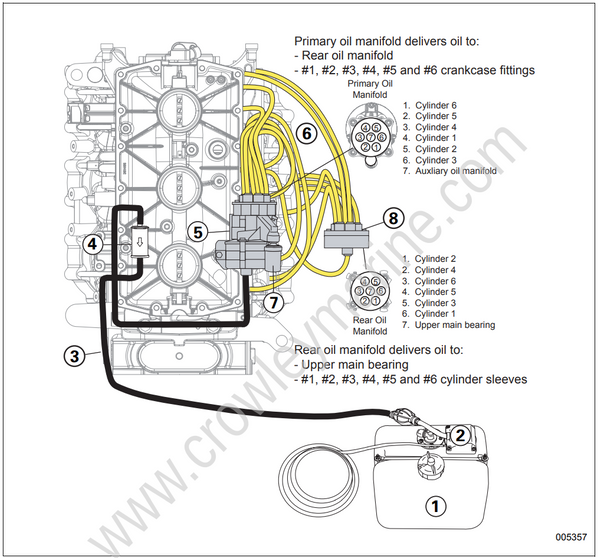

Oil Supply Diagrams -V6

1.Oil tank assembly

2.Oil pick-up

3.Oil supply hose

4.In-line oil filter

5.Oil injector assembly

6.Oil distribution hoses

7.Oil pressure sensor

8.Rear oil manifold

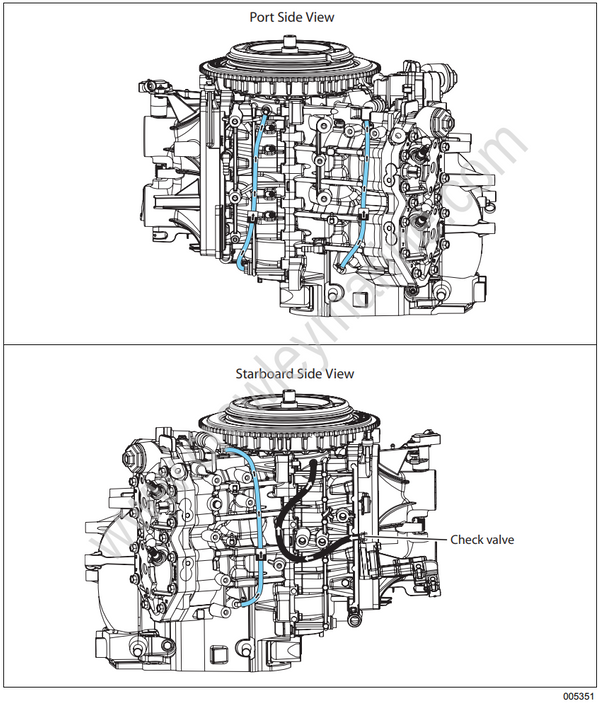

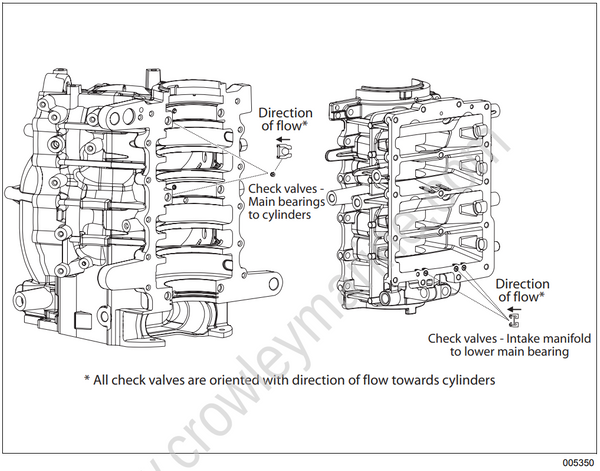

Oil Recirculation Diagram -V4
