EXTENSION SERVICE – V4 Models
Removal

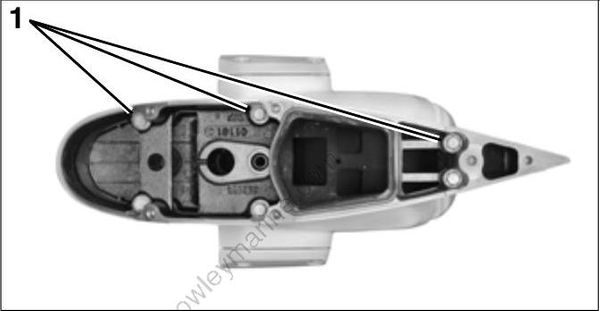

Remove six screws retaining extension.
007180
- Screws
Remove extension.

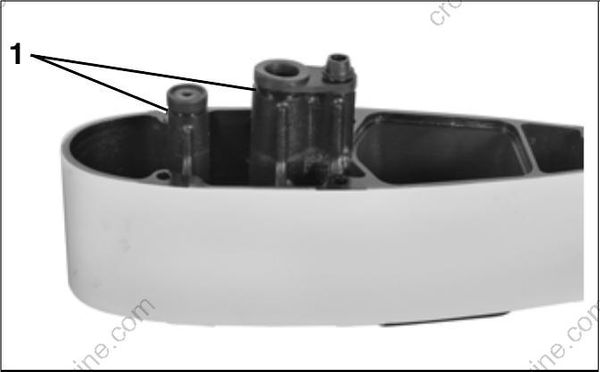

Remove grommets and seal.
Installation
Apply Adhesive 847 to the shift rod and water tube flange of the extension.
Install new grommets. Apply Adhesive 847 to the bottom flange of the extension.
Install a new seal. Apply Triple-Guard grease to outer seal surface.
007179
- Adhesive 847
Install extension with six screws and tighten to a torque of 18 to 20 ft lb. (24 to 27 N·m).
STERN BRACKET
Stern Bracket Removal
Before servicing the stern bracket:
• Remove gearcase. Refer to Gearcase GEARCASE REMOVAL AND INSTALLATION on p. 310.
• Remove powerhead. Refer to Powerhead POWERHEAD REMOVAL on p. 240.
• Remove exhaust housing. Refer to Exhaust Housing Exhaust Housing Removal on p. 286.
• Remove power trim/tilt unit. Refer to TRIM AND TILT section.
Stern Bracket Disassembly

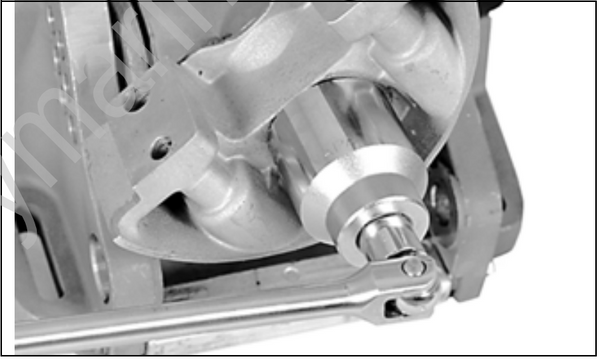

Remove and discard steering shaft locknut.
30738

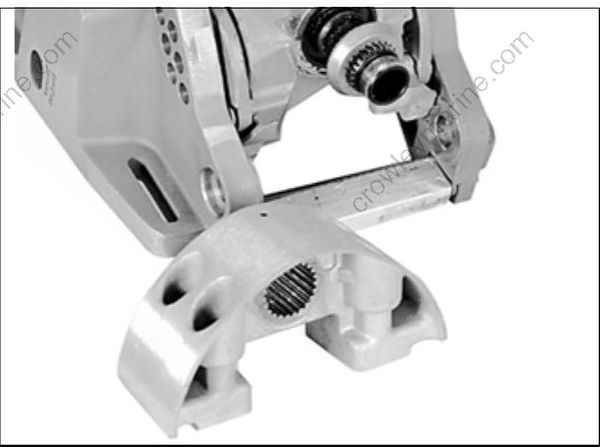

Remove the lower mount bracket and keeper.
30736
