Service Manual 115-200 HP E-TEC Engine Cover Service [Lower Cover Service]

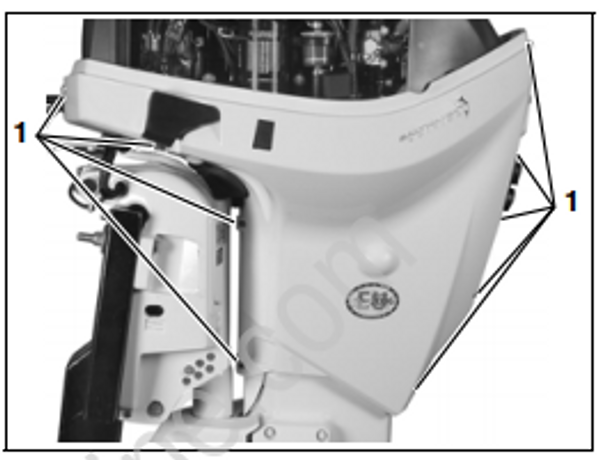

• 1. Lower cover screws

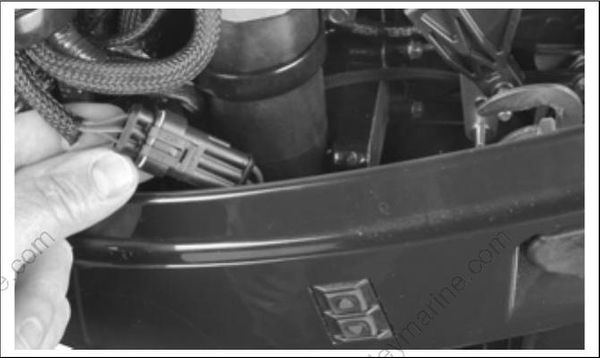

Loosen port side cover slightly, and disconnect trim/tilt switch connector. Then, remove port and starboard covers.

Install the lower engine covers and tighten all screws to a torque of 24 to 36 in. lbs. (3 to 4 N·m).

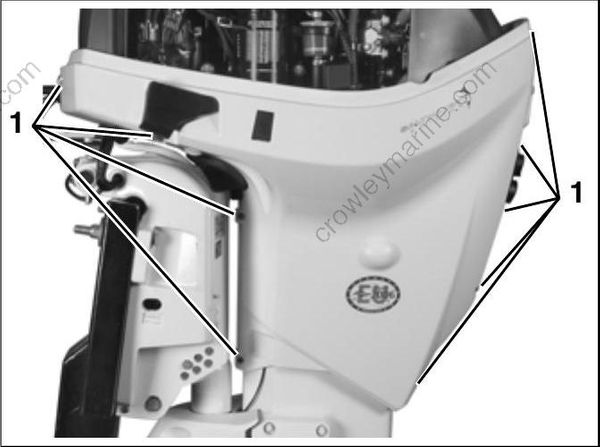

• 1. Lower cover screws

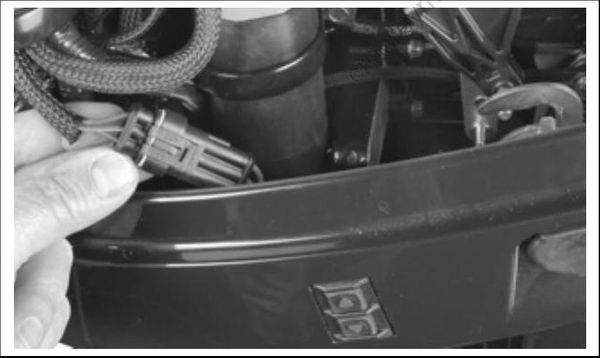

Connect trim/tilt switch connector.

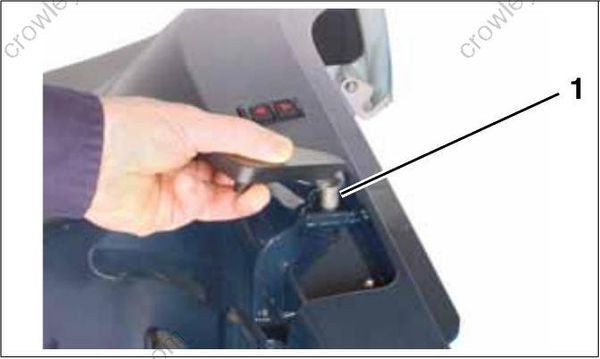

Apply a light coat of Triple-Guard grease to latch handle shaft. Insert handle into lower cover.

• 1. Triple-Guard grease

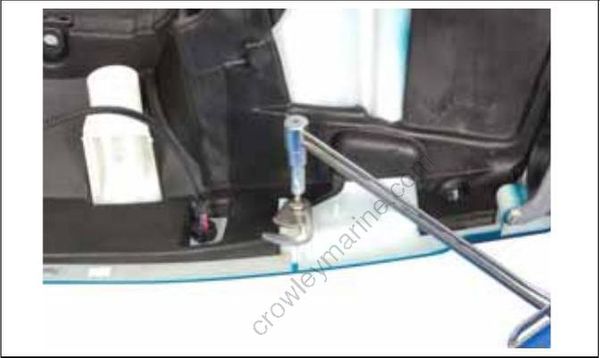

Apply Ultra-Lock to screw threads. Place spring washer and hook into position and tighten screw to a torque of 180 in. lbs. (20 N·m).

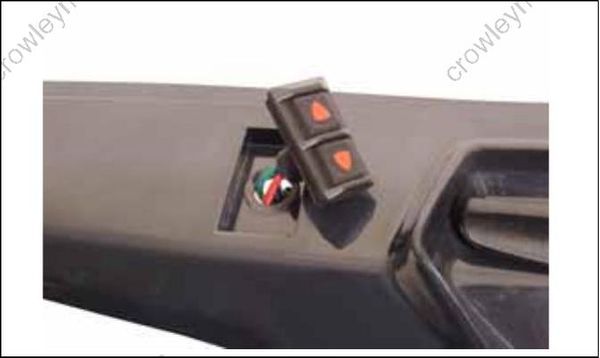

Place switch into position through cover.

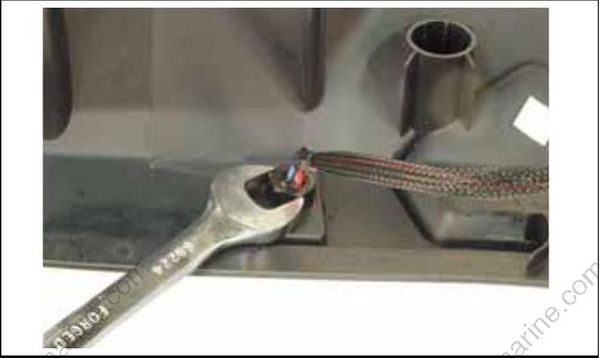

Install nut on switch. Tighten nut to a torque of 10 to 16 in. lbs. (1 to 2 N·m).

Install electrical connector. Refer to CONNECTOR SERVICING on p. 175.
