UPPER COVER SERVICE
Latch Hook Installation
Insert threaded bracket into pocket.
- Bracket
Apply Ultra-Lock to screw threads. Place hook into position. Tighten screws to a torque of 60 to 84 in. lbs. (7 to 9.5 N·m).
Upper Cover Cap Replacement

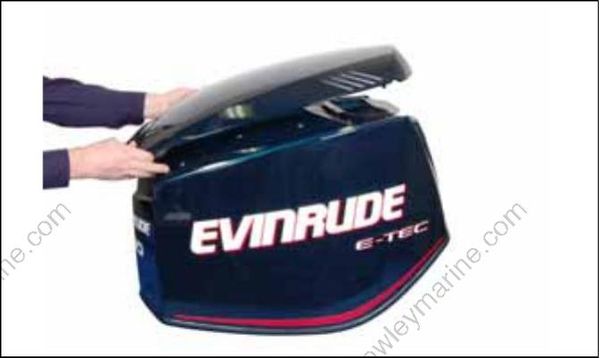

Place new upper cap into position.

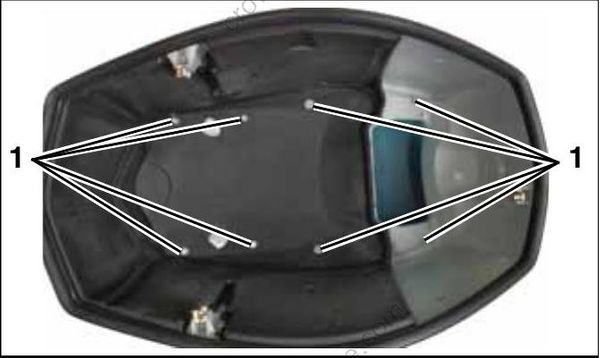

Tighten self-tapping screws to a torque of 24 to 36 in. lbs. (2.7 to 4 N·m).
- Upper cap screws
