EXHAUST RELIEF MUFFLER ASSEMBLY
The exhaust relief muffler is located at the rear of the powerhead and concealed by the lower motor covers. The exhaust relief grommet connects directly to the muffler assembly.

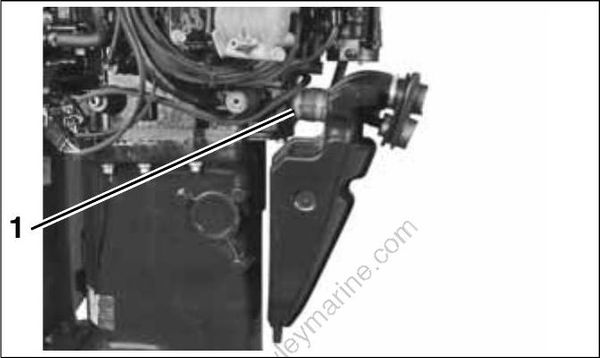

- Exhaust relief grommet
The muffler assembly connects to the exhaust relief hoses at the base of the powerhead.

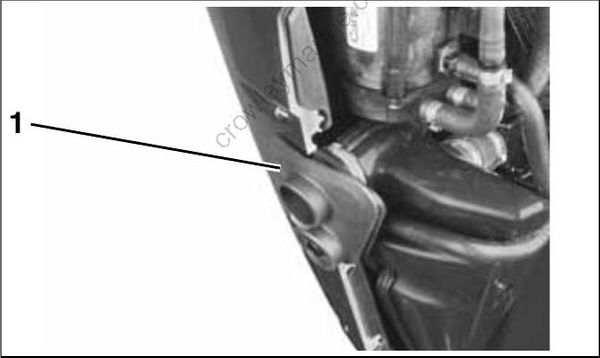

- Exhaust relief hoses
The overboard indicator and flush port in the exhaust relief grommet connect to the vapor separator with a hose. This hose is not connected to the muffler assembly.

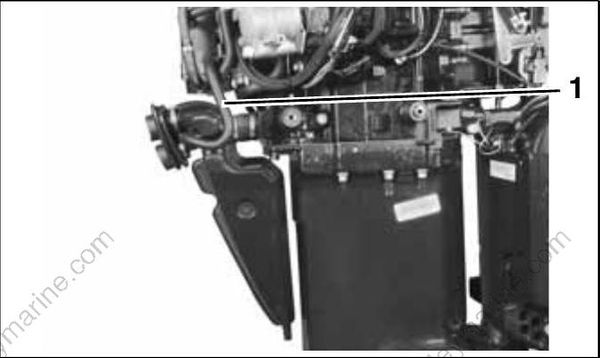

- Overboard indicator hose
Periodically inspect hoses and connections for condition. Replace muffler or hoses as needed.
