Service Manual 115-200 HP 60° V4-V6 E-TEC Installation And Predelivery [Outboard Rigging]

To prevent accidental starting while servicing, disconnect the battery cables at the battery. Twist and remove all spark plug leads.

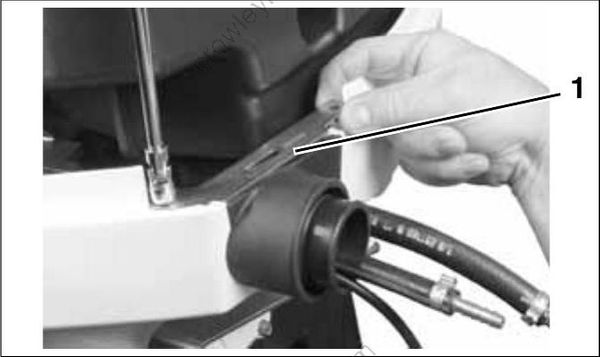

Remove two screws and bracket that fasten the grommet to lower motor cover.

1. Grommet retaining bracket

Route all hoses, control cables, and wiring through a protective sleeve or conduit into the boat and through the grommet.

The fuel hose may be routed through the protective sleeve or through an alternate hole in the lower motor cover grommet.

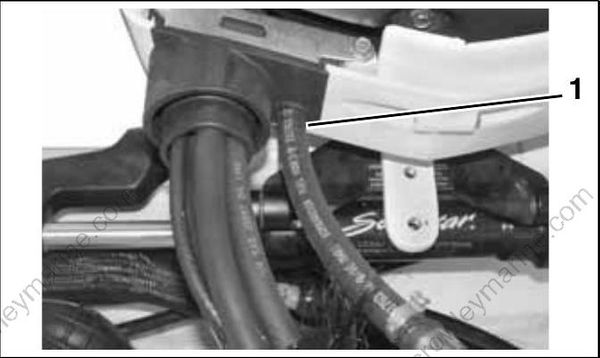

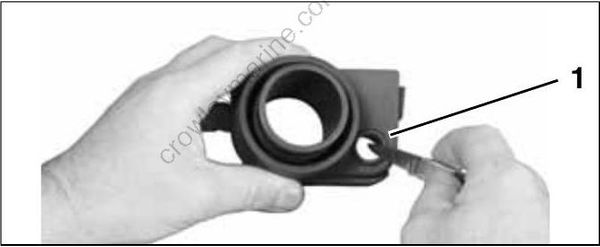

To route the fuel hose outside the sleeve, trim the material covering the alternate fuel hose slot in the grommet.

1. Alternate fuel hose location

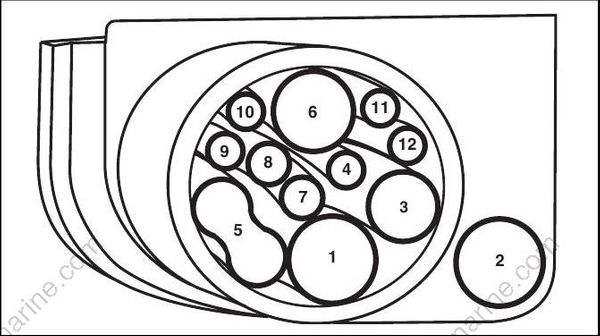

Refer to the following diagram to ensure proper positioning of rigging components in grommet.

1. Fuel supply hose
2. Fuel supply hose--alternate location
3. Oil supply hose
4. Oil tank sending unit harness
5. Battery cables
6. Main wire harness (MWS)
7. Shift cable
8. Throttle cable
9. Accessory charge wires
10. CANbus harness
11. Water pressure hose
12. Speedometer hose

1. Alternate fuel hose location

The main wiring harness, battery cables, oil tank sending unit harness, and any CANbus cables should be routed along the same path to the starboard side of the powerhead. Secure all cables with tie-straps.

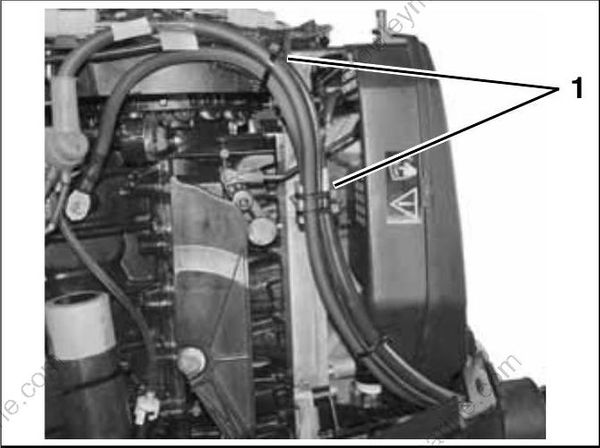

1. Anchor points

IMPORTANT: After installation, make sure there is enough clearance for all cables to avoid binding or chafing through all engine steering and tilting angles.

Refer to Control Cable Identification on p. 44.

Remove remote control cable trunnion covers and cable attachment hardware.

1. Trunnion covers

Cable Retainer Clip Installation

When installing retainer clips on control arm linkage pins, clips should be locked and must not be bent or deformed.

For proper installation, review the following steps:

• Place washer on pin.

• Position retainer clip with straight section on the bottom and angled section on the top.

• Use long nose pliers to insert straight section of clip into linkage pin hole.

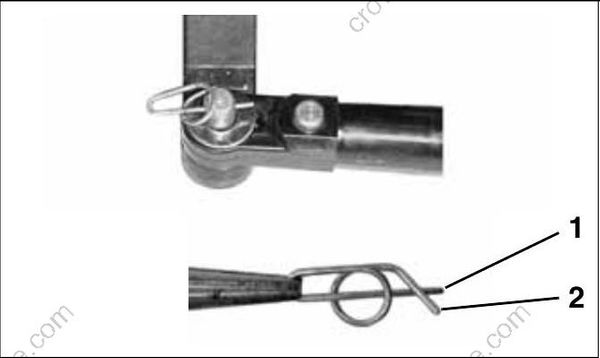

1. Straight section
2. Angled section

• Push the clip towards the hole while lifting on the curved end with the pliers.

• Be sure retainer clip fully engages the pin.

• Lock the retainer by moving the angled section behind the straight section.

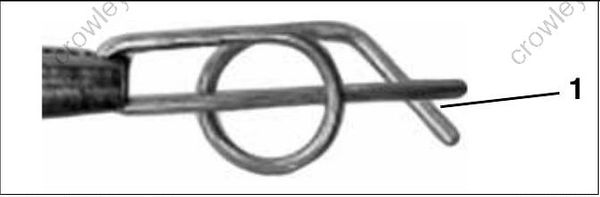

Locked Retainer Clip

1. Angled section behind straight section

Shift Cable Installation and Adjustment

Place the shift cable on the shift lever pin and install the washer and retainer clip.

IMPORTANT: Do not bend or deform clip.

Confirm that the remote control, gearcase, shift linkage, and shift cable are in NEUTRAL. Hold the shift linkage in NEUTRAL.

Push and pull on the shift cable and observe the cable slack. Position the casing guide in the center of the slack.

Adjust shift cable trunnion to align with center of the trunnion block. Place cable trunnion in trunnion block.

Install trunnion cover and screw. Tighten retaining screw to a torque of 60 to 80 in. lbs. (7 to 9 N·m).

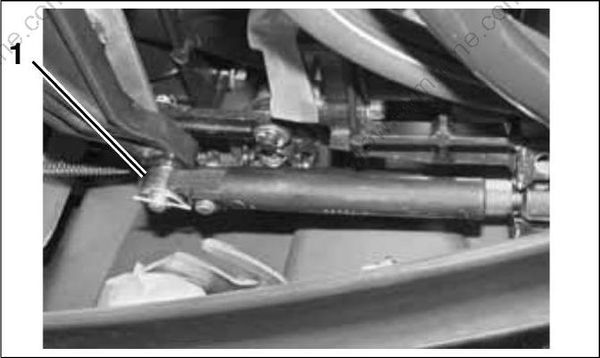

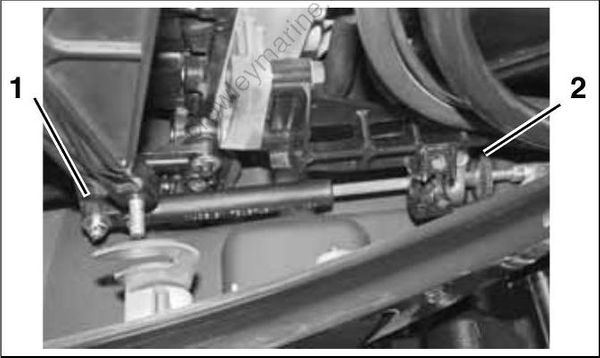

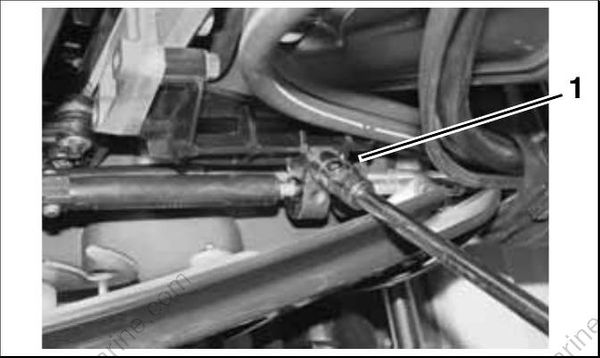

1. Shift cable retainer clip and washer
2. Shift cable trunnion

Throttle Cable Installation and Adjustment

With remote control lever in NEUTRAL, pull firmly on firmly on throttle cable casing to remove slack.

Place throttle cable on throttle lever pin and install washer and retainer clip.

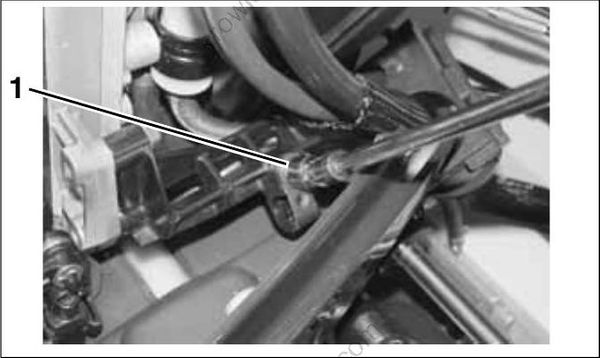

1. Throttle cable retainer clip and washer

Make sure that idle stop of the throttle lever is against the crankcase.

1. Throttle linkage, idle stop against crankcase

Adjust the throttle cable trunnion to align with the trunnion block. Place the cable trunnion in the trunnion block.

IMPORTANT: Move control handle to FOR WARD and pull back slowly to NEUTRAL. Make sure the engine throttle lever is against the stop. If not, remove slack by adjusting cable trunnion.

Install the trunnion cover and screw. Tighten the retaining screw to a torque of 60 to 80 in. lbs. (7 to 9 N·m).

1. Trunnion cover and screw, throttle cable

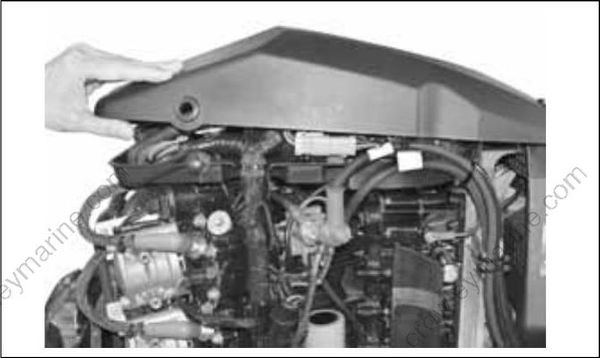

Remove flywheel/harness connector cover.

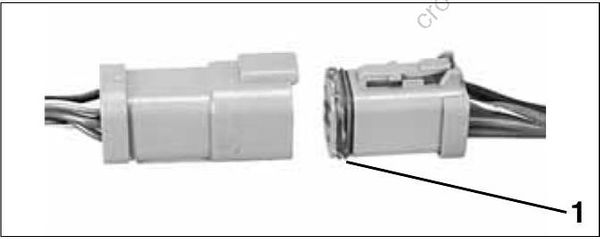

Before installing electrical connectors, check that the seal is in place. Clean off any dirt from connectors. Apply a light coat of Electrical Grease™ to the seal.

1. Seal

Connect outboard main wire harness to boat wire harness. Secure connectors in brackets.

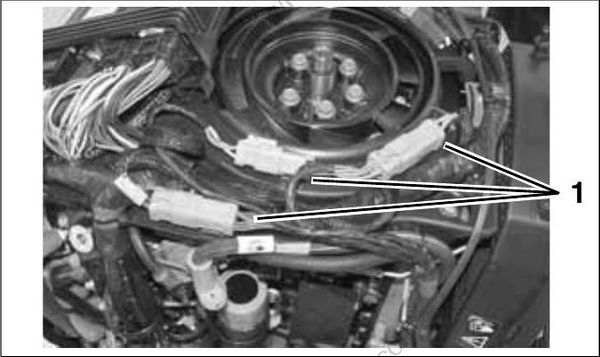

1. Harness connections

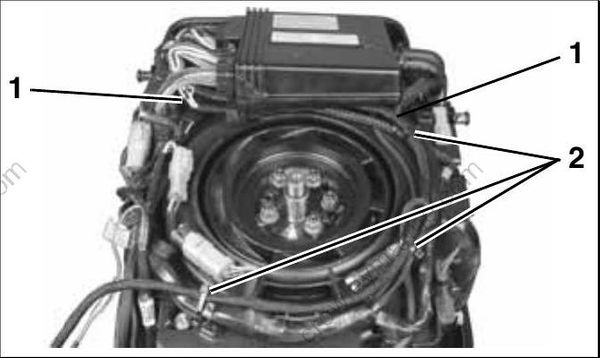

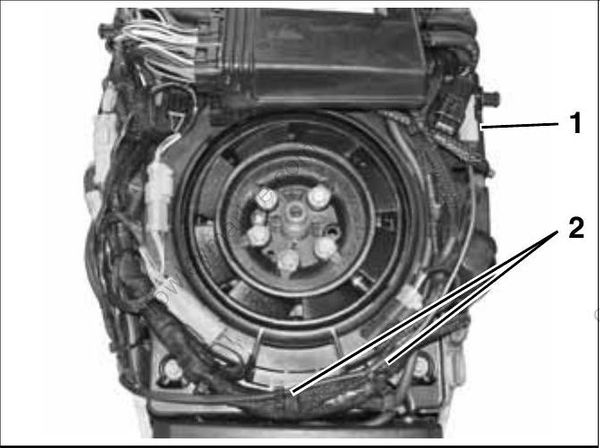

Route oil tank sending unit harness around the front to the port side. Secure all cables with tie straps.

1. Low oil sender connection
2. Tie straps

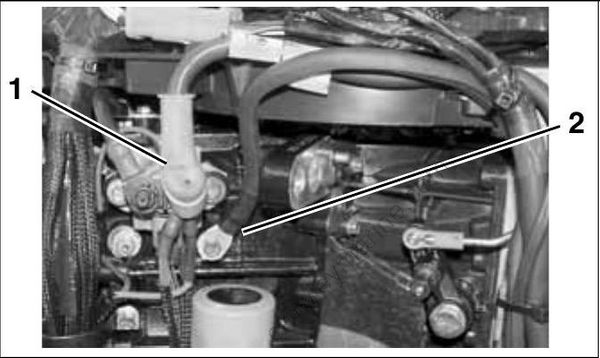

Install battery cables on starter solenoid and main ground stud.

1. Positive (+) battery connection
2. Ground (–) connection

IMPORTANT: BE SURE all harnesses and wires are not pinched, cannot contact flywheel, and do not interfere with moving throttle or shift linkages.

Replace flywheel/harness connector cover.

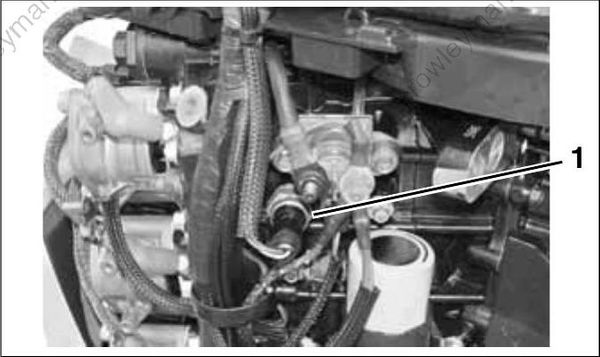

If a mechanical water pressure gauge is used, install the water pressure hose fitting in the cylinder block. Use Pipe Sealant with Teflon, P/N 910048, on the threads of the hose fitting. Refer to installation instructions supplied with gauge.

Route the water pressure hose around the star board side of the powerhead along the same path as the battery cables.

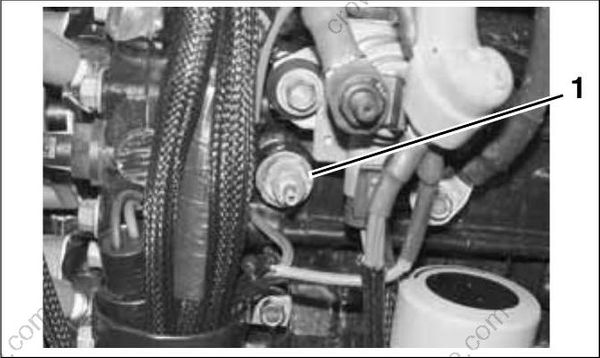

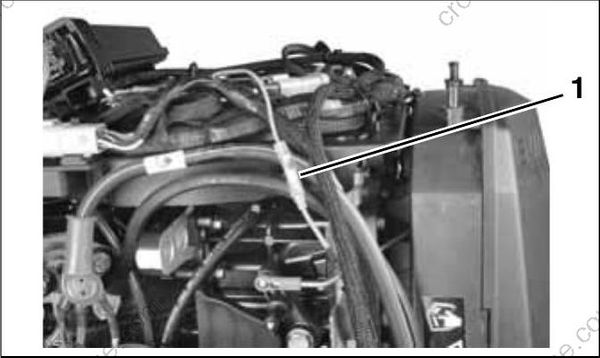

1. Water pressure hose fitting

If the outboard will be used with I-Command, or other NMEA 2000 compliant CANbus instruments, the following connections will supply information to the network.

Connect the EMM CANbus connector to the CAN bus Network Harness.

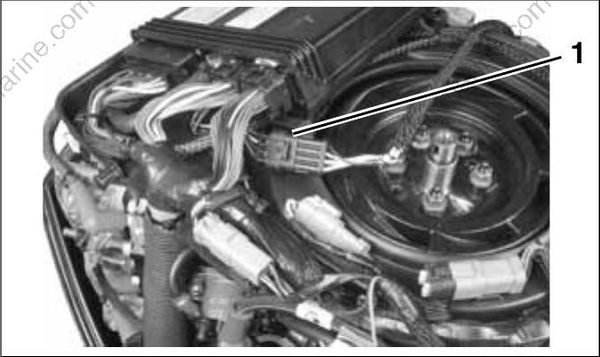

1. EMM CANbus connector

Route the harness under the front of the EMM and around the port side of the powerhead. Secure with tie straps.

1. Harness routing
2. Tie straps

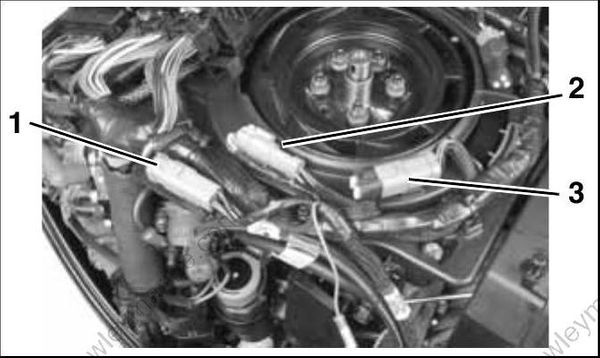

Use a CANbus Ignition Harness, in place of the standard MWS harness, to connect the outboard to the key switch and trim/tilt control. Seal unused SystemCheck connector with 6-Pin Connector Seal, P/N 586076.

1. CANbus Ignition connector
2. Trim/Tilt connector
3. SystemCheck connector (with seal)

If installing a Deutsch-style I-Command network, connect the purple wire from the CANbus Ignition Harness to the CANbus network harness. This connection supplies power to the network when the key switch is on. Quick Connect-style network does NOT use this connection.

1. CANbus power supply connector

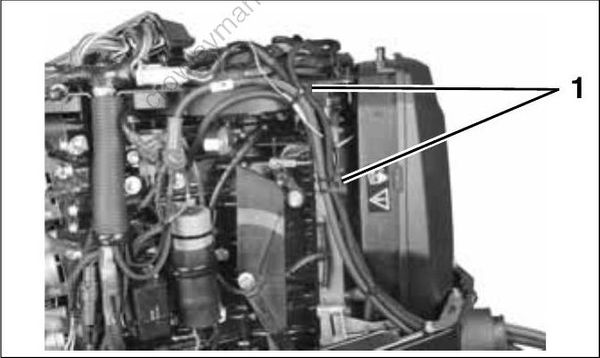

Secure all cables with tie-straps.

1. Anchor points

If a CANbus water pressure gauge is used, install Water Pressure Transducer Kit, P/N 5006214, in the cylinder block.

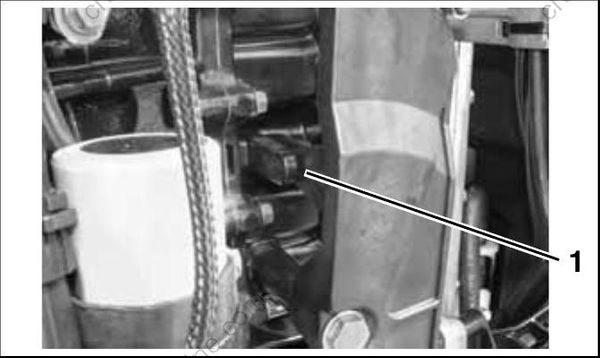

1. Water pressure transducer

Install the transducer lead in the engine wiring harness connector.

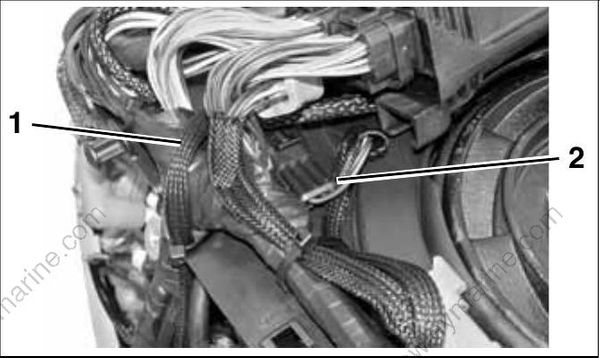

1. Water pressure transducer lead
2. Engine harness connector

If a CANbus oil level gauge is used, an optional CANbus oil level sender must be installed in the oil tank. Connect the oil level sensor harness to the boat CANbus network.

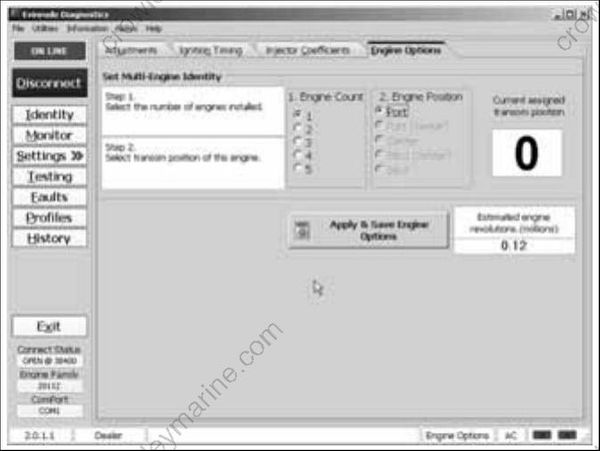

Use Evinrude Diagnostics software to activate CANbus control functions in the EMM. From the Settings screen, select Engine Options.

Engine Options Screen
